CPLDs (Complex Programmable Logic Devices)(4119)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATF750C-10SUIC CPLD 10MC 10NS 24SOIC |
0 |
|
Datasheet
|
ATF750C(L) | 24-SOIC (0.295", 7.50mm Width) | Tube | Active | Verified | EE PLD | 10 ns | 4.5V ~ 5.5V | - | 10 | - | 10 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-SOIC |
|
XC9536XL-10VQ44CIC CPLD 36MC 10NS 44VQFP |
0 |
|
Datasheet
|
XC9500XL | 44-TQFP | Tray | Obsolete | Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 3V ~ 3.6V | 2 | 36 | 800 | 34 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-VQFP (10x10) |
.jpg)
|
XCR3064XL-7PC44CIC CPLD 64MC 7NS 44PLCC |
0 |
|
Datasheet
|
CoolRunner XPLA3 | 44-LCC (J-Lead) | Tube | Obsolete | Not Verified | In System Programmable (min 1K program/erase cycles) | 7 ns | 3V ~ 3.6V | 4 | 64 | 1500 | 36 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-PLCC (16.59x16.59) |
|
XC9536XL-10VQG64CIC CPLD 36MC 10NS 64VQFP |
0 |
|
Datasheet
|
XC9500XL | 64-TQFP | Tray | Obsolete | Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 3V ~ 3.6V | 2 | 36 | 800 | 36 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 64-VQFP (10x10) |
|
ATF1504ASVL-20AU100IC CPLD 64MC 20NS 100TQFP |
0 |
|
Datasheet
|
ATF15xx | 100-TQFP | Tray | Active | Not Verified | In System Programmable (min 10K program/erase cycles) | 20 ns | 3V ~ 3.6V | - | 64 | - | 64 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
LC4064ZE-4TN48CIC CPLD 64MC 4.7NS 48TQFP |
0 |
|
Datasheet
|
ispMACH® 4000ZE | 48-LQFP | Tray | Active | Not Verified | In System Programmable | 4.7 ns | 1.7V ~ 1.9V | 4 | 64 | - | 32 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 48-TQFP (7x7) |
|
ATF1508AS-15JC84IC CPLD 128MC 15NS 84PLCC |
0 |
|
Datasheet
|
ATF15xx | 84-LCC (J-Lead) | Tube | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 15 ns | 4.75V ~ 5.25V | - | 128 | - | 64 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 84-PLCC (29.31x29.31) |
|
CY37064P44-125ACIC CPLD 64MC 10NS 44TQFP |
0 |
|
Datasheet
|
Ultra37000™ | 44-LQFP | Bag | Obsolete | Not Verified | In-System Reprogrammable™ (ISR™) CMOS | 10 ns | 4.75V ~ 5.25V | - | 64 | - | 37 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-TQFP (10x10) |
|

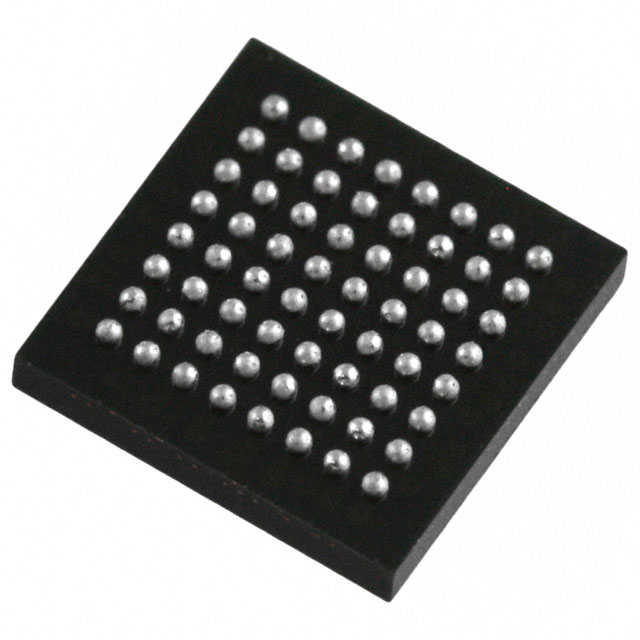

LC4064ZE-5UMN64CIC CPLD 64MC 5.8NS 64UCBGA |
0 |
|
Datasheet
|
ispMACH® 4000ZE | 64-VFBGA, CSPBGA | Tray | Not For New Designs | Not Verified | In System Programmable | 5.8 ns | 1.7V ~ 1.9V | 4 | 64 | - | 48 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 64-UCBGA (4x4) |
|
LC4064ZE-7UMN64IIC CPLD 64MC 7.5NS 64UCBGA |
0 |
|
Datasheet
|
ispMACH® 4000ZE | 64-VFBGA, CSPBGA | Tray | Not For New Designs | Not Verified | In System Programmable | 7.5 ns | 1.7V ~ 1.9V | 4 | 64 | - | 48 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 64-UCBGA (4x4) |
|
|
XC9536XL-7VQ44CIC CPLD 36MC 7.5NS 44VQFP |
0 |
|
Datasheet
|
XC9500XL | 44-TQFP | Tray | Obsolete | Verified | In System Programmable (min 10K program/erase cycles) | 7.5 ns | 3V ~ 3.6V | 2 | 36 | 800 | 34 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-VQFP (10x10) |
|

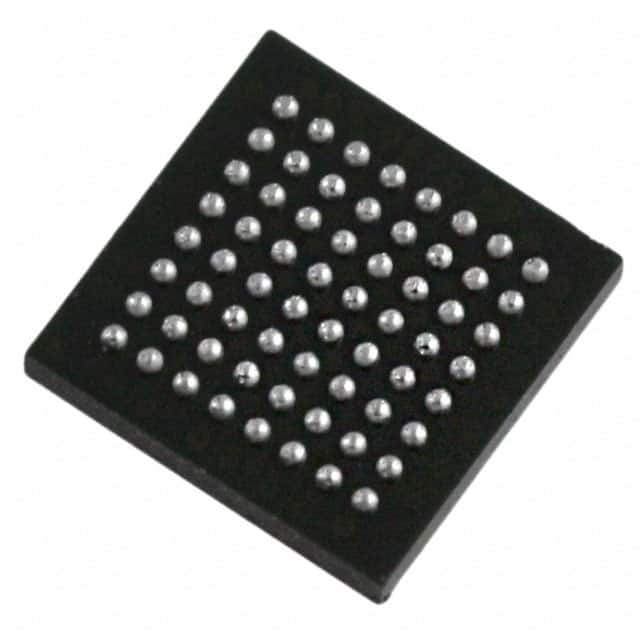

LC4064ZE-5MN64CIC CPLD 64MC 5.8NS 64CSBGA |
0 |
|
Datasheet
|
ispMACH® 4000ZE | 64-TFBGA, CSPBGA | Tray | Active | Not Verified | In System Programmable | 5.8 ns | 1.7V ~ 1.9V | 4 | 64 | - | 48 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 64-CSBGA (5x5) |
|
|
LC4032V-75TN48EIC CPLD 32MC 7.5NS 48TQFP |
0 |
|
Datasheet
|
ispMACH® 4000V | 48-LQFP | Tray | Active | Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 2 | 32 | - | 32 | -40°C ~ 130°C (TJ) | - | - | Surface Mount | 48-TQFP (7x7) |
|
M4A3-32/32-5VNCIC CPLD 32MC 5NS 44TQFP |
0 |
|
Datasheet
|
ispMACH® 4A | 44-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 5 ns | 3V ~ 3.6V | - | 32 | - | 32 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-TQFP (10x10) |
|
|
M4A3-32/32-7VNIIC CPLD 32MC 7.5NS 44TQFP |
0 |
|
Datasheet
|
ispMACH® 4A | 44-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | - | 32 | - | 32 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-TQFP (10x10) |
|
|
M4A3-64/32-12VNIIC CPLD 64MC 12NS 44TQFP |
0 |
|
Datasheet
|
ispMACH® 4A | 44-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 12 ns | 3V ~ 3.6V | - | 64 | - | 32 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-TQFP (10x10) |
|
|
XC9536XL-10VQ64CIC CPLD 36MC 10NS 64VQFP |
0 |
|
Datasheet
|
XC9500XL | 64-TQFP | Tray | Obsolete | Verified | In System Programmable (min 10K program/erase cycles) | 10 ns | 3V ~ 3.6V | 2 | 36 | 800 | 36 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 64-VQFP (10x10) |
|
|
XC2C32A-4VQG44CIC CPLD 32MC 3.8NS 44VQFP |
2 |
|
Datasheet
|
CoolRunner II | 44-TQFP | Tray | Obsolete | Verified | In System Programmable | 3.8 ns | 1.7V ~ 1.9V | 2 | 32 | 750 | 33 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-VQFP (10x10) |
|
|
LC4064ZE-4UMN64CIC CPLD 64MC 4.7NS 64UCBGA |
0 |
|
Datasheet
|
ispMACH® 4000ZE | 64-VFBGA, CSPBGA | Tray | Not For New Designs | Not Verified | In System Programmable | 4.7 ns | 1.7V ~ 1.9V | 4 | 64 | - | 48 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 64-UCBGA (4x4) |
|
|
LC4064ZE-5UMN64IIC CPLD 64MC 5.8NS 64UCBGA |
0 |
|
Datasheet
|
ispMACH® 4000ZE | 64-VFBGA, CSPBGA | Tray | Not For New Designs | Not Verified | In System Programmable | 5.8 ns | 1.7V ~ 1.9V | 4 | 64 | - | 48 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 64-UCBGA (4x4) |
