Encoders(14132)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEC12R-4225F-S0024ROTARY ENCODER MECHANICAL 24PPR |
5,999 |
|
Datasheet
|
PEC12R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC12R-4220F-S0024ROTARY ENCODER MECHANICAL 24PPR |
767 |
|
Datasheet
|
PEC12R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC16-4220F-S0024ROTARY ENCODER MECHANICAL 24PPR |
5,973 |
|
Datasheet
|
PEC16 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
PEC11R-4220K-S0024ROTARY ENCODER INCREMENTAL 24PPR |
3,384 |
|
Datasheet
|
PEC11R | Tray | Active | Not Verified | Incremental | Quadrature, 2-Bit | 24 | - | 6mm Dia Knurled End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC11R-4115F-S0018ROTARY ENCODER MECHANICAL 18PPR |
3,282 |
|
Datasheet
|
PEC11R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 18 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC11R-4215K-S0024ROTARY ENCODER MECHANICAL 24PPR |
2,238 |
|
Datasheet
|
PEC11R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Knurled End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC11R-4215F-S0024ROTARY ENCODER MECHANICAL 24PPR |
1,250 |
|
Datasheet
|
PEC11R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
EN11-HSM1BF20ROTARY ENCODER MECHANICAL 20PPR |
9,807 |
|
Datasheet
|
EN11 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 20 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
EN11-HSM1AF15ROTARY ENCODER MECHANICAL 20PPR |
5,878 |
|
Datasheet
|
EN11 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 20 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC11L-4120F-S0020ROTARY ENCODER MECHANICAL 20PPR |
2,846 |
|
Datasheet
|
PEC11 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 20 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|

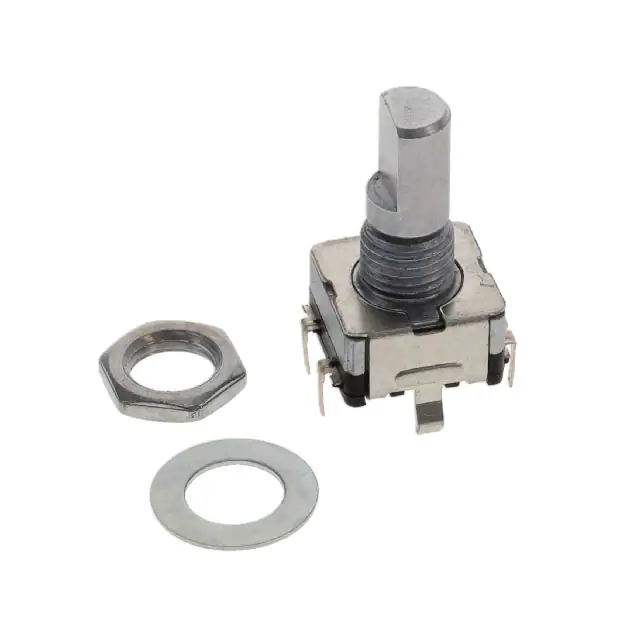

PEC11H-4015F-S0016ROTARY ENCODER WITH BALL/SPRING |
2,947 |
|
Datasheet
|
PEC11H | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|

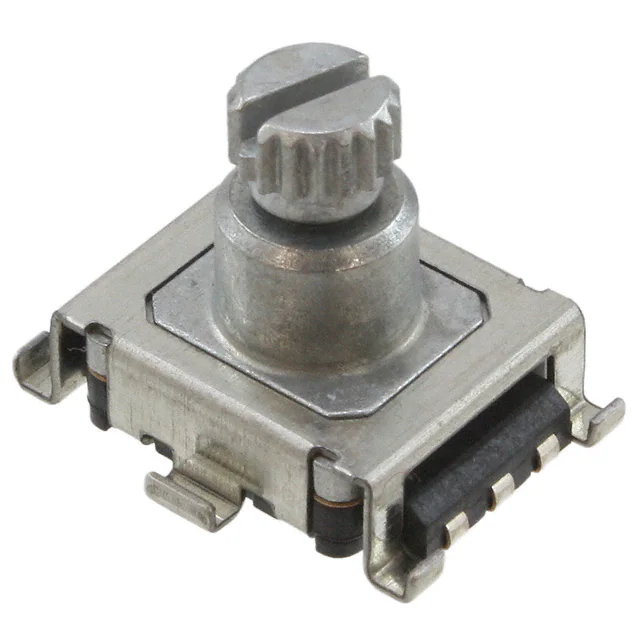

PEC11S-929K-S0015ROTARY ENCODER MECHANICAL 15PPR |
5,163 |
|
Datasheet
|
PEC11S | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 6mm Dia Knurled End | Yes | Yes | Surface Mount | Vertical | SMD (SMT) Tab | 15K | - | - |
|

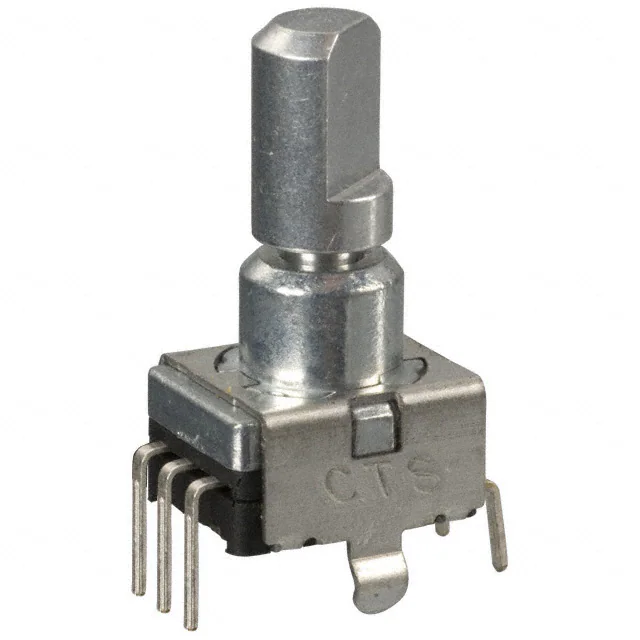

290VAA5F201B2ROTARY ENCODER MECHANICAL 20PPR |
175 |
|
Datasheet
|
290 | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 20 | - | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 50K | - | - |
|

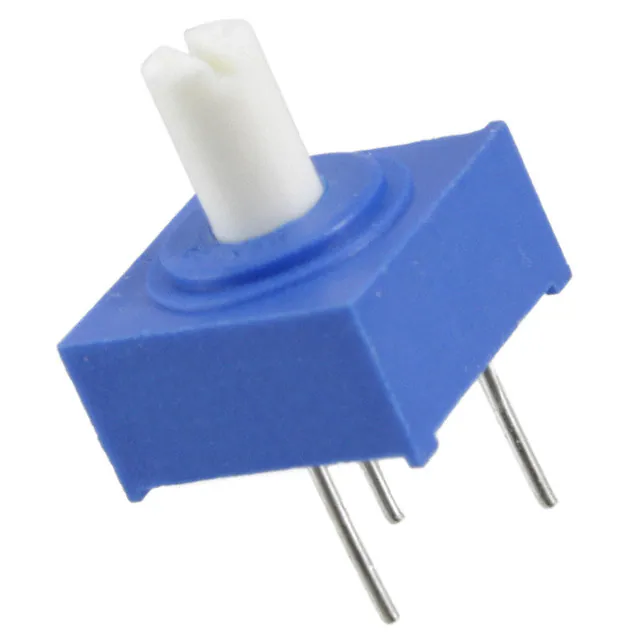

3315Y-025-016LROTARY ENCODER MECHANICAL 16PPR |
14,269 |
|
Datasheet
|
3315 | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 1/8" Dia Slotted End | No | No | PCB, Through Hole | Vertical | PC Pin | 25K | - | - |
|

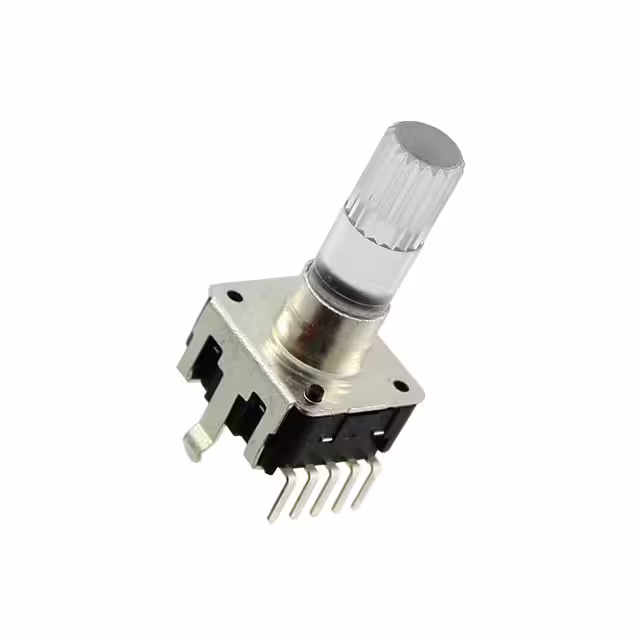

PEL12T-4225S-S1024ROTARY ENCODER MECHANICAL 24PPR |
10,240 |
|
Datasheet
|
PEL12T | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Knurled End, Illuminated | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
AS5047D-ATSM TSSOP14 LF T&RDPROTARY ENCODER MAGNETIC PROG |
5,629 |
|
Datasheet
|
- | Tape & Reel (TR) | Active | Not Verified | Magnetic | PWM | Programmable | 3V ~ 3.6V, 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
|
AS5147-HTSMROTARY ENCODER MAGNETIC PROG |
420 |
|
Datasheet
|
- | Tape & Reel (TR) | Active | Not Verified | Magnetic | Commutation, PWM, SPI, Quadrature with index (Incremental) | Programmable | 3V ~ 3.6V, 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | Automotive | AEC-Q100 |
|
|
AS5047P-ATSM TSSOP14 LF T&RDPROTARY ENCODER MAGNETIC PROG |
6,312 |
|
Datasheet
|
- | Tape & Reel (TR) | Active | Not Verified | Magnetic | PWM | Programmable | 3V ~ 3.6V, 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
|
AS5147P-HTSMROTARY ENCODER MAGNETIC PROG |
636 |
|
Datasheet
|
- | Tape & Reel (TR) | Active | Not Verified | Magnetic | Commutation, PWM, SPI, Quadrature with index (Incremental) | Programmable | 3V ~ 3.6V, 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | Automotive | AEC-Q100 |
.jpg)
|
AS5304A-ATSMROTARY ENCODER MAGNETIC 1280PPR |
1,332 |
|
Datasheet
|
- | Tape & Reel (TR) | Not For New Designs | Not Verified | Magnetic | Quadrature (Incremental) | 1280 | 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
