Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|

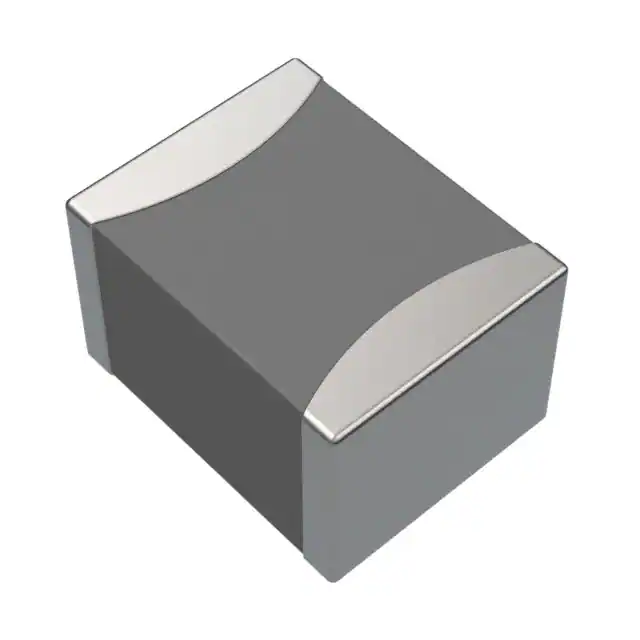

DFE322512F-100M=P2FIXED IND 10UH 1.1A 324MOHM SMD Murata Electronics |
6,652 |
|
Datasheet
|
DFE322512F | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 1.1 A | 1.7A | Shielded | 324mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
1217AS-H-150M=P3FIXED IND 15UH 3.5A 52.8MOHM SMD Murata Electronics |
3,459 |
|
Datasheet
|
DEM8045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.5 A | 3.3A | Shielded | 52.8mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
|
DFE322520FD-1R0M=P2FIXED IND 1UH 4.1A 22 MOHM SMD Murata Electronics |
12,392 |
|
Datasheet
|
DFE322520FD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 4.1 A | 7.5A | Shielded | 22mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.079" (2.00mm) |
|
|
DFE322520FD-4R7M=P2FIXED IND 4.7UH 2A 98 MOHM SMD Murata Electronics |
11,170 |
|
Datasheet
|
DFE322520FD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 2 A | 3.4A | Shielded | 98mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.079" (2.00mm) |
|

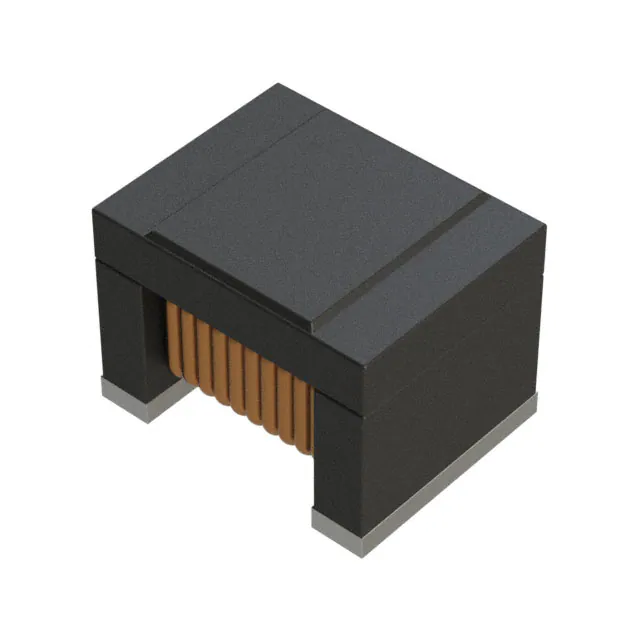

LQW32FT220M0HLFIXED IND 22UH 110MA 620MOHM SMD Murata Electronics |
897 |
|
Datasheet
|
LQW32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 110 mA | 400mA | Shielded | 620mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" (2.50mm) |
|

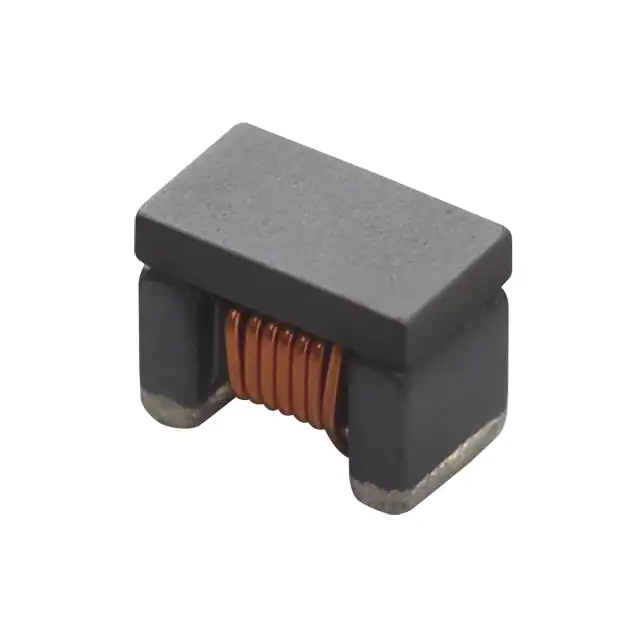

LQW21FTR82M0HLFIXED IND 0.82UH 800MA POWRTRN Murata Electronics |
2,422 |
|
Datasheet
|
LQW21 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 nH | ±20% | 700 mA | 800mA | Shielded | 90mOhm Max | - | 360MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.071" (1.80mm) |
|
LQW15DN100M00DFIXED IND 10UH 120MA 5.405OHM SM Murata Electronics |
10,460 |
|
Datasheet
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 120 mA | 120mA | Shielded | 5.405Ohm Max | - | 20MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0402 | 0.043" L x 0.026" W (1.10mm x 0.65mm) | 0.028" (0.70mm) |
.jpg)
|
LQP03TN5N1H02DFIXED IND 5.1NH 350MA 400MOHM SM Murata Electronics |
533,301 |
|
Datasheet
|
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 5.1 nH | ±3% | 350 mA | - | Unshielded | 400mOhm Max | 14 @ 500MHz | 4.2GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
LQP03TN1N0B02DFIXED IND 1NH 750MA 100 MOHM SMD Murata Electronics |
508,963 |
|
Datasheet
|
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 1 nH | ±0.1nH | 750 mA | - | Unshielded | 100mOhm Max | 14 @ 500MHz | 17GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
LQP03TN5N6H02DFIXED IND 5.6NH 350MA 400MOHM SM Murata Electronics |
398,095 |
|
Datasheet
|
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 5.6 nH | ±3% | 350 mA | - | Unshielded | 400mOhm Max | 14 @ 500MHz | 4GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
