Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XFHCL1510-330MFIXED IND 33UH 18.7A 20.0 MOHM S XFMRS |
150 |
|
Datasheet
|
XFHCL1510 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 9 A | 18.7A | Unshielded | 20mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.650" W (17.50mm x 16.50mm) | 0.394" (10.00mm) |
|
|
XFHCL1510-8R2MFIXED IND 8.2UH 32A 7.20 MOHM SM XFMRS |
150 |
|
Datasheet
|
XFHCL1510 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±20% | 19 A | 32A | Unshielded | 7.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.650" W (17.50mm x 16.50mm) | 0.394" (10.00mm) |
|
|
XFHCL1510-6R8MFIXED IND 6.8UH 36A 4.6 MOHM SMD XFMRS |
150 |
|
Datasheet
|
XFHCL1510 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 20 A | 36A | Unshielded | 4.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.650" W (17.50mm x 16.50mm) | 0.394" (10.00mm) |
|
|
XFHCL1510-220MFIXED IND 22UH 20A 15.8 MOHM SMD XFMRS |
150 |
|
Datasheet
|
XFHCL1510 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 11 A | 20A | Unshielded | 15.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.650" W (17.50mm x 16.50mm) | 0.394" (10.00mm) |
|
|
XFHCL1510-150MFIXED IND 15UH 23A 11.0 MOHM SMD XFMRS |
150 |
|
Datasheet
|
XFHCL1510 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 14 A | 23A | Unshielded | 11mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.650" W (17.50mm x 16.50mm) | 0.394" (10.00mm) |
|
|
XFHCL1510-4R7MFIXED IND 4.7UH 43A 3.8 MOHM SMD XFMRS |
150 |
|
Datasheet
|
XFHCL1510 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 22 A | 43A | Unshielded | 3.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.650" W (17.50mm x 16.50mm) | 0.394" (10.00mm) |
|

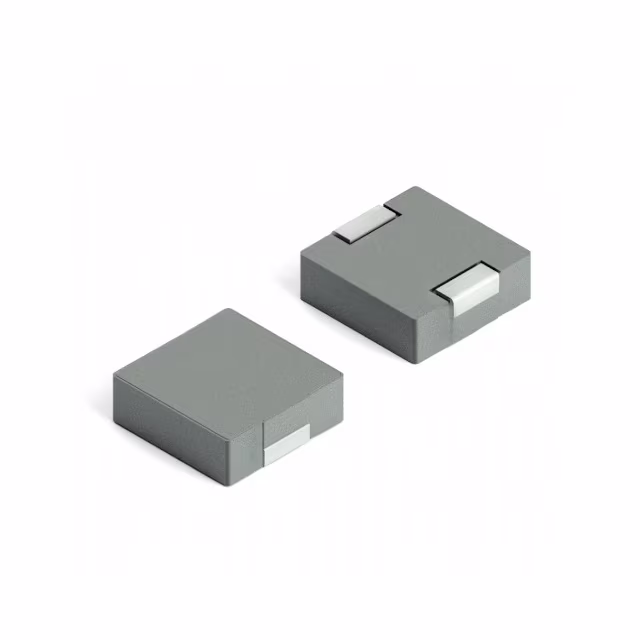

XFHCL6-8R2MFIXED IND 8.2UH 4A 68 MOHM SMD XFMRS |
1,000 |
|
Datasheet
|
XFHCL6 | - | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±20% | 4 A | 7.5A | Shielded | 68mOhm Max | - | 17MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
XFHCL6-R33MFIXED IND 330NH 20A 3.9 MOHM SMD XFMRS |
1,000 |
|
Datasheet
|
XFHCL6 | - | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 20 A | 30A | Shielded | 3.9mOhm Max | - | 100MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
XFTPRH4018-102MFIXED IND 1000UH 0.13A 18.24 OHM XFMRS |
1,000 |
|
- |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 130 mA | - | Shielded | 15.2Ohm Max | - | - | - | -40°C ~ 105°C | - | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.071" (1.80mm) |
|
|
XFHCL6MD-150MFIXED IND 15UH 6A 0.04375 OHM SM XFMRS |
800 |
|
- |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 6 A | 5.8A | Shielded | 43.75mOhm Max | 8 @ 100kHz | 15MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.260" (6.60mm) |
