Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

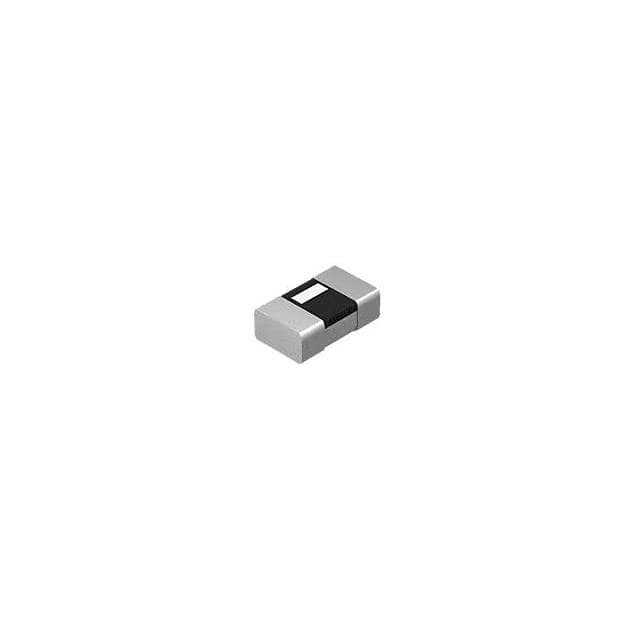

CTTF0402F-1N8BFIXED IND 1.8NH0.1NH SMD Central Technologies |
80,195 |
|
Datasheet
|
CTTF0402F | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 1.8 nH | ±0.1nH | 560 mA | - | Unshielded | 200mOhm Max | 13 @ 500MHz | 6GHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) |
|
|
CTTF0402F-4N7BFIXED IND 4.7NH0.1NH SMD Central Technologies |
19,840 |
|
Datasheet
|
CTTF0402F | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 4.7 nH | ±0.1nH | 320 mA | - | Unshielded | 600mOhm Max | 13 @ 500MHz | 6GHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) |
|
|
CTTF0402F-2N2CFIXED IND 2.2NH0.2NH SMD Central Technologies |
9,493 |
|
Datasheet
|
CTTF0402F | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 2.2 nH | ±0.2nH | 440 mA | - | Unshielded | 300mOhm Max | 13 @ 500MHz | 6GHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) |
|
|
CTTF0402F-9N1B9.1NH SMD THIN FILM CHIP INDUCTR Central Technologies |
9,000 |
|
Datasheet
|
CTTF0402F | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 9.1 nH | ±0.1nH | 220 mA | - | Unshielded | 1.1Ohm Max | 13 @ 500MHz | 5.5GHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) |
|
CTTF0603F-1N2CTHIN FILM CHIP INDUCTOR Central Technologies |
4,980 |
|
- |
CTTF0603F | 0603 (1608 Metric) | Bulk | Obsolete | Thin Film | - | 1.2 µH | ±0.2nH | 800 mA | - | Unshielded | 200mOhm Max | 17 @ 300MHz | 6GHz | - | -40°C ~ 85°C | 300 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|
CTTF0603F-2N2CTHIN FILM CHIP INDUCTOR Central Technologies |
4,980 |
|
- |
CTTF0603F | 0603 (1608 Metric) | Bulk | Obsolete | Thin Film | - | 2.2 µH | ±0.2nH | 300 mA | - | Unshielded | 200mOhm Max | 17 @ 300MHz | 6GHz | - | -40°C ~ 85°C | 300 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|

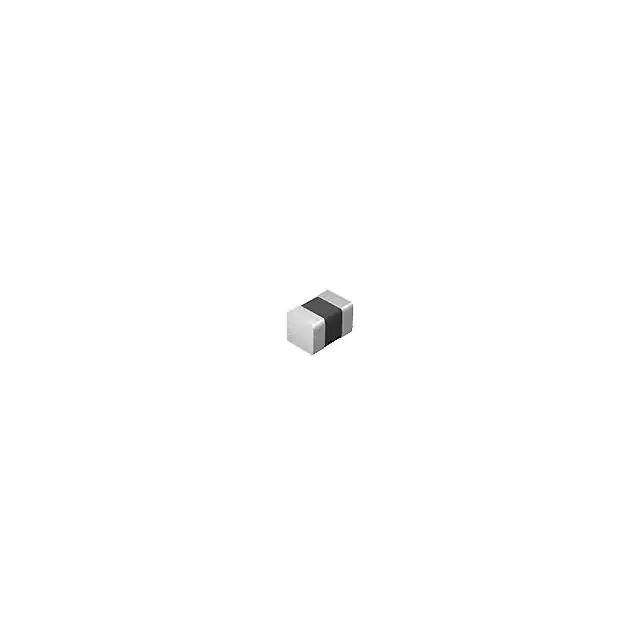

CTML0603F-5R6K5.6 FER MULTIL SHLD INDUCTOR Central Technologies |
27,705 |
|
Datasheet
|
CTML0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 5.6 µH | ±10% | 5 mA | - | Shielded | 1.5Ohm Max | 35 @ 4MHz | 22MHz | - | -55°C ~ 125°C | 4 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
CTML0603F-R047JSMD FERRITE CORE MULTIL INDUCTOR Central Technologies |
15,990 |
|
Datasheet
|
CTML0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 47 nH | ±5% | 50 mA | - | Shielded | 300mOhm Max | 10 @ 50MHz | 260MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
CTML0603F-2R2K2.2UH FER MULTIL SHLD INDUCTOR Central Technologies |
8,000 |
|
Datasheet
|
CTML0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±10% | 15 mA | - | Shielded | 1.1Ohm Max | 35 @ 10MHz | 50MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
CTML0603F-1R2JSMD FERRITE CORE MULTIL INDUCTOR Central Technologies |
7,900 |
|
Datasheet
|
CTML0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.2 µH | ±5% | 25 mA | - | Shielded | 800mOhm Max | 35 @ 10MHz | 65MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
