Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

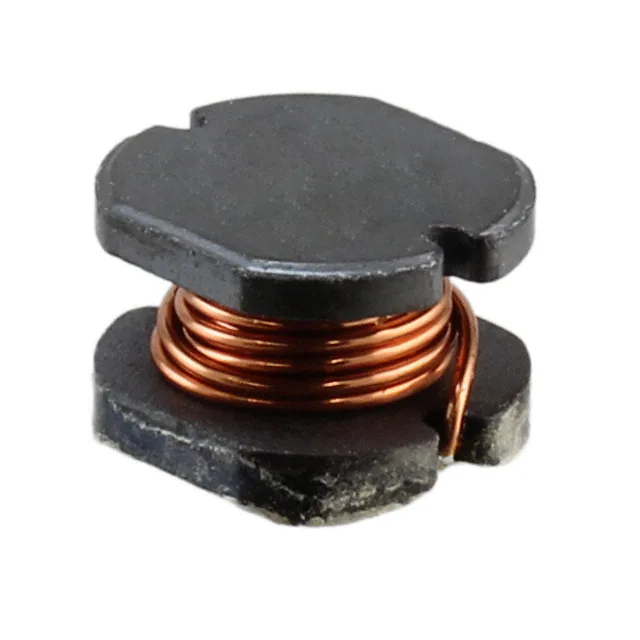

CD75NP-150KCFIXED IND 15UH 1.8A 90 MOHM SMD |
1,575 |
|
Datasheet
|
CD75 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±10% | 1.8 A | - | Unshielded | 90mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
0518CDMCCDS-R68MCFIXED IND 680NH 9.5A 12.1MOHM SM |
1,496 |
|
Datasheet
|
0518CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 680 nH | ±20% | 9.5 A | 11.5A | Shielded | 12.1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.071" (1.80mm) |
|
ASPI-2510-100M-T2FIXED IND 10UH 550MA 712MOHM SMD |
1,485 |
|
Datasheet
|
ASPI-2510 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 550 mA | 560mA | Shielded | 712mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2510 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
SRU6025-4R7YFIXED IND 4.7UH 2.7A 35 MOHM SMD |
1,200 |
|
Datasheet
|
SRU6025 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 2.7 A | 1.55A | Shielded | 35mOhm Max | 8 @ 7.96MHz | 42MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.110" (2.80mm) |
|

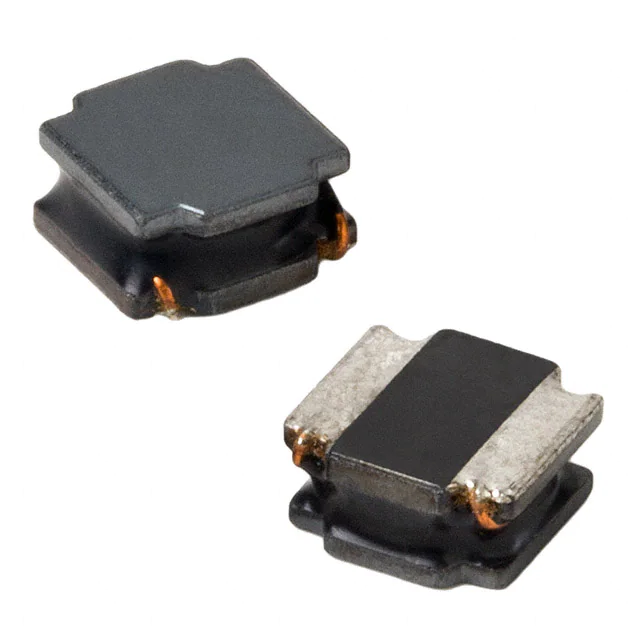

ASPI-3012S-150M-TFIXED IND 15UH 710MA 360MOHM SMD |
1,025 |
|
Datasheet
|
ASPI-3012S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 710 mA | 450mA | Shielded | 360mOhm | - | 27MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.055" (1.40mm) |
|

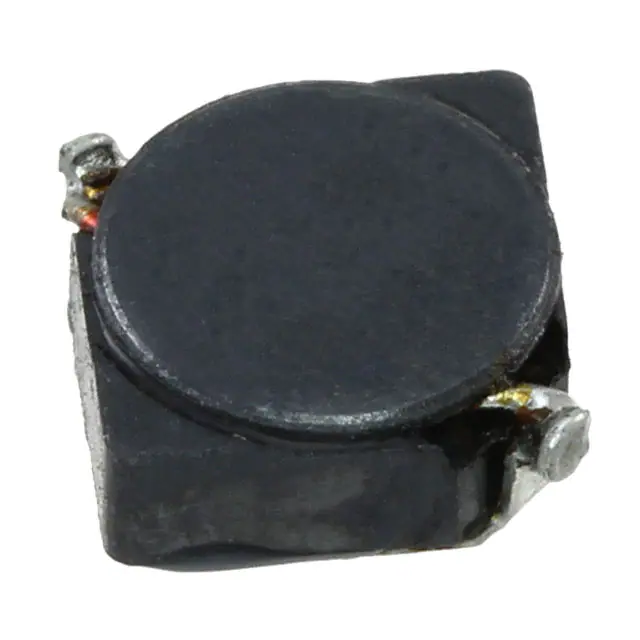

PF0464.302NLFIXED IND 3UH 4.25A 22 MOHM SMD |
2,370 |
|
Datasheet
|
PF0464NL | Nonstandard | Tray | Active | - | - | 3 µH | ±20% | 4.25 A | 3A | Shielded | 22mOhm Max | - | 40MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.118" (3.00mm) |
|

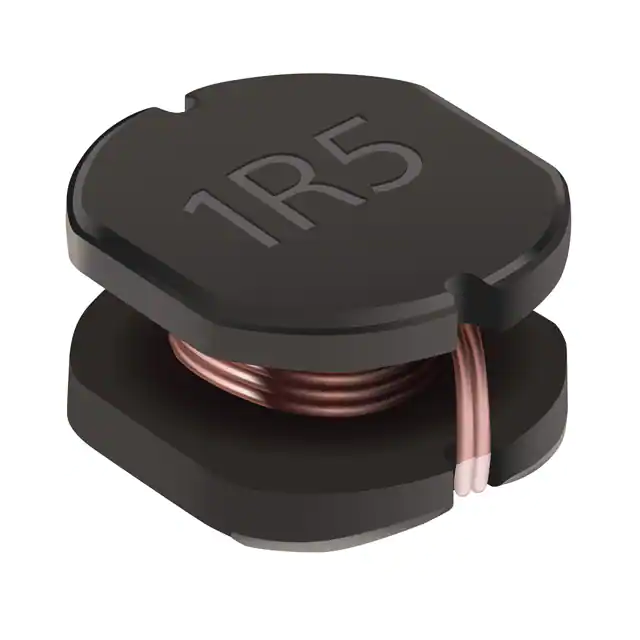

SDE1006A-680KFIXED IND 68UH 1.6A 220 MOHM SMD |
5,600 |
|
Datasheet
|
SDE1006A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 1.6 A | 1.7A | Unshielded | 220mOhm Max | - | 9.4MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
SDE1006A-8R2MFIXED IND 8.2UH 4.1A 48 MOHM SMD |
19 |
|
Datasheet
|
SDE1006A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 4.1 A | 4.3A | Unshielded | 48mOhm Max | - | 27.9MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
SDE1006A-681KFIXED IND 680UH 500MA 2.25OHM SM |
4,245 |
|
Datasheet
|
SDE1006A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 500 mA | 550mA | Unshielded | 2.25Ohm Max | - | 2.8MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
SDE1006A-560KFIXED IND 56UH 1.7A 190 MOHM SMD |
3,977 |
|
Datasheet
|
SDE1006A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 1.7 A | 1.8A | Unshielded | 190mOhm Max | - | 10.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
SDE1006A-150MFIXED IND 15UH 3.4A 80 MOHM SMD |
3,157 |
|
Datasheet
|
SDE1006A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.4 A | 3.6A | Unshielded | 80mOhm Max | - | 19.8MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
SDE1006A-821KFIXED IND 820UH 450MA 2.55OHM SM |
3,009 |
|
Datasheet
|
SDE1006A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 450 mA | 500mA | Unshielded | 2.55Ohm Max | - | 2.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
SDE1006A-100MFIXED IND 10UH 3.8A 60 MOHM SMD |
2,665 |
|
Datasheet
|
SDE1006A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.8 A | 4A | Unshielded | 60mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|

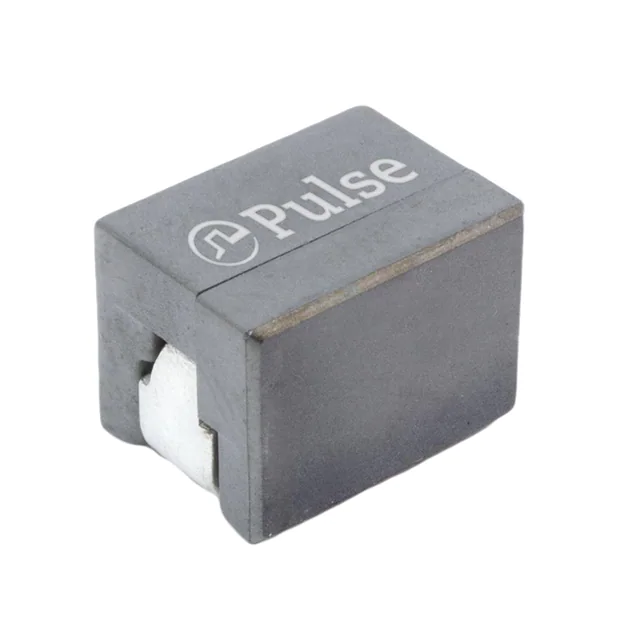

PA5187.181HLTFIXED IND 180NH 48A 0.12MOHM SMD |
2,580 |
|
Datasheet
|
PA5187 | Nonstandard | Tape & Reel (TR) | Active | - | - | 180 nH | ±10% | 48 A | 55A | Shielded | 0.12mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.323" W (10.80mm x 8.20mm) | 0.323" (8.20mm) |
|
EXLA1V0503-R56-RIND MOLDED SHLD 0.56UH 14.6A |
2,385 |
|
Datasheet
|
EXLA1V05 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 560 nH | ±20% | 21 A | 9A | Shielded | 3.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | 0.122" (3.10mm) |
|

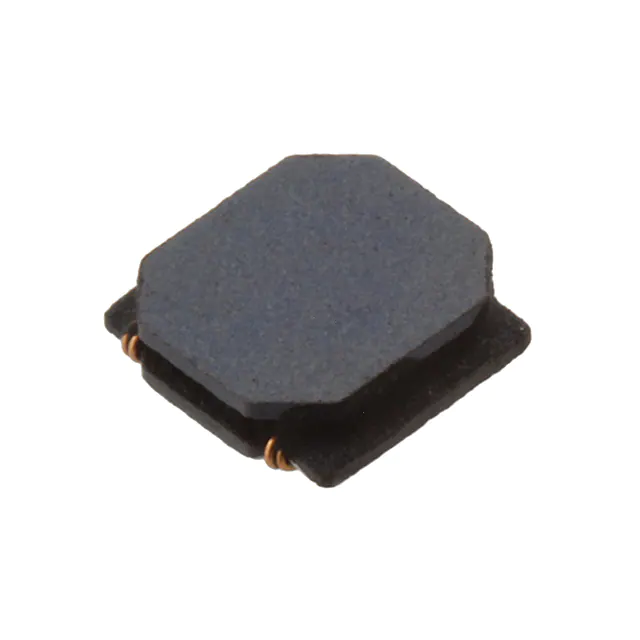

MDMK4040T3R3MMVFIXED IND 3.3UH 2.2A 130MOHM SMD |
2,000 |
|
Datasheet
|
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 2.2 A | 3.2A | Shielded | 130mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
MDMK4040TR68MMVFIXED IND 680NH 5A 29 MOHM SMD |
2,000 |
|
Datasheet
|
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 680 nH | ±20% | 5 A | 6.7A | Shielded | 29mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
MDWK4040T4R7MMVFIXED IND 4.7UH 2.5A 107MOHM SMD |
1,400 |
|
Datasheet
|
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 2.5 A | 3.5A | Shielded | 107mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
PG0087.105NLFIXED IND 1MH 60MA 12.57 OHM SMD |
2,950 |
|
Datasheet
|
PG0087NL | Nonstandard | Tray | Active | - | - | 1 mH | ±20% | 60 mA | 60mA | Shielded | 12.57Ohm Max | - | 2.7MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.079" (2.00mm) |
|
|
PG0087.102NLFIXED IND 1UH 3.5A 33 MOHM SMD |
2,950 |
|
Datasheet
|
PG0087NL | Nonstandard | Tray | Active | - | - | 1 µH | ±20% | 3.5 A | 3.5A | Shielded | 33mOhm Max | - | 40MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.079" (2.00mm) |
