Isolators - Gate Drivers(3597)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FOD3181OPTOISO 5KV 1CH GATE DVR 8DIP |
0 |
|
Datasheet
|
- | 8-DIP (0.300", 7.62mm) | Bulk | Obsolete | Optical Coupling | 1 | 5000Vrms | 10kV/µs | 500ns, 500ns | - | 75ns, 55ns | 500mA, 500mA | 1.5A | 1.5V | 25 mA | 10V ~ 20V | - | - | -20°C ~ 85°C | Through Hole | 8-DIP | cUL, UL |
|
FOD3181SDVOPTOISO 5KV 1CH GATE DVR 8SMD |
0 |
|
Datasheet
|
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Optical Coupling | 1 | 5000Vrms | 10kV/µs | 500ns, 500ns | - | 75ns, 55ns | 500mA, 500mA | 1.5A | 1.5V | 25 mA | 10V ~ 20V | - | - | -20°C ~ 85°C | Surface Mount | 8-SMD | cUL, UL, VDE |
|

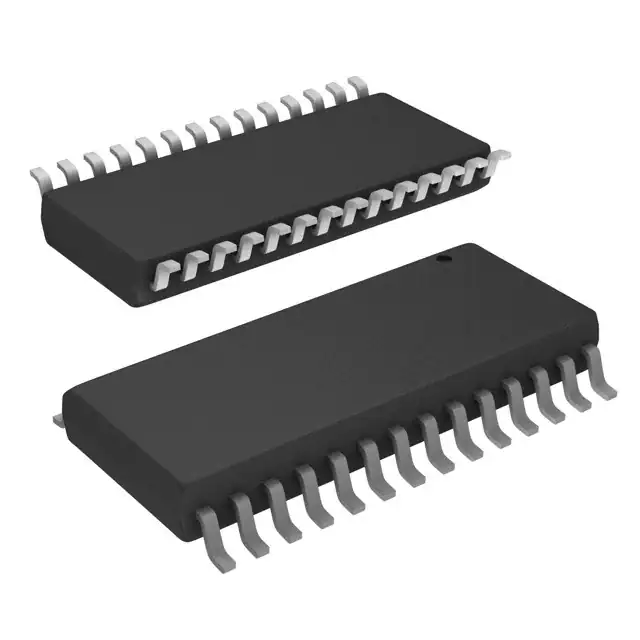

ADUM1420BRWZ-RLDGT ISO 1.667KV GT DVR 28SOIC |
0 |
|
Datasheet
|
iCoupler® | 28-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Magnetic Coupling | 4 | 1667Vrms | 75kV/µs | 128ns, 128ns | 8ns | 25ns, 25ns (Max) | - | 100mA | - | - | 12V ~ 18V | - | - | -40°C ~ 105°C | Surface Mount | 28-SOIC | - |
|
PS9552L2-AXOPTOISO 5KV 1CH GATE DVR 8SMD GW |
0 |
|
Datasheet
|
NEPOC | 8-SMD, Gull Wing | Tube | Obsolete | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.65V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD Gull Wing | BSI, CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL |
|
PS9552L3-AXOPTOISO 5KV 1CH GATE DVR 8SMD GW |
0 |
|
Datasheet
|
NEPOC | 8-SMD, Gull Wing | Tube | Obsolete | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.65V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD Gull Wing | BSI, CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL |
|
|
FOD3181SOPTOISO 5KV 1CH GATE DVR 8SMD |
0 |
|
Datasheet
|
- | 8-SMD, Gull Wing | Bulk | Obsolete | Optical Coupling | 1 | 5000Vrms | 10kV/µs | 500ns, 500ns | - | 75ns, 55ns | 500mA, 500mA | 1.5A | 1.5V | 25 mA | 10V ~ 20V | - | - | -20°C ~ 85°C | Surface Mount | 8-SMD | cUL, UL |
|
|
FOD3181SDOPTOISO 5KV 1CH GATE DVR 8SMD |
0 |
|
Datasheet
|
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Optical Coupling | 1 | 5000Vrms | 10kV/µs | 500ns, 500ns | - | 75ns, 55ns | 500mA, 500mA | 1.5A | 1.5V | 25 mA | 10V ~ 20V | - | - | -20°C ~ 85°C | Surface Mount | 8-SMD | cUL, UL |
|
FOD3181TVOPTOISO 5KV 1CH GATE DVR 8MDIP |
0 |
|
Datasheet
|
- | 8-DIP (0.400", 10.16mm) | Bulk | Obsolete | Optical Coupling | 1 | 5000Vrms | 10kV/µs | 500ns, 500ns | - | 75ns, 55ns | 500mA, 500mA | 1.5A | 1.5V | 25 mA | 10V ~ 20V | - | - | -20°C ~ 85°C | Through Hole | 8-MDIP | cUL, UL, VDE |
|
|
FOD3181VOPTOISO 5KV 1CH GATE DVR 8DIP |
0 |
|
Datasheet
|
- | 8-DIP (0.300", 7.62mm) | Bulk | Obsolete | Optical Coupling | 1 | 5000Vrms | 10kV/µs | 500ns, 500ns | - | 75ns, 55ns | 500mA, 500mA | 1.5A | 1.5V | 25 mA | 10V ~ 20V | - | - | -20°C ~ 85°C | Through Hole | 8-DIP | cUL, UL, VDE |
|
|
PS9552-AXOPTOISO 5KV 1CH GATE DVR 8DIP |
0 |
|
Datasheet
|
NEPOC | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.65V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | BSI, CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL |
|
|
PS9553L3-E3-AXOPTOISO 5KV 1CH GATE DVR 8SMD GW |
0 |
|
Datasheet
|
NEPOC | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 650ns, 650ns | 500ns | 50ns, 50ns | 400mA, 400mA | 600mA | 1.56V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD Gull Wing | - |
|
PS9553-AXOPTOISO 5KV 1CH GATE DVR 8DIP |
0 |
|
Datasheet
|
NEPOC | 8-DIP (0.300", 7.62mm) | Strip | Obsolete | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 650ns, 650ns | 500ns | 50ns, 50ns | 400mA, 400mA | 600mA | 1.56V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | - |
|
SI8235-B-ISDGTL ISO 2.5KV 2CH GT DVR 16SOIC |
0 |
|
Datasheet
|
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 9.4V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
.jpg)
|
TLP700(F)OPTOISO 5KV 1CH GATE DVR 6SDIP |
0 |
|
- |
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Obsolete | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 500ns, 500ns | - | 50ns, 50ns | 1.5A, 1.5A | 2A | 1.57V | 20 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SDIP Gull Wing | UR |
|
PS9401-2-AXOPTOISO 5KV 2CH GATE DVR 16SSOP |
0 |
|
Datasheet
|
NEPOC | 16-SOIC (0.173", 4.40mm Width) | Bulk | Obsolete | Optical Coupling | 2 | 5000Vrms | 15kV/µs | 700ns, 700ns | 500ns | 50ns, 50ns | 400mA, 400mA | 600mA | 1.56V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 16-SSOP | - |
|
ACPL-H312-060EOPTOISO 3.75KV 1CH GATE DVR 8SO |
0 |
|
Datasheet
|
- | 8-SOIC (0.268", 6.81mm Width) | Tube | Obsolete | Optical Coupling | 1 | 3750Vrms | 15kV/µs | 500ns, 500ns | 300ns | 50ns, 50ns | 2A, 2A | 2.5A | 1.5V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SO Stretched | CSA, IEC/EN/DIN, UR |
|
|
SI8230BB-B-ISDGTL ISO 2.5KV 2CH GT DVR 16SOIC |
0 |
|
Datasheet
|
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 60ns, 60ns | 5.6ns | 20ns, 20ns (Max) | 250mA, 500mA | 500mA | - | - | 9.4V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
SI8230BD-B-ISDGTL ISO 5KV 2CH GATE DVR 16SOIC |
0 |
|
Datasheet
|
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Capacitive Coupling | 2 | 5000Vrms | 20kV/µs | 60ns, 60ns | 5.6ns | 20ns, 20ns (Max) | 250mA, 500mA | 500mA | - | - | 9.4V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
SI8230BB-B-IS1DGTL ISO 2.5KV 2CH GT DVR 16SOIC |
0 |
|
Datasheet
|
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 60ns, 60ns | 5.6ns | 20ns, 20ns (Max) | 250mA, 500mA | 500mA | - | - | 9.4V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
SI8231BB-B-IS1DGTL ISO 2.5KV 2CH GT DVR 16SOIC |
0 |
|
Datasheet
|
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 60ns, 60ns | 5.6ns | 20ns, 20ns (Max) | 250mA, 500mA | 500mA | - | - | 9.4V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
