Isolators - Gate Drivers(3597)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI8233BB-D-IM1RDGTL ISO 2.5KV 2CH GT DVR 14QFN |
0 |
|
Datasheet
|
- | 14-VDFN | Tape & Reel (TR) | Obsolete | Capacitive Coupling | 2 | 2500Vrms | 45kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UR, VDE |
|
|

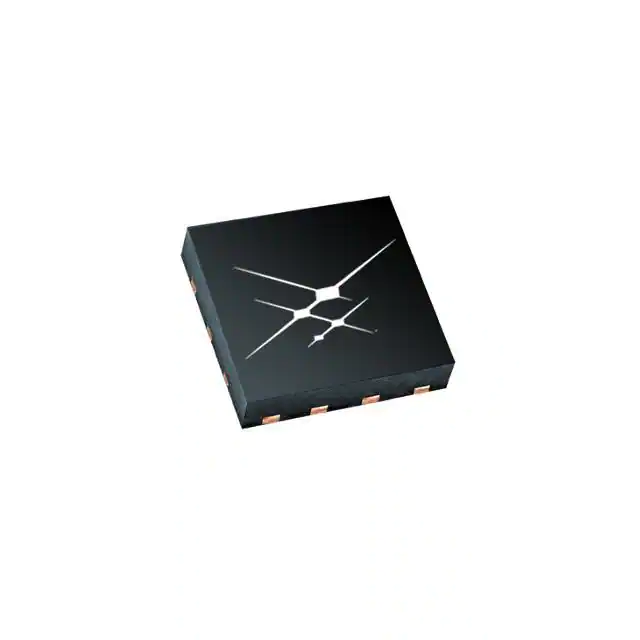

SI8234AB-D-IM1RDGTL ISO 2.5KV 2CH GT DVR 14QFN |
0 |
|
Datasheet
|
- | 14-VDFN | Tape & Reel (TR) | Obsolete | Capacitive Coupling | 2 | 2500Vrms | 45kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UR, VDE |
|
|
SI8234BB-D-IM1RDGTL ISO 2.5KV 2CH GT DVR 14QFN |
0 |
|
Datasheet
|
- | 14-VDFN | Tape & Reel (TR) | Obsolete | Capacitive Coupling | 2 | 2500Vrms | 45kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UR, VDE |
|
|
SI8235AB-D-IM1RDGTL ISO 2.5KV 2CH GT DVR 14QFN |
0 |
|
Datasheet
|
- | 14-VDFN | Tape & Reel (TR) | Obsolete | Capacitive Coupling | 2 | 2500Vrms | 45kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UR, VDE |
|
|
SI8235BB-D-IM1RDGTL ISO 2.5KV 2CH GT DVR 14QFN |
0 |
|
Datasheet
|
- | 14-VDFN | Tape & Reel (TR) | Obsolete | Capacitive Coupling | 2 | 2500Vrms | 45kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UR, VDE |
.jpg)
|
TLP700A(F)OPTOISO 5KV 1CH GATE DVR 6SDIP |
0 |
|
- |
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Obsolete | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 200ns, 200ns | 50ns | 15ns, 8ns | 2A, 2A | 2.5A | 1.55V | 20 mA | 15V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 6-SDIP | cUR, UR, VDE |
|
|
TLP700A(TP,F)OPTOISO 5KV 1CH GATE DVR 6SDIP |
0 |
|
- |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Obsolete | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 200ns, 200ns | 50ns | 15ns, 8ns | 2A, 2A | 2.5A | 1.55V | 20 mA | 15V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 6-SDIP | cUR, UR, VDE |
|
|
TLP705A(TP,F)OPTOISO 5KV 1CH GATE DVR 6SDIP |
0 |
|
- |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Obsolete | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 200ns, 200ns | 50ns | 35ns, 15ns | 400mA, 400mA | 600mA | 1.57V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SDIP | cUR, UR, VDE |
|
1ED020I12FAXUMA2DGTL ISO 4.5KV 1CH GT DVR DSO20 |
0 |
|
Datasheet
|
EiceDRIVER™ | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Magnetic Coupling | 1 | 4500Vrms | - | - | - | 30ns, 50ns | 2A, 2A | - | - | - | 13V ~ 20V | Automotive | - | -40°C ~ 150°C (TJ) | Surface Mount | PG-DSO-20 | - |
|
SI8273ABD-IM1RDGTL ISO 2.5KV 2CH GT DVR 14QFN |
0 |
|
Datasheet
|
Si827x | 14-VDFN | Tape & Reel (TR) | Obsolete | RF Coupling | 2 | 2500Vrms | 200kV/µs | 75ns, 75ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UR, VDE |
|
|
SI8273AB-IM1RDGTL ISO 2.5KV 2CH GT DVR 14QFN |
0 |
|
Datasheet
|
Si827x | 14-VDFN | Tape & Reel (TR) | Obsolete | RF Coupling | 2 | 2500Vrms | 200kV/µs | 75ns, 75ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UR, VDE |
|
|
SI8274AB1-IM1RDGTL ISO 2.5KV 2CH GT DVR 14QFN |
0 |
|
Datasheet
|
Si827x | 14-VDFN | Tape & Reel (TR) | Obsolete | RF Coupling | 2 | 2500Vrms | 200kV/µs | 75ns, 60ns | 19ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UR, VDE |
|
|
SI8274AB4D-IM1RDGTL ISO 2.5KV 2CH GT DVR 14QFN |
0 |
|
Datasheet
|
Si827x | 14-VDFN | Tape & Reel (TR) | Obsolete | RF Coupling | 2 | 2500Vrms | 200kV/µs | 105ns, 75ns | 47ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UR, VDE |
|
|
SI8274GB1-IM1RDGTL ISO 2.5KV 2CH GT DVR 14QFN |
0 |
|
Datasheet
|
Si827x | 14-VDFN | Tape & Reel (TR) | Obsolete | RF Coupling | 2 | 2500Vrms | 200kV/µs | 75ns, 60ns | 19ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UR, VDE |
|
|
SI8274GB4D-IM1RDGTL ISO 2.5KV 2CH GT DVR 14QFN |
0 |
|
Datasheet
|
Si827x | 14-VDFN | Tape & Reel (TR) | Obsolete | RF Coupling | 2 | 2500Vrms | 200kV/µs | 105ns, 75ns | 47ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UR, VDE |
|
|
SI8275ABD-IM1RDGTL ISO 2.5KV 2CH GT DVR 14QFN |
0 |
|
Datasheet
|
Si827x | 14-VDFN | Tape & Reel (TR) | Obsolete | RF Coupling | 2 | 2500Vrms | 200kV/µs | 75ns, 75ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UR, VDE |
|
|
SI8275AB-IM1RDGTL ISO 2.5KV 2CH GT DVR 14QFN |
0 |
|
Datasheet
|
Si827x | 14-VDFN | Tape & Reel (TR) | Obsolete | RF Coupling | 2 | 2500Vrms | 200kV/µs | 75ns, 75ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UR, VDE |
|
PS9552-AXOPTOISO 5KV 1CH GATE DVR 8DIP |
0 |
|
Datasheet
|
NEPOC | 8-DIP (0.300", 7.62mm) | Bulk | Obsolete | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.65V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | BSI, CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL |
|
|
PS9552-V-AXOPTOISO 5KV 1CH GATE DVR 8DIP |
0 |
|
Datasheet
|
NEPOC | 8-DIP (0.300", 7.62mm) | Bulk | Obsolete | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.65V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | BSI, CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL, VDE |
|
|
PS9552L1-AXOPTOISO 5KV 1CH GATE DVR 8DIP |
0 |
|
Datasheet
|
NEPOC | 8-DIP (0.400", 10.16mm) | Bulk | Obsolete | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.65V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | BSI, CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL |
