Photointerrupters - Slot Type - Transistor Output(1246)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Sensing Distance | Sensing Method | Output Configuration | Current - DC Forward (If) (Max) | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Response Time | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OPB821TXVSENSOR OPT SLOT PHOTOTRANS MODUL |
0 |
|
- |
- | Module, Pre-Wired | Bulk | Obsolete | 0.080" (2.03mm) | Through-Beam | Phototransistor | 50 mA | - | 30 V | - | -40°C ~ 85°C | - | - | Chassis Mount |
|
|
EE-SJ8-BSENSOR OPT SLOT PHOTOTRAN PCB MT |
0 |
|
Datasheet
|
- | PCB Mount | Bulk | Active | 0.315" (8mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 30 V | 4µs, 4µs | -25°C ~ 85°C | - | - | Through Hole |
|
|
EE-SX1128SENSOR OPT SLOT PHOTOTRAN PCB MT |
0 |
|
Datasheet
|
- | PCB Mount | Bulk | Obsolete | 0.165" (4.2mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 30 V | 4µs, 4µs | -25°C ~ 85°C | - | - | Through Hole |
|
EE-SX129SENSOR OPT SLOT PHOTOTRAN PCB MT |
0 |
|
Datasheet
|
- | PCB Mount | Bulk | Obsolete | 0.118" (3mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 30 V | 4µs, 4µs | -25°C ~ 85°C | - | - | Through Hole |
|

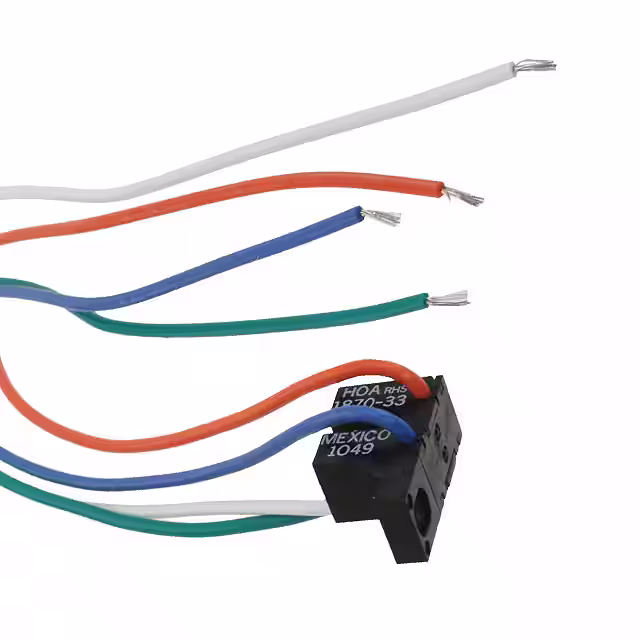

HOA1870-033SENSOR OPT SLOT DARL MODULE |
0 |
|
Datasheet
|
- | Module, Pre-Wired | Bulk | Obsolete | 0.070" (1.78mm) | Through-Beam | Photodarlington | 50 mA | 30 mA | 15 V | 75µs, 75µs | -40°C ~ 85°C | - | - | Chassis Mount |
|
HOA1875-002SENSOR OPT SLOT PHOTOTRANS MODUL |
0 |
|
- |
- | Module, Slotted | Bulk | Obsolete | 0.200" (5.08mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | 15µs | -55°C ~ 100°C | - | - | Through Hole |
|
HOA1877-002SENSOR OPT SLOT PHOTOTRAN PCB MT |
0 |
|
- |
- | PCB Mount | Bulk | Obsolete | 0.375" (9.52mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | 15µs, 15µs | -55°C ~ 100°C | - | - | Through Hole |
|
HOA1877-003SENSOR OPT SLOT DARL PCB MOUNT |
0 |
|
- |
- | PCB Mount | Bulk | Obsolete | 0.375" (9.52mm) | Through-Beam | Photodarlington | 50 mA | 30 mA | 15 V | 75µs, 75µs | -55°C ~ 100°C | - | - | Through Hole |
|
HOA1884-012SENSOR OPT SLOT PHOTOTRAN PCB MT |
0 |
|
- |
- | PCB Mount | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | 15µs | -40°C ~ 85°C | - | - | Through Hole |
|
HOA1887-012SENSOR OPT SLOT PHOTOTRANS MODUL |
0 |
|
Datasheet
|
- | Module, Pre-Wired | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | 15µs | -40°C ~ 85°C | - | - | Chassis Mount, Wire Lead |
|

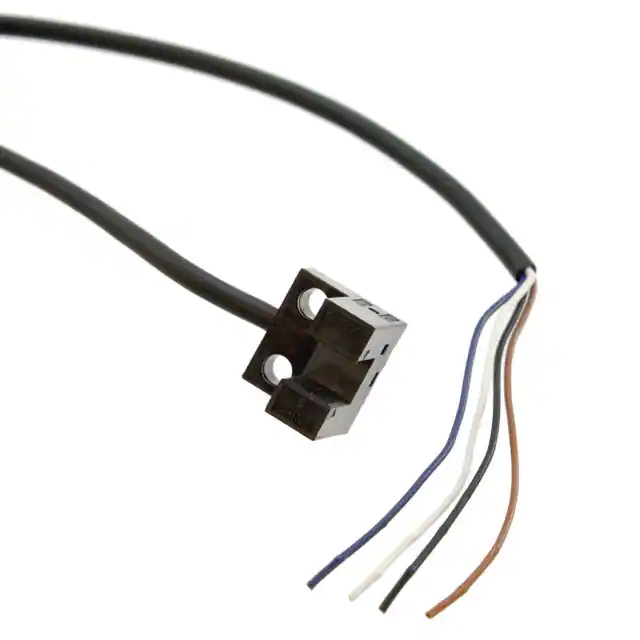

EE-SX911-R 1MSENSOR OPT SLOT NPN MODULE |
0 |
|
Datasheet
|
- | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | NPN - Open Collector | - | - | - | - | -25°C ~ 55°C | - | - | Chassis Mount |
|

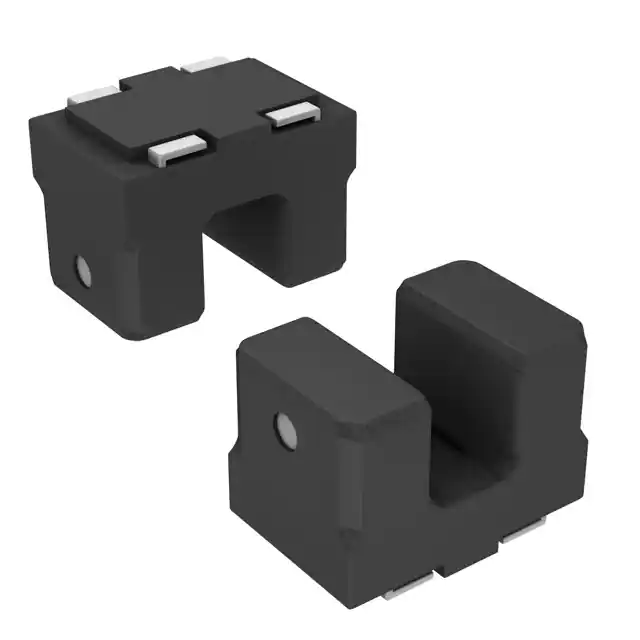

RPI-0126KSENSOR OPT SLOT PHOTOTRANS 4SMD |
0 |
|
Datasheet
|
- | 4-SMD | Tape & Reel (TR) | Obsolete | 0.047" (1.2mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | 10µs, 10µs | -30°C ~ 85°C | - | - | Surface Mount |
|
|
MOC70P3_F132SENSOR OPT SLOT PHOTOTRAN PC PIN |
0 |
|
Datasheet
|
- | Slotted, PC Pins | Tube | Obsolete | 0.200" (5.08mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 30 V | 20µs, 80µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
|

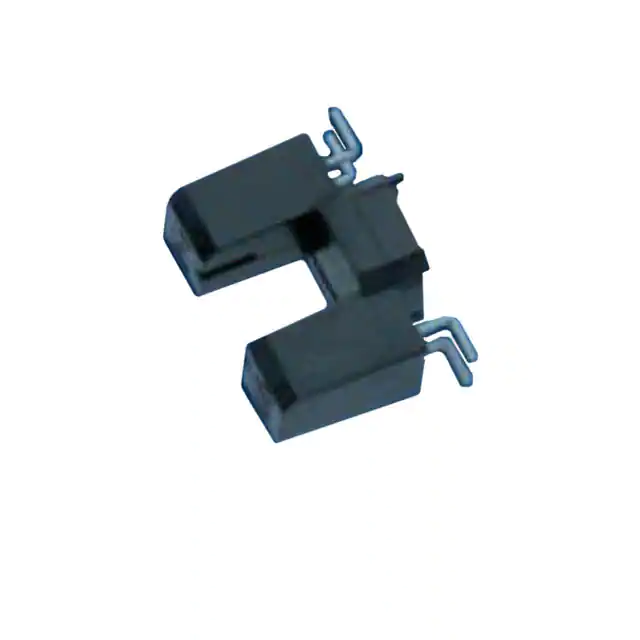

SFH 9500-ZSENSOR OPT SLOT PHOTOTRANS MODUL |
0 |
|
Datasheet
|
- | Module, Slotted | Bulk | Obsolete | 0.205" (5.2mm) | Through-Beam | Phototransistor | 60 mA | 50 mA | 30 V | 13µs, 17µs | -40°C ~ 85°C | - | - | Surface Mount |
|
|
TLP1243(C8)SENSOR OPT SLOT PHOTOTRANS |
0 |
|
- |
- | - | Tube | Obsolete | 0.197" (5mm) | - | Phototransistor | 30 mA | 50 mA | 35 V | 15µs | -30°C ~ 95°C | - | - | - |
|
|
RPI-578NFPHOTOINTERRUPTER 50V 80MW STD |
0 |
|
- |
- | PCB Mount | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | 10µs | -25°C ~ 85°C | - | - | Through Hole |
|

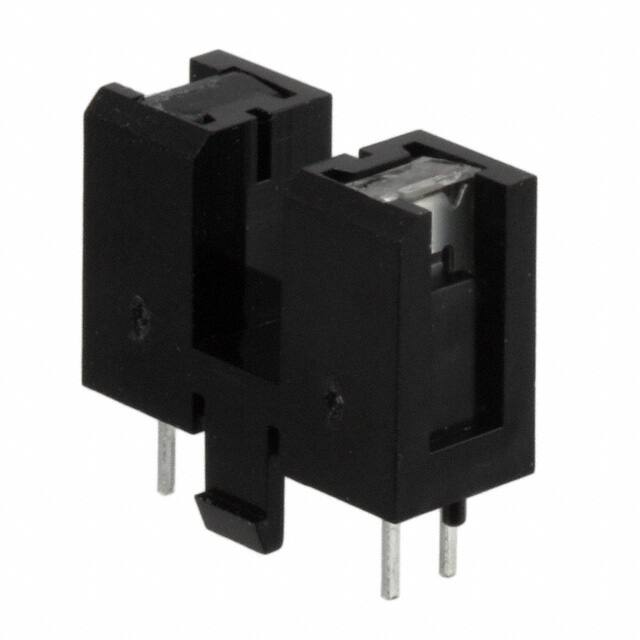

RPI-392SENSOR OPT SLOT TRANSISTOR MODUL |
0 |
|
Datasheet
|
- | Module, PC Pins, Slot Type | Bulk | Obsolete | 0.157" (4mm) | - | Transistor | 50 mA | 30 mA | 30 V | 10µs | -25°C ~ 85°C | - | - | Through Hole |
|

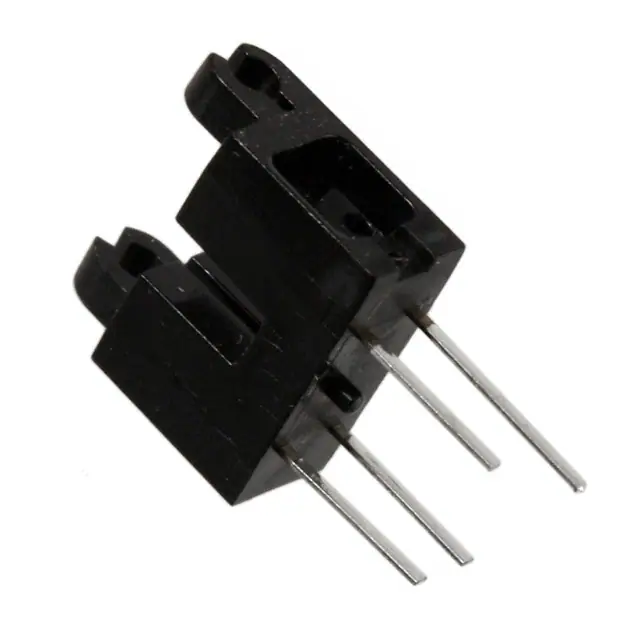

RPI-5100SENSOR OPT SLOT TRANSISTOR MODUL |
0 |
|
Datasheet
|
- | Module, PC Pins, Slot Type | Bulk | Obsolete | - | - | Transistor | 50 mA | 30 mA | 30 V | 10µs | -25°C ~ 85°C | - | - | Through Hole |
|
RPI-129BNSENSOR OPT SLOT PHOTOTRANS MODUL |
0 |
|
Datasheet
|
- | Slotted Module | Tube | Obsolete | - | - | Phototransistor | 50 mA | 30 mA | 30 V | 10µs | -25°C ~ 85°C | - | - | Through Hole |
|
RPI-579SENSOR OPT SLOT PHOTOTRAN PCB MT |
0 |
|
Datasheet
|
- | PCB Mount | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | 10µs | -25°C ~ 85°C | - | - | Through Hole |
