Logic Output Optoisolators(2459)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL-263L-300EOPTOISO 3.75KV OPEN COLL 8DIP GW |
4,062 |
|
Datasheet
|
- | 8-SMD, Gull Wing | Tube | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 15mA | 2.7V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
HCPL-063L-060EOPTOISO 3.75KV 2CH OPEN COLL 8SO |
800 |
|
Datasheet
|
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 15mA | 2.7V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
|
HCPL-0201OPTOISO 3.75KV PUSH PULL 8SO |
1,375 |
|
Datasheet
|
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|

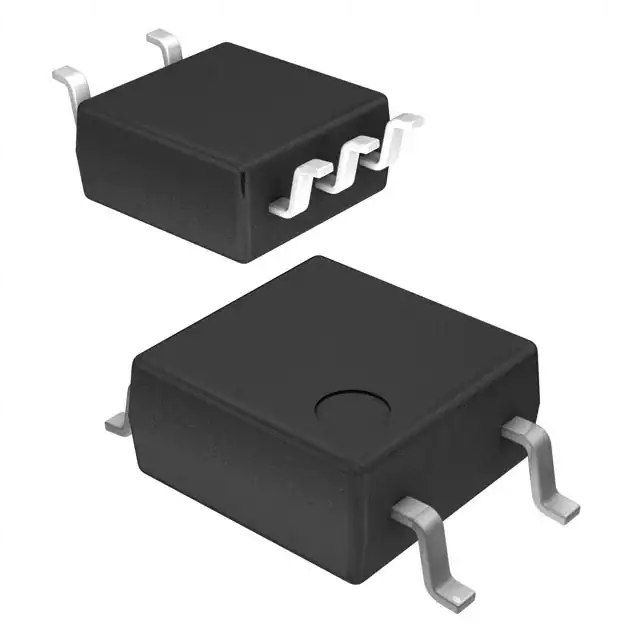

RV1S9161ACCSP-100V#SC0SO-5 |
1,136 |
|
Datasheet
|
RV | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Strip | Active | 1 | 1/0 | 3750Vrms | 100kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 15Mbps | 60ns, 60ns | - | 1.54V | 20mA | 4.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 5-SO |
|
|
HCPL-0201#500OPTOISO 3.75KV PUSH PULL 8SO |
1,028 |
|
Datasheet
|
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
.jpg)
|
HCNW4506OPTOISO 5KV OPEN COLLECTOR 8DIP |
1,371 |
|
Datasheet
|
- | 8-DIP (0.400", 10.16mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | - | 550ns, 400ns | - | 1.6V | 25mA | 4.5V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP |
|
FOD8001R2OPTOISO 3.75KV PUSH PULL 8SO |
3,779 |
|
Datasheet
|
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25Mbps | 40ns, 40ns | 6.5ns, 6.5ns | - | - | 3V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SOIC |
|
ACPL-K64L-060EOPTOISO 5KV 2CH PUSH PULL 8SO |
3,903 |
|
Datasheet
|
- | 8-SOIC (0.268", 6.81mm Width) | Tube | Active | 2 | 2/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 10MBd | 80ns, 80ns | 12ns, 12ns | 1.3V | 8mA | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Stretched |
|
APS1551SXOPTOISO 3.75KV PUSH PULL |
603 |
|
Datasheet
|
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 50Mbps | 30ns, 30ns | 4ns, 5ns | 1.6V | 25mA | 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO, 5 Lead |
|
ACSL-6300-00TEOPTOISO 2.5KV 3CH OPEN COLL 16SO |
575 |
|
Datasheet
|
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | 3 | 3/0 | 2500Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 100ns, 100ns | 30ns, 12ns | 1.52V | 15mA | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 16-SOIC |
|
|
HCPL-2400-300EOPTOISO 3.75KV TRI-STATE 8DIP GW |
895 |
|
Datasheet
|
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Tri-State | 25 mA | 40MBd | 55ns, 55ns | 20ns, 10ns | 1.3V | 10mA | 4.75V ~ 5.25V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
ACPL-K63L-500EOPTOISO 5KV 2CH OPN COLL 8SO |
2,140 |
|
Datasheet
|
- | 8-SOIC (0.268", 6.81mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 5000Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 15mA | 2.7V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SO Stretched |
|
HCPL-4661-000EOPTOISO 3.75KV 2CH OPEN COL 8DIP |
692 |
|
Datasheet
|
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
HCPL-4661-020EOPTOISO 5KV 2CH OPEN COLL 8DIP |
22,421 |
|
Datasheet
|
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 5000Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
ACPL-K75T-000EOPTOISO 5KV 2CH PUSH PULL 8SO |
966 |
|
Datasheet
|
- | 8-SOIC (0.268", 6.81mm Width) | Tube | Active | 2 | 2/0 | 5000Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | - | - | 100ns, 100ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SO Stretched |
|
|
HCPL-0710OPTOISO 3.75KV PUSH PULL 8SO |
851 |
|
Datasheet
|
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 12.5MBd | 40ns, 40ns | 13ns, 5ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SO Tall |
|
|
HCPL-2300OPTOISO 3.75KV OPEN COLL 8DIP |
980 |
|
Datasheet
|
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 3750Vrms | 100V/µs | DC | Open Collector, Schottky Clamped | 25 mA | 5MBd | 160ns, 200ns | 40ns, 20ns | 1.3V | 5mA (Typ) | 4.75V ~ 5.25V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
HCPL-0661OPTOISO 3.75KV 2CH OPEN COLL 8SO |
1,014 |
|
Datasheet
|
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 2/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
|
HCPL-2430-500EOPTOISO 3.75KV PUSH PULL 8DIP GW |
1,438 |
|
Datasheet
|
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 2 | 2/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 40MBd | 55ns, 55ns | 20ns, 10ns | 1.3V | 10mA | 4.75V ~ 5.25V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-063NOPTOISO 3.75KV 2CH OPEN COLL 8SO |
1,792 |
|
Datasheet
|
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 2/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 42ns, 12ns | 1.3V | 10mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
