Zener Diode Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Configuration | Voltage - Zener (Nom) (Vz) | Tolerance | Power - Max | Impedance (Max) (Zzt) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

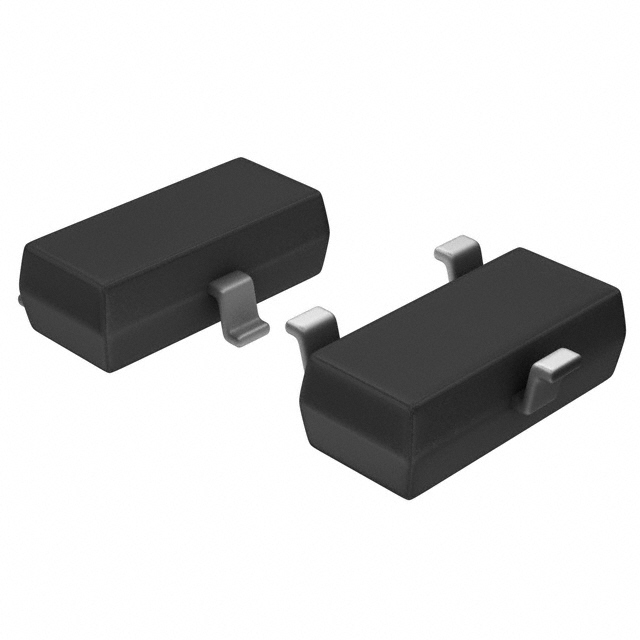

AZ23C5V1-E3-08DIODE ZENER 5.1V 300MW SOT23 Vishay General Semiconductor - Diodes Division |
11,612 |
|
Datasheet
|
AZ23 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Anode | 5.1 V | ±5% | 300 mW | 60 Ohms | 100 nA @ 800 mV | - | -55°C ~ 150°C | - | - | Surface Mount | SOT-23-3 |
|
|
AZ23C3V6-E3-08DIODE ZENER 3.6V 300MW SOT23 Vishay General Semiconductor - Diodes Division |
211,907 |
|
Datasheet
|
AZ23 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Anode | 3.6 V | ±5% | 300 mW | 95 Ohms | - | - | -55°C ~ 150°C | - | - | Surface Mount | SOT-23-3 |
|
|
AZ23C5V6-E3-08DIODE ZENER ARRAY 5.6V SOT23 Vishay General Semiconductor - Diodes Division |
40,398 |
|
Datasheet
|
AZ23 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Anode | 5.6 V | ±5% | 300 mW | 40 Ohms | 100 nA @ 800 mV | - | -55°C ~ 150°C | - | - | Surface Mount | SOT-23-3 |
|
|
AZ23C3V3-E3-08DIODE ZENER 3.3V 300MW SOT23 Vishay General Semiconductor - Diodes Division |
33,609 |
|
Datasheet
|
AZ23 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Anode | 3.3 V | ±5% | 300 mW | 95 Ohms | - | - | -55°C ~ 150°C | - | - | Surface Mount | SOT-23-3 |
|
|
AZ23C5V6-E3-18DIODE ZENER ARRAY 5.6V SOT23 Vishay General Semiconductor - Diodes Division |
29,750 |
|
Datasheet
|
AZ23 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Anode | 5.6 V | ±7% | 300 mW | 40 Ohms | 100 nA @ 1 V | - | - | - | - | Surface Mount | SOT-23-3 |
|
|
AZ23C6V8-E3-08DIODE ZENER 6.8V 300MW SOT23 Vishay General Semiconductor - Diodes Division |
21,673 |
|
Datasheet
|
AZ23 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Anode | 6.8 V | ±5% | 300 mW | 8 Ohms | 100 nA @ 3 V | - | -55°C ~ 150°C | - | - | Surface Mount | SOT-23-3 |
|
|
AZ23C4V7-E3-08DIODE ZENER 4.7V 300MW SOT23 Vishay General Semiconductor - Diodes Division |
21,530 |
|
Datasheet
|
AZ23 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Anode | 4.7 V | ±5% | 300 mW | 78 Ohms | - | - | -55°C ~ 150°C | - | - | Surface Mount | SOT-23-3 |
|
|
AZ23C18-E3-08DIODE ZENER 18V 300MW SOT23 Vishay General Semiconductor - Diodes Division |
21,118 |
|
Datasheet
|
AZ23 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Anode | 18 V | ±5% | 300 mW | 50 Ohms | 100 nA @ 14 V | - | -55°C ~ 150°C | - | - | Surface Mount | SOT-23-3 |
|
|
AZ23C6V2-E3-08DIODE ZENER 6.2V 300MW SOT23 Vishay General Semiconductor - Diodes Division |
19,331 |
|
Datasheet
|
AZ23 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Anode | 6.2 V | ±5% | 300 mW | 10 Ohms | 100 nA @ 2 V | - | -55°C ~ 150°C | - | - | Surface Mount | SOT-23-3 |
|
|
AZ23C3V9-E3-08DIODE ZENER 3.9V 300MW SOT23 Vishay General Semiconductor - Diodes Division |
17,671 |
|
Datasheet
|
AZ23 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Anode | 3.9 V | ±5% | 300 mW | 95 Ohms | - | - | -55°C ~ 150°C | - | - | Surface Mount | SOT-23-3 |
