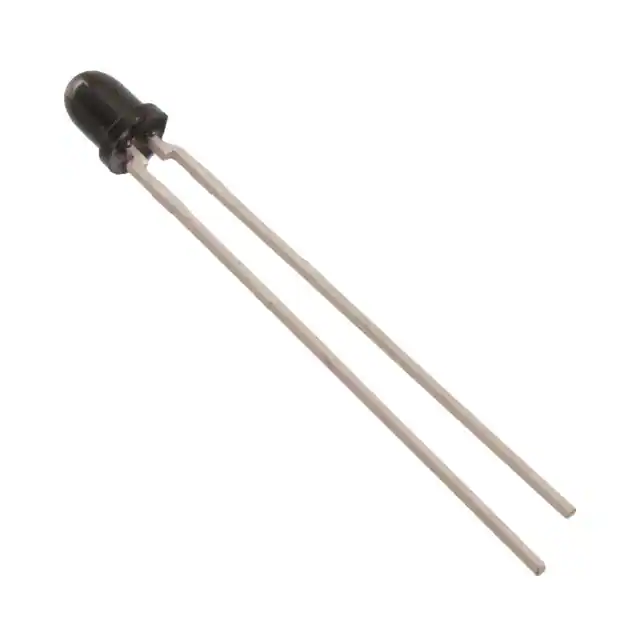

ams-OSRAM USA INC. SFH 309 FA-5 RN18C
- Part No.:
- SFH 309 FA-5 RN18C
- Manufacturer:
- ams-OSRAM USA INC.
- Category:
- Phototransistors
- Package:
- Radial, T-1 Lens
- Description:
- SENSOR PHOTO 900NM TOP VIEW RAD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
SFH 309 FA-5 RN18C Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- ams-OSRAM USA INC.
- Series:
- -
- Package/Case:
- Radial, T-1 Lens
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Voltage - Collector Emitter Breakdown (Max):
- 35 V
- Current - Collector (Ic) (Max):
- 15 mA
- Current - Dark (Id) (Max):
- 50 nA
- Wavelength:
- 900nm
- Viewing Angle:
- 24°
- Power - Max:
- 165 mW
- Mounting Type:
- Through Hole
- Orientation:
- Top View
- Operating Temperature:
- -40°C ~ 100°C
- Grade:
- -
- Qualification:
- -
| Image |  |
 |
 |
|
 |
| Part Number | SFH 309 FA | SFH 309 FA-5/6 | SFH 309 FA-4/5 | SFH 309 FA-4 | SFH 309 FA-5 |
| Manufacturer | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| Series | - | - | - | - | - |
| Package/Case | Radial, T-1 Lens | Radial, T-1 Lens | Radial, T-1 Lens | Radial, T-1 Lens | Radial, T-1 Lens |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Voltage - Collector Emitter Breakdown (Max) | 35 V | 35 V | 35 V | 35 V | 35 V |
| Current - Collector (Ic) (Max) | 15 mA | 15 mA | 15 mA | 15 mA | 15 mA |
| Current - Dark (Id) (Max) | 200 nA | 200 nA | 200 nA | 200 nA | 200 nA |
| Wavelength | 900nm | 900nm | 900nm | 900nm | 900nm |
| Viewing Angle | 24° | 24° | 24° | 24° | 24° |
| Power - Max | 165 mW | 165 mW | 165 mW | 165 mW | 165 mW |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Orientation | Top View | Top View | Top View | Top View | Top View |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
