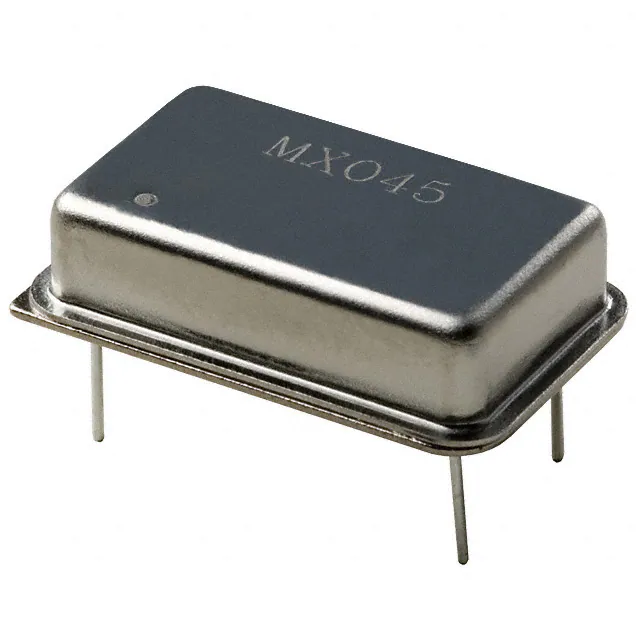

CTS-Frequency Controls MXO45-3I-2M000000
- Part No.:
- MXO45-3I-2M000000
- Manufacturer:
- CTS-Frequency Controls
- Category:
- Oscillators
- Package:
- 14-DIP, 4 Leads (Full Size, Metal Can)
- Datasheet:
-
MXO45-3I-2M000000.pdf
- Description:
- XTAL OSC XO 2.0000MHZ HCMOS TTL
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
MXO45-3I-2M000000 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- CTS-Frequency Controls
- Series:
- MXO45
- Package/Case:
- 14-DIP, 4 Leads (Full Size, Metal Can)
- Packaging:
- Bulk
- Product Status:
- Active
- Base Resonator:
- Crystal
- Type:
- XO (Standard)
- Frequency:
- 2 MHz
- Function:
- Enable/Disable
- Output:
- HCMOS, TTL
- Voltage - Supply:
- 5V
- Frequency Stability:
- ±50ppm
- Absolute Pull Range (APR):
- -
- Operating Temperature:
- -40°C ~ 85°C
- Spread Spectrum Bandwidth:
- -
- Current - Supply (Max):
- 26mA
- Ratings:
- -
- Mounting Type:
- Through Hole
- Supplier Device Package:
- 4-VDFN (3.2x2.5)
- Size / Dimension:
- 0.819" L x 0.520" W (20.80mm x 13.20mm)
- Height - Seated (Max):
- 0.240" (6.10mm)
- Datasheet:
-
MXO45-3I-2M000000.pdf
| Image |  |
|
|
 |
|
| Part Number | MXO45HS-3C-4M000000 | MXO45HS-3C-16M000000 | MXO45HS-3C-20M000000 | MXO45-3C-4M000000 | MXO45-3C-5M000000 |
| Manufacturer | CTS-Frequency Controls | CTS-Frequency Controls | CTS-Frequency Controls | CTS-Frequency Controls | CTS-Frequency Controls |
| Series | MXO45HS | MXO45HS | MXO45HS | MXO45 | MXO45 |
| Package/Case | 8-DIP, 4 Leads (Half Size, Metal Can) | 8-DIP, 4 Leads (Half Size, Metal Can) | 8-DIP, 4 Leads (Half Size, Metal Can) | 14-DIP, 4 Leads (Full Size, Metal Can) | 14-DIP, 4 Leads (Full Size, Metal Can) |
| Packaging | Tray | Tray | Tray | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Base Resonator | Crystal | Crystal | Crystal | Crystal | Crystal |
| Type | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) |
| Frequency | 4 MHz | 16 MHz | 20 MHz | 4 MHz | 5 MHz |
| Function | - | - | - | - | - |
| Output | HCMOS, TTL | HCMOS, TTL | HCMOS, TTL | HCMOS, TTL | HCMOS, TTL |
| Voltage - Supply | 5V | 5V | 5V | 5V | 5V |
| Frequency Stability | ±50ppm | ±50ppm | ±50ppm | ±50ppm | ±50ppm |
| Absolute Pull Range (APR) | - | - | - | - | - |
| Operating Temperature | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C |
| Spread Spectrum Bandwidth | - | - | - | - | - |
| Current - Supply (Max) | 26mA | 26mA | 26mA | 26mA | 26mA |
| Ratings | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.520" L x 0.520" W (13.20mm x 13.20mm) | 0.520" L x 0.520" W (13.20mm x 13.20mm) | 0.520" L x 0.520" W (13.20mm x 13.20mm) | 0.819" L x 0.520" W (20.80mm x 13.20mm) | 0.819" L x 0.520" W (20.80mm x 13.20mm) |
| Height - Seated (Max) | 0.240" (6.10mm) | 0.240" (6.10mm) | 0.240" (6.10mm) | 0.240" (6.10mm) | 0.240" (6.10mm) |
