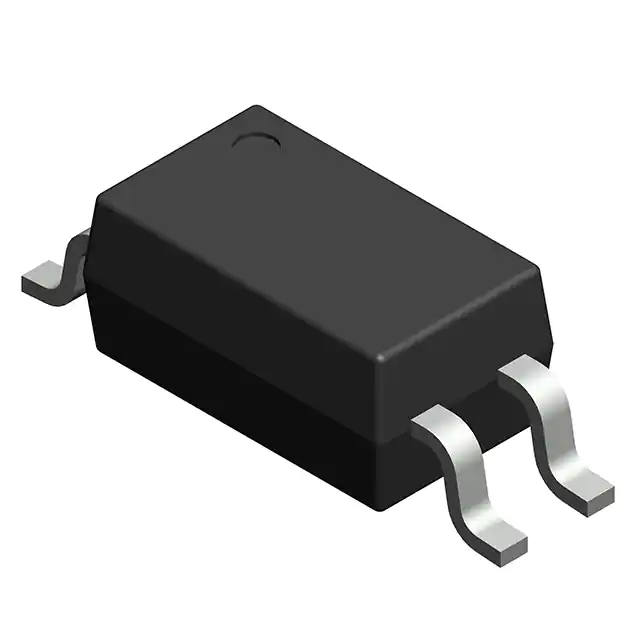

Lite-On Inc. LTV-217-G

Compare

Part No.:: LTV-217-G

Manufacturer:: Lite-On Inc.

Category:: Transistor, Photovoltaic Output Optoisolators

Package:: 4-SOIC (0.173", 4.40mm Width)

Datasheet:: LTV-217-G.pdf

Description:: OPTOISOLATOR 3.75KV TRANS 4-SSOP

Quantity:: Add To Cart Add To RFQ list

Payment:

Shipping:

LTV-217-G Information

Specifications
Product Details
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Lite-On Inc.

Series:: LTV-2X7

Package/Case:: 4-SOIC (0.173", 4.40mm Width)

Packaging:: Tape & Reel (TR)

Product Status:: Active

Number of Channels:: 1

Voltage - Isolation:: 3750Vrms

Current Transfer Ratio (Min):: 50% @ 5mA

Current Transfer Ratio (Max):: 600% @ 5mA

Turn On / Turn Off Time (Typ):: 3µs, 3µs

Rise / Fall Time (Typ):: 2µs, 3µs

Input Type:: DC

Output Type:: Transistor

Voltage - Output (Max):: 80V

Current - Output / Channel:: 50mA

Voltage - Forward (Vf) (Typ):: 1.2V

Current - DC Forward (If) (Max):: 50 mA

Vce Saturation (Max):: 400mV

Grade:: -

Qualification:: -

Operating Temperature:: -55°C ~ 110°C

Mounting Type:: Surface Mount

Supplier Device Package:: 4-SSOP

Datasheet:: LTV-217-G.pdf
