TE Connectivity Potter & Brumfield Relays 3100-30U10999CG
- Part No.:
- 3100-30U10999CG
- Manufacturer:
- TE Connectivity Potter & Brumfield Relays
- Category:
- Contactors (Electromechanical)
- Package:
- Datasheet:
-
3100-30U10999CG.pdf
- Description:
- RELAY CONTACTOR 3PST 40A 240V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
3100-30U10999CG Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TE Connectivity Potter & Brumfield Relays
- Series:
- 3100, Products Unlimited
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Mounting Type:
- Chassis Mount
- Coil Voltage:
- 240VAC
- Contact Form:
- 3PST-NO (DM) (3 Form X)
- Contact Rating (Current):
- 40 A
- Switching Voltage:
- 600VAC - Max
- Features:
- Insulation - Class B
- Termination Style:
- Screw Terminal, Quick Connect - 0.250" (6.3mm)
- Operating Temperature:
- -40°C ~ 65°C
- Must Operate Voltage:
- 177 VAC
- Must Release Voltage:
- 40 VAC
- Datasheet:
-
3100-30U10999CG.pdf
| Image |  |
 |
 |
 |
|

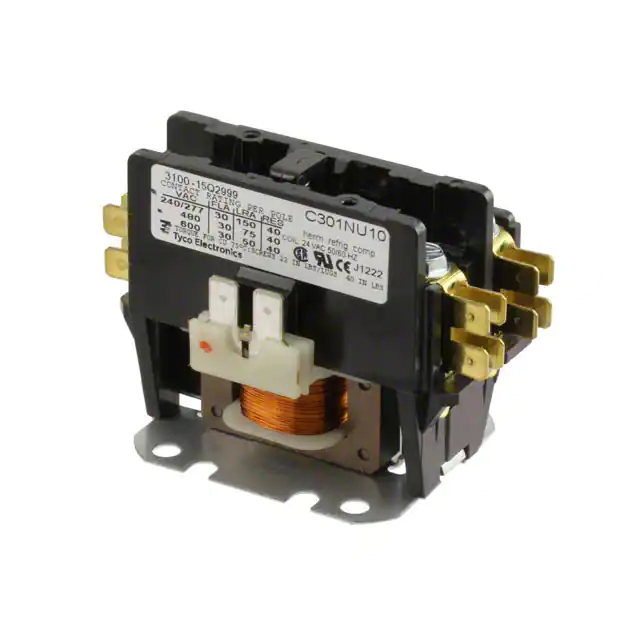

| Part Number | 3100-15U1999 | 3100-15Q2999 | 3100-15T1999 | 3100-20U5999 | 3100-20T18999C |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Series | 3100, Products Unlimited | 3100, Products Unlimited | 3100, Products Unlimited | 3100, Products Unlimited | 3100, Products Unlimited |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Coil Voltage | 240VAC | 24VAC | 120VAC | 240VAC | 120VAC |
| Contact Form | SPST-NO (DM) (1 Form X) | SPST-NO (DM) (1 Form X) | SPST-NO (DM) (1 Form X) | DPST-NO (DM) (2 Form X) | DPST-NO (DM) (2 Form X) |
| Contact Rating (Current) | 25 A | 30 A | 25 A | 26 A | 40 A |
| Switching Voltage | 600VAC - Max | 600VAC - Max | 600VAC - Max | 600VAC - Max | 600VAC - Max |
| Features | Insulation - Class B | Insulation - Class B | Insulation - Class B | Insulation - Class B | Insulation - Class B |
| Termination Style | Screw Terminal, Quick Connect - 0.250" (6.3mm) | Screw Terminal, Quick Connect - 0.250" (6.3mm) | Screw Terminal, Quick Connect - 0.250" (6.3mm) | Screw Terminal, Quick Connect - 0.250" (6.3mm) | Screw Terminal, Quick Connect - 0.250" (6.3mm) |
| Operating Temperature | -40°C ~ 65°C | -40°C ~ 65°C | -40°C ~ 65°C | -40°C ~ 65°C | -40°C ~ 65°C |
| Must Operate Voltage | 177 VAC | 18 VAC | 88 VAC | 177 VAC | 88 VAC |
| Must Release Voltage | 40 VAC | 6 VAC | 20 VAC | 40 VAC | 20 VAC |
