Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

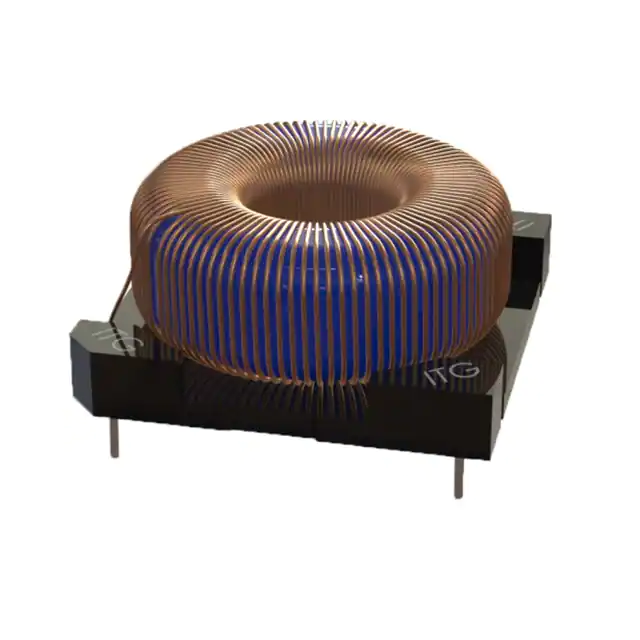

L301307-452KFIXED IND 4.5MH 2.4A 350MOHM TH ITG Electronics, Inc. |
9 |
|
Datasheet
|
L301307 | Radial, Horizontal, 4 Leads (Open) | Tray | Active | Toroidal | Sendust | 4.5 mH | ±10% | 2.4 A | 920mA | Unshielded | 350mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | - | 1.713" L x 1.713" W (43.50mm x 43.50mm) | 0.984" (25.00mm) |
|
|
L301307-542KFIXED IND 5.4MH 2.1A 480MOHM TH ITG Electronics, Inc. |
9 |
|
Datasheet
|
L301307 | Radial, Horizontal, 4 Leads (Open) | Tray | Active | Toroidal | Sendust | 5.4 mH | ±10% | 2.1 A | 900mA | Unshielded | 480mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | - | 1.713" L x 1.713" W (43.50mm x 43.50mm) | 0.984" (25.00mm) |
|
|
L301307-182KFIXED IND 1.8MH 4A 125 MOHM TH ITG Electronics, Inc. |
9 |
|
Datasheet
|
L301307 | Radial, Horizontal, 4 Leads (Open) | Tray | Active | Toroidal | Sendust | 1.8 mH | ±10% | 4 A | 1.5A | Unshielded | 125mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | - | 1.713" L x 1.713" W (43.50mm x 43.50mm) | 1.102" (28.00mm) |
|
|
L301307-702KFIXED IND 7MH 1.8A 650 MOHM TH ITG Electronics, Inc. |
9 |
|
Datasheet
|
L301307 | Radial, Horizontal, 4 Leads (Open) | Tray | Active | Toroidal | Sendust | 7 mH | ±10% | 1.8 A | 700mA | Unshielded | 650mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | - | 1.713" L x 1.713" W (43.50mm x 43.50mm) | 0.984" (25.00mm) |
|
L301308-821K820uH, 10%, 81.0mOhm, 8.9A. Max. ITG Electronics, Inc. |
6 |
|
Datasheet
|
L301308 | Horizontal, 4 PC Pin | Tray | Active | Toroidal | Alloy | 820 µH | ±10% | 9.5 A | 8.9A | Unshielded | 81mOhm | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | SMD | 2.106" L x 2.106" W (53.50mm x 53.50mm) | 1.260" (32.00mm) |
|
|
L301308-102K1.0mH, 10%, 106.5mOhm, 8.1A. Max ITG Electronics, Inc. |
6 |
|
Datasheet
|
L301308 | Horizontal, 4 PC Pin | Tray | Active | Toroidal | Sendust | 1 mH | ±10% | 8.3 A | 8.1A | Unshielded | 106.5mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | Horizontal, 4 PC Pin | 2.106" L x 2.106" W (53.50mm x 53.50mm) | 1.260" (32.00mm) |
|
|
L301308-201K205uH, 10%, 20.5mOhm, 17.9A. Max ITG Electronics, Inc. |
6 |
|
Datasheet
|
L301308 | Horizontal, 4 PC Pin | Tray | Active | Toroidal | Alloy | 205 µH | ±10% | 21 A | 17.9A | Unshielded | 20.5mOhm | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | SMD | 2.106" L x 2.106" W (53.50mm x 53.50mm) | 1.378" (35.00mm) |
|
|
DMP282829A-111MHFFLAT WIRE DIP 115UH 11.9M 16.8A ITG Electronics, Inc. |
16 |
|
Datasheet
|
DMP282829A | Radial, Horizontal, 4 Leads | Bulk | Active | Wirewound | Alloy Powder | 115 µH | ±20% | 16.5 A | 7.6A | Unshielded | 11.9mOhm | - | - | - | -55°C ~ 150°C | 100 kHz | - | Through Hole | Radial | 1.083" L x 1.122" W (27.50mm x 28.50mm) | 1.102" (28.00mm) |
|
L301308-542KFIXED IND 5.4MH 2.2A 820MOHM TH ITG Electronics, Inc. |
6 |
|
Datasheet
|
L301308 | Radial, Horizontal, 4 Leads (Open) | Tray | Active | Toroidal | Alloy | 5.4 mH | ±10% | 2.2 A | 3.5A | Unshielded | 820mOhm | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | SMD | 2.106" L x 2.106" W (53.50mm x 53.50mm) | 1.201" (30.50mm) |
|
|
L301308-702KFIXED IND 7MH 1.9A 1.1 OHM TH ITG Electronics, Inc. |
6 |
|
Datasheet
|
L301308 | Radial, Horizontal, 4 Leads (Open) | Tray | Active | Toroidal | Alloy | 7 mH | ±10% | 1.9 A | 3A | Unshielded | 1.1Ohm | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | SMD | 2.106" L x 2.106" W (53.50mm x 53.50mm) | 1.201" (30.50mm) |
