Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFC282820B-500MHFPFC CHOKE 50.0UH, 37.9A, 6.8 M ITG Electronics, Inc. |
14 |
|
Datasheet
|
- | Radial, Horizontal, 4 Leads | Bulk | Active | Wirewound | Alloy Powder | 50 µH | ±20% | 21 A | 19.5A | Unshielded | 6.8mOhm | - | - | - | -55°C ~ 150°C | 100 kHz | - | Through Hole | Radial | 1.083" L x 0.787" W (27.50mm x 20.00mm) | 1.102" (28.00mm) |
|

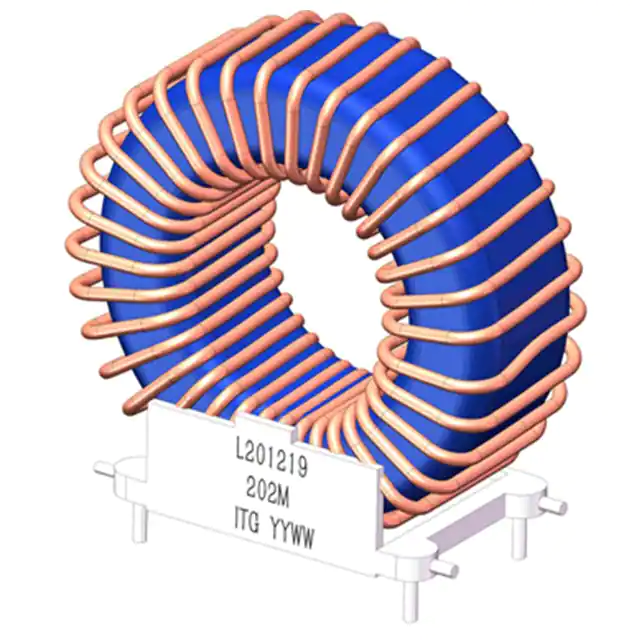

L201219-630MHF62.8uH, 20%, 9.1 mOhm DCR, 17A D ITG Electronics, Inc. |
20 |
|
Datasheet
|
L201219 | Radial, Vertical Cylinder, 4 Leads (Open) | Bulk | Active | Toroidal | Alloy Powder | 62.8 µH | ±20% | 17 A | 12A | Unshielded | 9.1mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | - | 1.319" L x 0.787" W (33.50mm x 20.00mm) | 1.457" (37.00mm) |
|
|
L201219-400MHF40.2uH, 20%, 4.8 mOhm DCR, 24A D ITG Electronics, Inc. |
19 |
|
Datasheet
|
L201219 | Radial, Vertical Cylinder, 4 Leads (Open) | Bulk | Active | Toroidal | Alloy Powder | 40.2 µH | ±20% | 24 A | 15A | Unshielded | 4.8mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | - | 1.358" L x 0.669" W (34.50mm x 17.00mm) | 1.260" (32.00mm) |
|
|
L201219-251MHF251.2uH, 20%, 28 mOhm DCR, 9A DI ITG Electronics, Inc. |
16 |
|
Datasheet
|
L201219 | Radial, Vertical Cylinder, 4 Leads (Open) | Bulk | Active | Toroidal | Alloy Powder | 251.2 µH | ±20% | 9 A | 6A | Unshielded | 28mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | - | 1.319" L x 0.787" W (33.50mm x 20.00mm) | 1.457" (37.00mm) |
|
|
L201219-113MHF11360uH, 20%, 1250 mOhm DCR, 1.2 ITG Electronics, Inc. |
13 |
|
Datasheet
|
L201219 | Radial, Vertical Cylinder, 4 Leads (Open) | Bulk | Active | Toroidal | Alloy Powder | 11.36 mH | ±20% | 1.2 A | 880mA | Unshielded | 1.25Ohm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | - | 1.319" L x 0.787" W (33.50mm x 20.00mm) | 1.457" (37.00mm) |
|
|
L201219-202MHF1970uH, 20%, 195 mOhm DCR, 3.3A ITG Electronics, Inc. |
12 |
|
Datasheet
|
L201219 | Radial, Vertical Cylinder, 4 Leads (Open) | Bulk | Active | Toroidal | Alloy Powder | 1.97 mH | ±20% | 3.3 A | 2.1A | Unshielded | 195mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | - | 1.319" L x 0.787" W (33.50mm x 20.00mm) | 1.457" (37.00mm) |
|
|
PFC333236B-241MHFPFC CHOKE 240.0UH 27.3A 16.5 M ITG Electronics, Inc. |
8 |
|
Datasheet
|
PFC | Vertical, 4 PC Pin | Bulk | Active | Wirewound | Alloy Powder | 240 µH | ±20% | 18.5 A | 14.6A | Unshielded | 16.5mOhm | - | - | - | -55°C ~ 150°C | 100 kHz | - | Through Hole | Vertical, 4 PC Pin | 1.299" L x 1.417" W (33.00mm x 36.00mm) | 1.244" (31.60mm) |
|
|
PFC433835B-111MHFPFC CHOKE 115.0UH 44.5AMP 7.7M ITG Electronics, Inc. |
4 |
|
Datasheet
|
PFC | Vertical, 4 PC Pin | Bulk | Active | Wirewound | Alloy Powder | 115 µH | ±20% | 31 A | 23A | Unshielded | 7.7mOhm | - | - | - | -55°C ~ 150°C | 100 kHz | - | Through Hole | Vertical, 4 PC Pin | 1.693" L x 1.378" W (43.00mm x 35.00mm) | 1.496" (38.00mm) |
|
|
SMF252012A-R33MHFMolded Inductor.33uH7.8mOhm9.5A ITG Electronics, Inc. |
1,000 |
|
Datasheet
|
SMF252010A | 1008 (2520 Metric) | Strip | Active | Molded | Metal | 330 nH | ±20% | 8 A | 9.5A | Unshielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
SMF252010A-R47MHFMolded Inductor.47uH 15.5mOhm 6A ITG Electronics, Inc. |
1,000 |
|
Datasheet
|
SMF252010A | 1008 (2520 Metric) | Strip | Active | Molded | Metal | 470 nH | ±20% | 5.5 A | 6A | Unshielded | 18mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
