Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

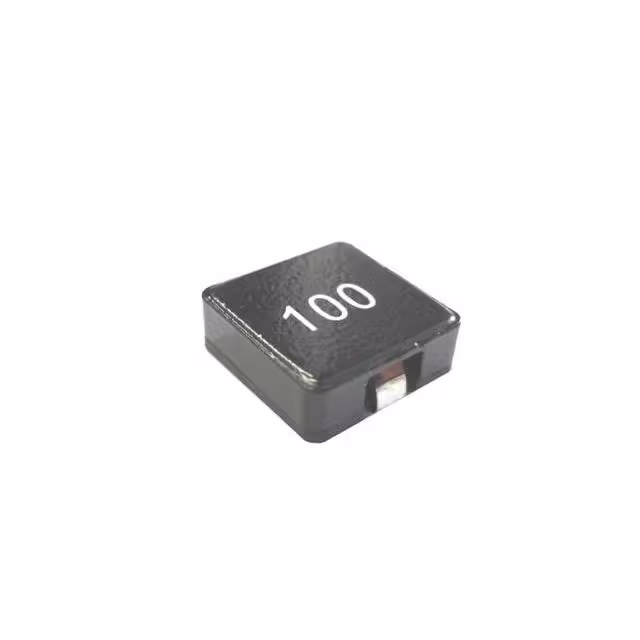

CTSFW1350F-100MSMD SHIELDED POWER INDUCTOR Central Technologies |
5 |
|
Datasheet
|
CTSFW1350F | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 8.5 A | 10A | Shielded | 15.51Ohm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.213" (5.40mm) |
|
|
CTSFW1350F-R47MSMD SHIELDED POWER INDUCTOR Central Technologies |
5 |
|
Datasheet
|
CTSFW1350F | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 nH | ±20% | 26 A | 50A | Shielded | 0.99mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.213" (5.40mm) |
|

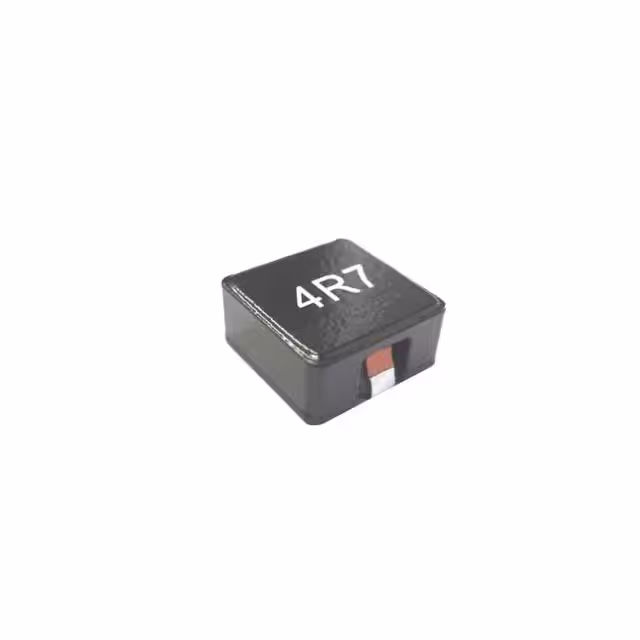

CTSFW1365F-4R7MSMD SHIELDED POWER INDUCTOR Central Technologies |
5 |
|
Datasheet
|
CTSFW1365F | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 13 A | 15A | Shielded | 7.7mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.256" (6.50mm) |
|

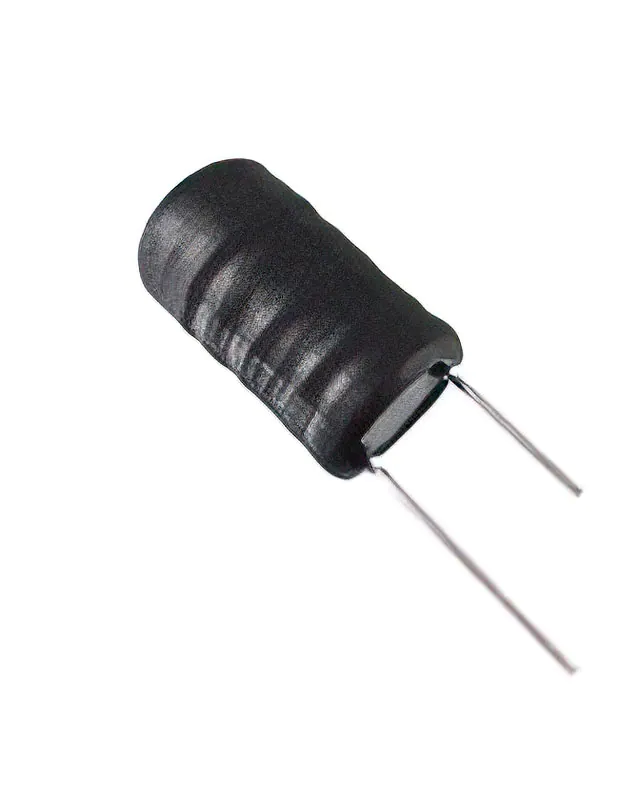

CTRL5480F-4-100K10UH RADIAL FIXED INDUCTOR Central Technologies |
5 |
|
- |
CTRL5480F-4 | Radial, Vertical Cylinder | Bulk | Active | - | - | 10 µH | ±10% | 2.6 A | 8.8A | Unshielded | 31mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.449" Dia (11.40mm) | 0.709" (18.00mm) |
|
|
CTRL5480F-4-103K100UH RADIAL FXED INDUCTR Central Technologies |
5 |
|
- |
CTRL5480F-4 | Radial, Vertical Cylinder | Bulk | Active | - | - | 10 mH | ±10% | 190 mA | 285mA | Unshielded | 10.5Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.449" Dia (11.40mm) | 0.709" (18.00mm) |
|
|
CTRL5480F-4-102K1000UH RADIAL FIXED INDUCTR Central Technologies |
3 |
|
- |
CTRL5480F-4 | Radial, Vertical Cylinder | Bulk | Active | - | - | 1 mH | ±10% | 490 mA | 880mA | Unshielded | 1.2Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.449" Dia (11.40mm) | 0.709" (18.00mm) |
|

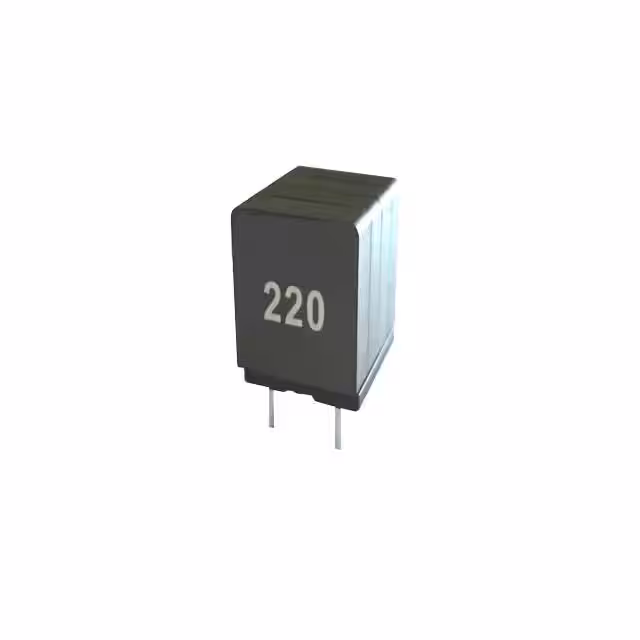

CTDAT1415F-100MSMD SHLD PWR INDUCTOR FOR DIG AM Central Technologies |
1 |
|
Datasheet
|
CTDAT1415F | Vertical, 4 PC Pin | Bulk | Active | - | - | 10 µH | ±20% | 8 A | 13A | Shielded | 13.5mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Vertical, 4 PC Pin | 0.610" L x 0.551" W (15.50mm x 14.00mm) | 0.630" (16.00mm) |
|

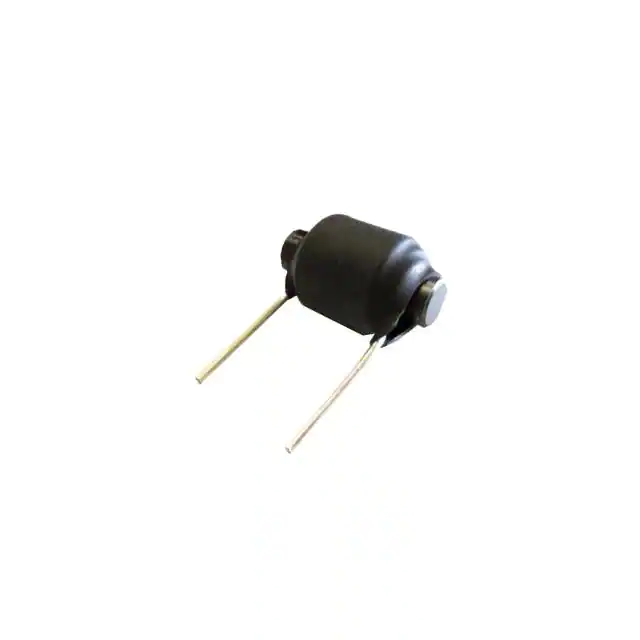

CTHR15F-500K50UH FILTER INDUCTOR Central Technologies |
1 |
|
Datasheet
|
CTHRF | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 50 µH | ±10% | 15 A | 10A | Unshielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.000" Dia (25.40mm) | 1.625" (41.28mm) |
|

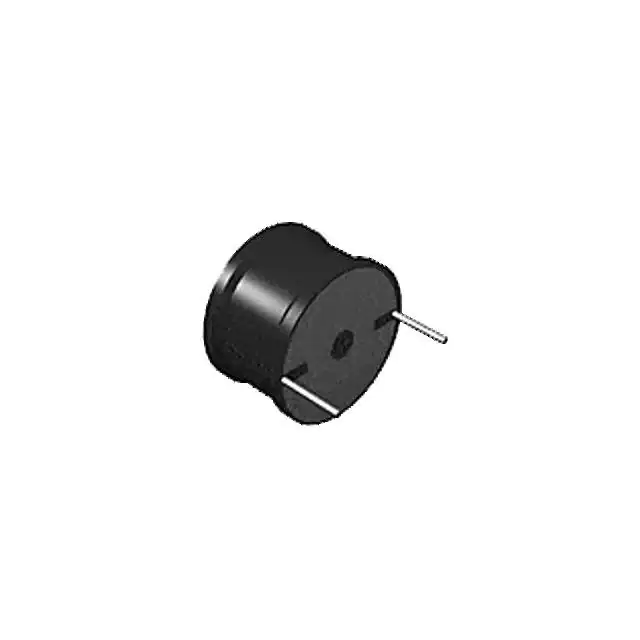

CTDR3F-821K820UH RADIAL DRUM CORE INDUCTOR Central Technologies |
2 |
|
Datasheet
|
CTDR3F | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 820 µH | ±10% | - | 2.8A | Unshielded | 288mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 1.102" Dia (28.00mm) | 0.866" (22.00mm) |
|
CTSFW1890F-6R8MSMD FLAT WIRE POWER INDUCTOR Central Technologies |
5 |
|
Datasheet
|
CTSFW1890F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 18.5 A | 28A | Shielded | 4.5mOhm Max | - | - | - | -55°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.717" W (18.30mm x 18.20mm) | 0.362" (9.20mm) |
