Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

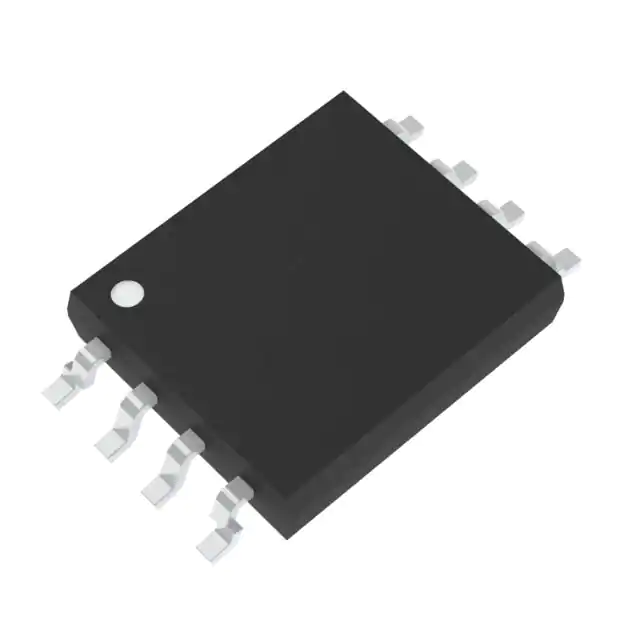

PS9332L2-AXOPTOISO 5KV 1CH GATE DVR 8SOIC Renesas Electronics Corporation |
360 |
|
Datasheet
|
- | 8-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 200ns, 200ns | 75ns | 17ns, 17ns | 1.5A, 1.5A | 2A | 1.56V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CSA, UL, VDE |
|
|
PS9332L-V-AXOPTOISO 5KV 1CH GATE DVR 8SOIC Renesas Electronics Corporation |
340 |
|
Datasheet
|
- | 8-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 200ns, 200ns | 75ns | 17ns, 17ns | 1.5A, 1.5A | 2A | 1.56V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CSA, UL, VDE |
|
PS9402-AXOPTOISO 5KV 1CH GATE DVR 16SSOP Renesas Electronics Corporation |
0 |
|
Datasheet
|
- | 16-SOIC (0.295", 7.50mm Width) | Bulk | Not For New Designs | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 200ns, 200ns | 100ns | 50ns, 50ns | 2A, 2A | 2.5A | 1.56V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 16-SSOP | CSA, UL |
|
|
PS9402-V-AXOPTOISO 5KV 1CH GATE DVR 16SSOP Renesas Electronics Corporation |
0 |
|
Datasheet
|
- | 16-SOIC (0.295", 7.50mm Width) | Strip | Not For New Designs | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 200ns, 200ns | 100ns | 50ns, 50ns | 2A, 2A | 2.5A | 1.56V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 16-SSOP | CSA, UL, VDE |
|
PS9552L3-E3-AXOPTOISO 5KV 1CH GATE DVR 8SMD Renesas |
48,500 |
|
Datasheet
|
NEPOC | 8-SMD, Gull Wing | Bulk | Obsolete | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.65V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | BSI, CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL |
|
|
PS9552L2-E3-AXOPTOISO 5KV 1CH GATE DVR 8SMD Renesas |
13,000 |
|
Datasheet
|
NEPOC | 8-SMD, Gull Wing | Bulk | Obsolete | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.65V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | BSI, CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL |
|
|
PS9552-AXOPTOISO 5KV 1CH GATE DVR 8DIP Renesas |
5,288 |
|
Datasheet
|
NEPOC | 8-DIP (0.300", 7.62mm) | Bulk | Obsolete | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.65V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | BSI, CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL |
|
|
PS9552L3-V-E3-AXOPTOISO 5KV 1CH GATE DVR 8SMD Renesas |
4,000 |
|
Datasheet
|
NEPOC | 8-SMD, Gull Wing | Bulk | Obsolete | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.65V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | BSI, CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL, VDE |
|
|
PS9552L2-AXOPTOISO 5KV 1CH GATE DVR 8SMD Renesas |
1,476 |
|
Datasheet
|
NEPOC | 8-SMD, Gull Wing | Bulk | Obsolete | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.65V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | BSI, CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL |
|
|
PS9552-V-AXOPTOISO 5KV 1CH GATE DVR 8DIP Renesas |
694 |
|
Datasheet
|
NEPOC | 8-DIP (0.300", 7.62mm) | Bulk | Obsolete | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.65V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | BSI, CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL, VDE |
