Advanced Photonix 012-UVC-011
- Part No.:
- 012-UVC-011
- Manufacturer:
- Advanced Photonix
- Category:
- Photodiodes
- Package:
- -
- Datasheet:
-
012-UVC-011.pdf
- Description:
- SENSOR PHOTODIODE 210-280NM TO46
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
012-UVC-011 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Advanced Photonix
- Series:
- -
- Package/Case:
- -
- Packaging:
- Bulk
- Product Status:
- Active
- Wavelength:
- -
- Color - Enhanced:
- -
- Spectral Range:
- 210nm ~ 280nm
- Diode Type:
- -
- Responsivity @ nm:
- 0.06 A/W @ 275nm
- Response Time:
- -
- Voltage - DC Reverse (Vr) (Max):
- 5 V
- Current - Dark (Typ):
- 100nA
- Active Area:
- -
- Viewing Angle:
- 55°
- Operating Temperature:
- -40°C ~ 125°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Through Hole
- Datasheet:
-
012-UVC-011.pdf
| Image |  |
 |
 |
 |
 |

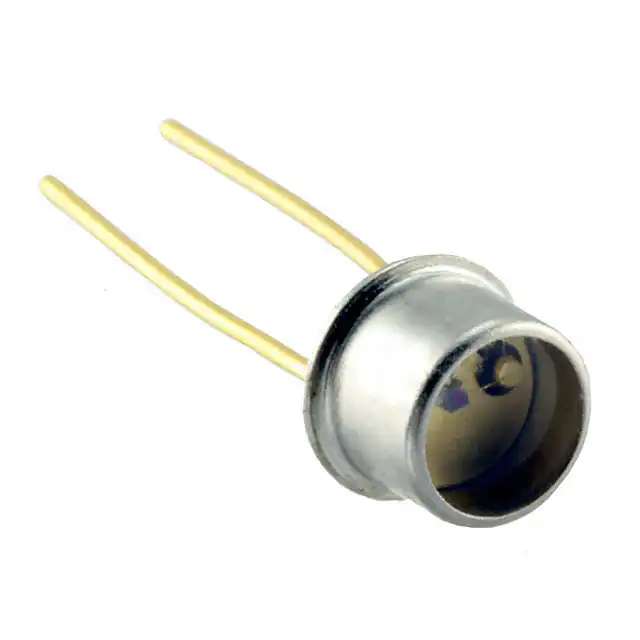

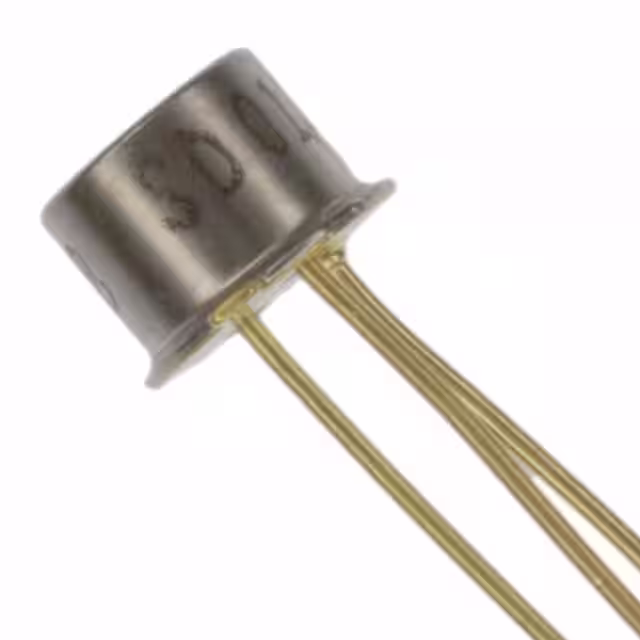

| Part Number | 012-UVA-011 | 012-UVB-011 | 012-UVC-011 | 012-121-011 | 012-11-41-211 |
| Manufacturer | Advanced Photonix | Advanced Photonix | Advanced Photonix | Advanced Photonix | Advanced Photonix |
| Series | - | - | - | - | - |
| Package/Case | - | - | - | - | TO-46-3 Lens Top Metal Can |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Obsolete |
| Wavelength | - | - | - | - | - |
| Color - Enhanced | - | - | - | - | - |
| Spectral Range | 220nm ~ 370nm | 220nm ~ 330nm | 210nm ~ 280nm | 450nm ~ 1700nm | 800nm ~ 1700nm |
| Diode Type | - | - | - | - | - |
| Responsivity @ nm | 0.18 A/W @ 350nm | 0.14 A/W @ 290nm | 0.06 A/W @ 275nm | 0.90 A/W @ 1600nm | 0.92 A/W @ 1310nm |
| Response Time | - | - | - | - | 1.15ns |
| Voltage - DC Reverse (Vr) (Max) | 5 V | 5 V | 5 V | 20 V | 75 V |
| Current - Dark (Typ) | 100nA | 100nA | 100nA | 120nA | 1nA |
| Active Area | - | - | - | - | 0.30mm Dia |
| Viewing Angle | 55° | 55° | 55° | - | 88° |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | 0°C ~ 85°C | -40°C ~ 85°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
