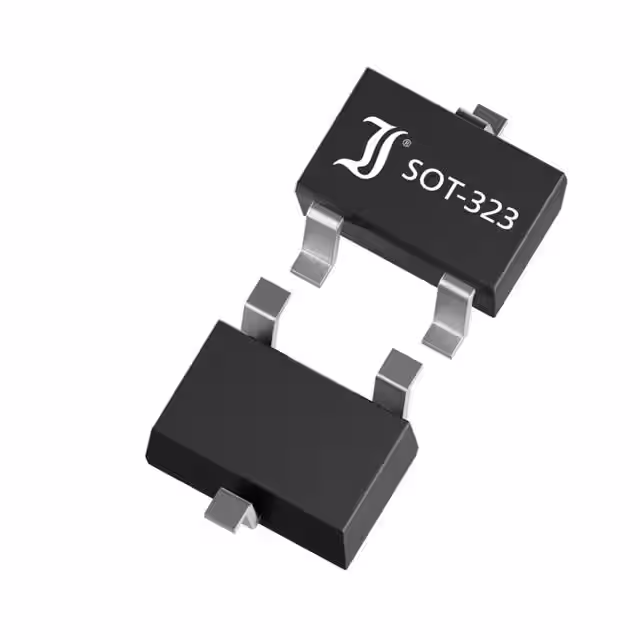

Diotec Semiconductor BAS21W
- Part No.:
- BAS21W
- Manufacturer:
- Diotec Semiconductor
- Category:
- Single Diodes
- Package:
- SC-70, SOT-323
- Datasheet:
-
BAS21W.pdf
- Description:
- SMALL SIGNAL DIODE SOT-323 250V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
BAS21W Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Diotec Semiconductor
- Series:
- -
- Package/Case:
- SC-70, SOT-323
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Technology:
- Standard
- Voltage - DC Reverse (Vr) (Max):
- 200 V
- Current - Average Rectified (Io):
- 200mA
- Voltage - Forward (Vf) (Max) @ If:
- 1.25 V @ 200 mA
- Speed:
- Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr):
- 50 ns
- Current - Reverse Leakage @ Vr:
- 100 nA @ 200 V
- Capacitance @ Vr, F:
- 5pF @ 0V, 1MHz
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- SOT-323
- Operating Temperature - Junction:
- -55°C ~ 150°C
- Datasheet:
-
BAS21W.pdf
| Image |  |
|
|
 |
|
| Part Number | BAS21W | BAS21WR13 | BAS21W | BAS21W-AQ | BAS21W |
| Manufacturer | Diotec Semiconductor | Diotec Semiconductor | Diotec Semiconductor | Diotec Semiconductor | Diotec Semiconductor |
| Series | - | - | - | - | - |
| Package/Case | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 |
| Packaging | Tape & Reel (TR) | Bulk | Bulk | Bulk | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Technology | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200 V | 200 V | 200 V | 200 V | 200 V |
| Current - Average Rectified (Io) | 200mA | 200mA | 200mA | 200mA | 200mA |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 200 mA | 1.25 V @ 200 mA | 1.25 V @ 200 mA | 1.25 V @ 200 mA | 1.25 V @ 200 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 50 ns | 50 ns | 50 ns | 50 ns | 50 ns |
| Current - Reverse Leakage @ Vr | 100 nA @ 200 V | 100 nA @ 200 V | 100 nA @ 200 V | 100 nA @ 200 V | 100 nA @ 200 V |
| Capacitance @ Vr, F | 5pF @ 0V, 1MHz | 5pF @ 0V, 1MHz | 5pF @ 0V, 1MHz | 5pF @ 0V, 1MHz | 5pF @ 0V, 1MHz |
| Grade | - | - | - | Automotive | - |
| Qualification | - | - | - | AEC-Q101 | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SOT-323 | SOT-323 | SOT-323 | SOT-323 | SOT-323 |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
