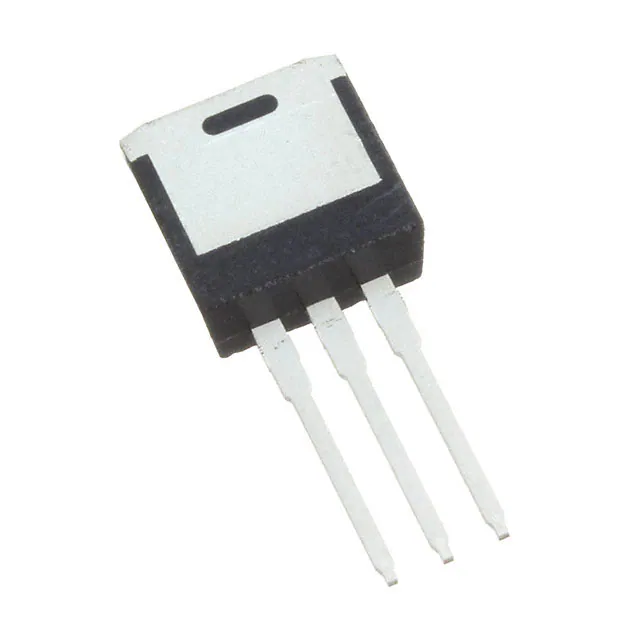

Infineon Technologies IPI086N10N3GXKSA1
- Part No.:
- IPI086N10N3GXKSA1
- Manufacturer:
- Infineon Technologies
- Category:
- FETs, MOSFETs
- Package:
- TO-262-3 Long Leads, I2PAK, TO-262AA
- Datasheet:
-
IPI086N10N3GXKSA1.pdf
- Description:
- MOSFET N-CH 100V 80A TO262-3
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
IPI086N10N3GXKSA1 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Infineon Technologies
- Series:
- OptiMOS™
- Package/Case:
- TO-262-3 Long Leads, I2PAK, TO-262AA
- Packaging:
- Tube
- Product Status:
- Active
- FET Type:
- N-Channel
- Technology:
- MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):
- 100 V
- Current - Continuous Drain (Id) @ 25°C:
- 80A (Tc)
- Drive Voltage (Max Rds On, Min Rds On):
- 6V, 10V
- Rds On (Max) @ Id, Vgs:
- 8.6mOhm @ 73A, 10V
- Vgs(th) (Max) @ Id:
- 3.5V @ 75µA
- Gate Charge (Qg) (Max) @ Vgs:
- 55 nC @ 10 V
- Vgs (Max):
- ±20V
- Input Capacitance (Ciss) (Max) @ Vds:
- 3980 pF @ 50 V
- FET Feature:
- -
- Power Dissipation (Max):
- 125W (Tc)
- Operating Temperature:
- -55°C ~ 175°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Through Hole
- Supplier Device Package:
- PG-TO262-3
- Datasheet:
-
IPI086N10N3GXKSA1.pdf
| Image |  |
| Part Number | IPI086N10N3GXKSA1 |
| Manufacturer | Infineon Technologies |
| Series | OptiMOS™ |
| Package/Case | TO-262-3 Long Leads, I2PAK, TO-262AA |
| Packaging | Tube |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 80A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 8.6mOhm @ 73A, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 75µA |
| Gate Charge (Qg) (Max) @ Vgs | 55 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3980 pF @ 50 V |
| FET Feature | - |
| Power Dissipation (Max) | 125W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Supplier Device Package | PG-TO262-3 |
