Infineon Technologies IRFH8311TRPBF
- Part No.:
- IRFH8311TRPBF
- Manufacturer:
- Infineon Technologies
- Category:
- FETs, MOSFETs
- Package:
- 8-TQFN Exposed Pad
- Datasheet:
-
IRFH8311TRPBF.pdf
- Description:
- MOSFET N CH 30V 32A PQFN5X6
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
IRFH8311TRPBF Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Infineon Technologies
- Series:
- HEXFET®
- Package/Case:
- 8-TQFN Exposed Pad
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- FET Type:
- N-Channel
- Technology:
- MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):
- 30 V
- Current - Continuous Drain (Id) @ 25°C:
- 32A (Ta), 169A (Tc)
- Drive Voltage (Max Rds On, Min Rds On):
- 4.5V, 10V
- Rds On (Max) @ Id, Vgs:
- 2.1mOhm @ 20A, 10V
- Vgs(th) (Max) @ Id:
- 2.35V @ 100µA
- Gate Charge (Qg) (Max) @ Vgs:
- 66 nC @ 10 V
- Vgs (Max):
- ±20V
- Input Capacitance (Ciss) (Max) @ Vds:
- 4960 pF @ 10 V
- FET Feature:
- -
- Power Dissipation (Max):
- 3.6W (Ta), 96W (Tc)
- Operating Temperature:
- -55°C ~ 150°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- PQFN (5x6)
- Datasheet:
-
IRFH8311TRPBF.pdf

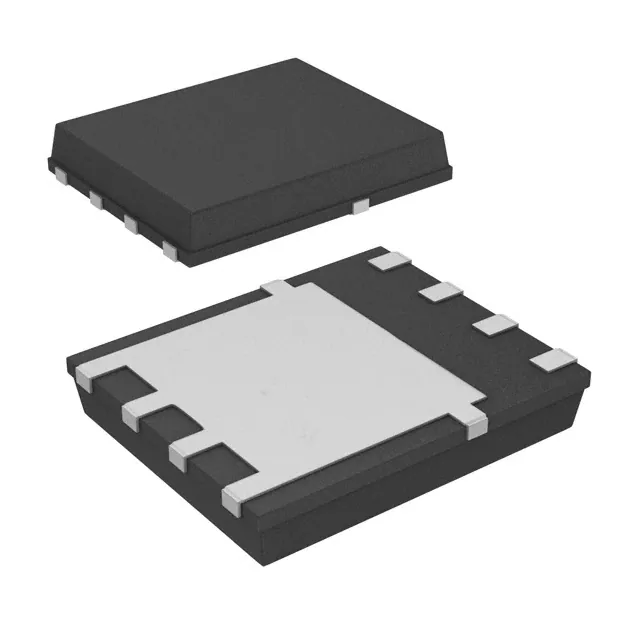

| Image |  |
| Part Number | IRFH8311TRPBF |
| Manufacturer | Infineon Technologies |
| Series | HEXFET® |
| Package/Case | 8-TQFN Exposed Pad |
| Packaging | Tape & Reel (TR) |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 32A (Ta), 169A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 2.1mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2.35V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | 66 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4960 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.6W (Ta), 96W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | PQFN (5x6) |
