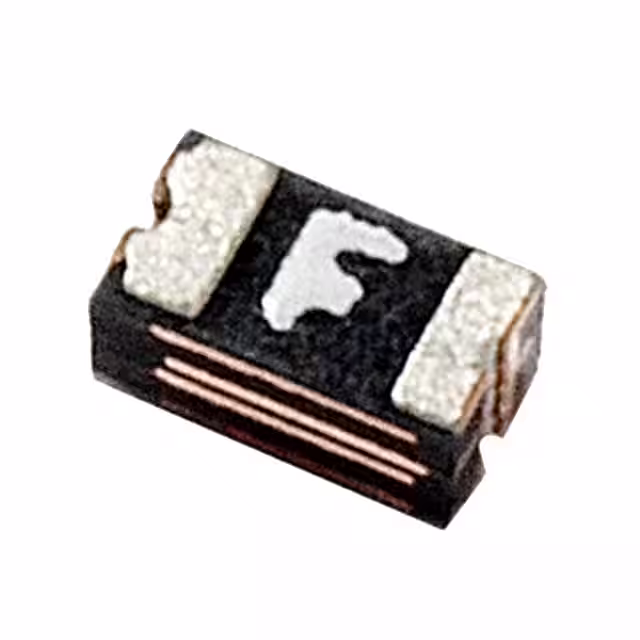

Littelfuse Inc. 0603L175SLYR
- Part No.:
- 0603L175SLYR
- Manufacturer:
- Littelfuse Inc.
- Category:
- PTC Resettable Fuses
- Package:
- 0603 (1608 Metric), Concave
- Datasheet:
-
0603L175SLYR.pdf
- Description:
- PTC RESET FUSE 6V 1.75A 0603
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
0603L175SLYR Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Littelfuse Inc.
- Package/Case:
- 0603 (1608 Metric), Concave
- Series:
- POLY-FUSE®, LoRho
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Polymeric
- Voltage - Max:
- 6V
- Current - Hold (Ih) (Max):
- 1.75 A
- Current - Trip (It):
- 3.5 A
- Current - Max:
- 50 A
- Time to Trip:
- 600 ms
- Resistance - Initial (Ri) (Min):
- 5 mOhms
- Resistance - Post Trip (R1) (Max):
- 60 mOhms
- Resistance - 25°C (Typ):
- -
- Operating Temperature:
- -40°C ~ 85°C
- Grade:
- -
- Qualification:
- -
- Ratings:
- -
- Mounting Type:
- Surface Mount
- Size / Dimension:
- 0.063" L x 0.032" W (1.60mm x 0.80mm)
- Height - Seated (Max):
- -
- Thickness (Max):
- 0.039" (1.00mm)
- Lead Spacing:
- -
- Datasheet:
-
0603L175SLYR.pdf
| Image |  Concave.jpg) |
 |
| Part Number | 0603L175SLYR | 0603L175SLYRT |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. |
| Package/Case | 0603 (1608 Metric), Concave | 0603 (1608 Metric), Concave |
| Series | POLY-FUSE®, LoRho | PolySwitch®, LoRho |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active |
| Type | Polymeric | Polymeric |
| Voltage - Max | 6V | 6V |
| Current - Hold (Ih) (Max) | 1.75 A | 1.75 A |
| Current - Trip (It) | 3.5 A | 3.5 A |
| Current - Max | 50 A | 6 A |
| Time to Trip | 600 ms | 600 ms |
| Resistance - Initial (Ri) (Min) | 5 mOhms | 5 mOhms |
| Resistance - Post Trip (R1) (Max) | 60 mOhms | 60 MOhms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Grade | - | - |
| Qualification | - | - |
| Ratings | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Size / Dimension | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | - | - |
| Thickness (Max) | 0.039" (1.00mm) | 0.040" (1.02mm) |
| Lead Spacing | - | - |
