Littelfuse Inc. LR4-1300SSF
- Part No.:
- LR4-1300SSF
- Manufacturer:
- Littelfuse Inc.
- Category:
- PTC Resettable Fuses
- Package:
- Strap
- Datasheet:
-
LR4-1300SSF.pdf
- Description:

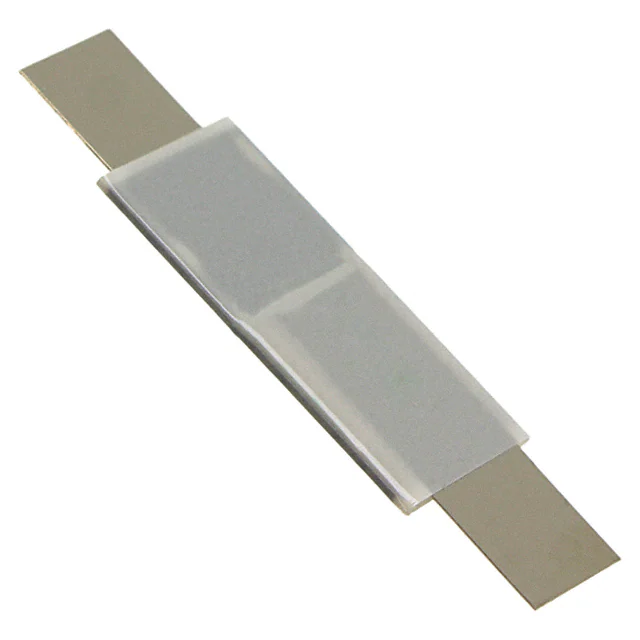

- PTC RESET FUSE 20V 13A STRAP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
LR4-1300SSF Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Littelfuse Inc.
- Package/Case:
- Strap
- Series:
- PolySwitch®, LR4
- Packaging:
- Bag
- Product Status:
- Active
- Type:
- Polymeric
- Voltage - Max:
- 20V
- Current - Hold (Ih) (Max):
- 13 A
- Current - Trip (It):
- 21.2 A
- Current - Max:
- 100 A
- Time to Trip:
- 10 s
- Resistance - Initial (Ri) (Min):
- 3.5 mOhms
- Resistance - Post Trip (R1) (Max):
- 9 mOhms
- Resistance - 25°C (Typ):
- -
- Operating Temperature:
- -40°C ~ 85°C
- Grade:
- -
- Qualification:
- -
- Ratings:
- -
- Mounting Type:
- User Defined
- Size / Dimension:
- 2.520" L x 0.382" W (64.00mm x 9.70mm)
- Height - Seated (Max):
- -
- Thickness (Max):
- -
- Lead Spacing:
- -
- Datasheet:
-
LR4-1300SSF.pdf
| Image |  |
 |
 |
 |
 |
| Part Number | LR4-450F | LR4-1300SSF | LR4-380F | LR4-600F | LR4-550F |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Package/Case | Strap | Strap | Strap | Strap | Strap |
| Series | PolySwitch®, LR4 | PolySwitch®, LR4 | PolySwitch®, LR4 | PolySwitch®, LR4 | PolySwitch®, LR4 |
| Packaging | Bag | Bag | Bag | Bag | Bag |
| Product Status | Active | Active | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 20V | 20V | 15V | 20V | 20V |
| Current - Hold (Ih) (Max) | 4.5 A | 13 A | 3.8 A | 6 A | 5.5 A |
| Current - Trip (It) | 8.9 A | 21.2 A | 8.3 A | 11.7 A | 10.5 A |
| Current - Max | 100 A | 100 A | 100 A | 100 A | 100 A |
| Time to Trip | 5 s | 10 s | 5 s | 5 s | 5 s |
| Resistance - Initial (Ri) (Min) | 11 mOhms | 3.5 mOhms | 13 mOhms | 7 mOhms | 9 mOhms |
| Resistance - Post Trip (R1) (Max) | 28 mOhms | 9 mOhms | 37 mOhms | 19 mOhms | 22 mOhms |
| Resistance - 25°C (Typ) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Mounting Type | User Defined | User Defined | User Defined | User Defined | User Defined |
| Size / Dimension | 0.984" L x 0.413" W (25.00mm x 10.50mm) | 2.520" L x 0.382" W (64.00mm x 9.70mm) | 0.984" L x 0.283" W (25.00mm x 7.20mm) | 0.984" L x 0.559" W (25.00mm x 14.20mm) | 1.417" L x 0.283" W (36.00mm x 7.20mm) |
| Height - Seated (Max) | - | - | - | - | - |
| Thickness (Max) | 0.039" (1.00mm) | - | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
| Lead Spacing | - | - | - | - | - |
