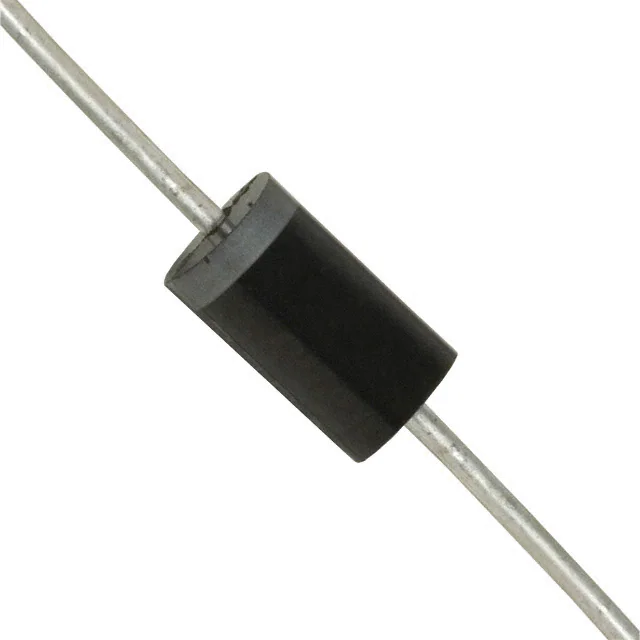

Littelfuse Inc. TP1.5KE36CA
- Part No.:
- TP1.5KE36CA
- Manufacturer:
- Littelfuse Inc.
- Category:
- TVS Diodes
- Package:
- DO-201AA, DO-27, Axial
- Datasheet:
-
TP1.5KE36CA.pdf
- Description:
- TVS DIODE 30.8VWM 49.9VC DO201
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
TP1.5KE36CA Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Littelfuse Inc.
- Package/Case:
- DO-201AA, DO-27, Axial
- Series:
- TP1.5KE
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Zener
- Unidirectional Channels:
- -
- Bidirectional Channels:
- 1
- Voltage - Reverse Standoff (Typ):
- 30.8V
- Voltage - Breakdown (Min):
- 34.2V
- Voltage - Clamping (Max) @ Ipp:
- 49.9V
- Current - Peak Pulse (10/1000µs):
- 30.5A
- Power - Peak Pulse:
- 1500W (1.5kW)
- Power Line Protection:
- No
- Applications:
- -
- Capacitance @ Frequency:
- -
- Operating Temperature:
- -55°C ~ 150°C (TJ)
- Grade:
- Automotive
- Qualification:
- AEC-Q101
- Mounting Type:
- Through Hole
- Supplier Device Package:
- DO-201
- Datasheet:
-
TP1.5KE36CA.pdf
| Image |  |
 |
|
|
 |
| Part Number | TP1.5KE36CA | TP1.5KE18CA | TP1.5KE43CA | TP1.5KE33CA | TP1.5KE30A |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Package/Case | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial |
| Series | TP1.5KE | TP1.5KE | TP1.5KE | TP1.5KE | TP1.5KE |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | 1 |
| Bidirectional Channels | 1 | 1 | 1 | 1 | - |
| Voltage - Reverse Standoff (Typ) | 30.8V | 15.3V | 36.8V | 28.2V | 25.6V |
| Voltage - Breakdown (Min) | 34.2V | 17.1V | 40.9V | 31.4V | 28.5V |
| Voltage - Clamping (Max) @ Ipp | 49.9V | 25.2V | 59.3V | 45.7V | 41.4V |
| Current - Peak Pulse (10/1000µs) | 30.5A | 60.3A | 25.6A | 33.3A | 36.7A |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) |
| Power Line Protection | No | No | No | No | No |
| Applications | - | - | - | - | - |
| Capacitance @ Frequency | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Grade | Automotive | Automotive | Automotive | Automotive | Automotive |
| Qualification | AEC-Q101 | AEC-Q101 | AEC-Q101 | AEC-Q101 | AEC-Q101 |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | DO-201 | DO-201 | DO-201 | DO-201 | DO-201 |
