Littelfuse Inc. TP5.0SMDJ130CA
- Part No.:
- TP5.0SMDJ130CA
- Manufacturer:
- Littelfuse Inc.
- Category:
- TVS Diodes
- Package:
- DO-214AB, SMC
- Datasheet:
-
TP5.0SMDJ130CA.pdf
- Description:
- TVS 5KW AECQ-101 TR13 ROHS
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
TP5.0SMDJ130CA Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Littelfuse Inc.
- Package/Case:
- DO-214AB, SMC
- Series:
- TP5.0SMDJ
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Zener
- Unidirectional Channels:
- -
- Bidirectional Channels:
- 1
- Voltage - Reverse Standoff (Typ):
- 130V
- Voltage - Breakdown (Min):
- 144V
- Voltage - Clamping (Max) @ Ipp:
- 209V
- Current - Peak Pulse (10/1000µs):
- 24A
- Power - Peak Pulse:
- 5000W (5kW)
- Power Line Protection:
- No
- Applications:
- Telecom
- Capacitance @ Frequency:
- -
- Operating Temperature:
- -65°C ~ 150°C (TJ)
- Grade:
- Automotive
- Qualification:
- AEC-Q101
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- DO-214AB (SMCJ)
- Datasheet:
-
TP5.0SMDJ130CA.pdf
| Image |  |
|
 |
 |
|
| Part Number | TP5.0SMDJ70CA | TP5.0SMDJ130CA | TP5KP24A | TP5KP51CA | TP5KP60A |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |

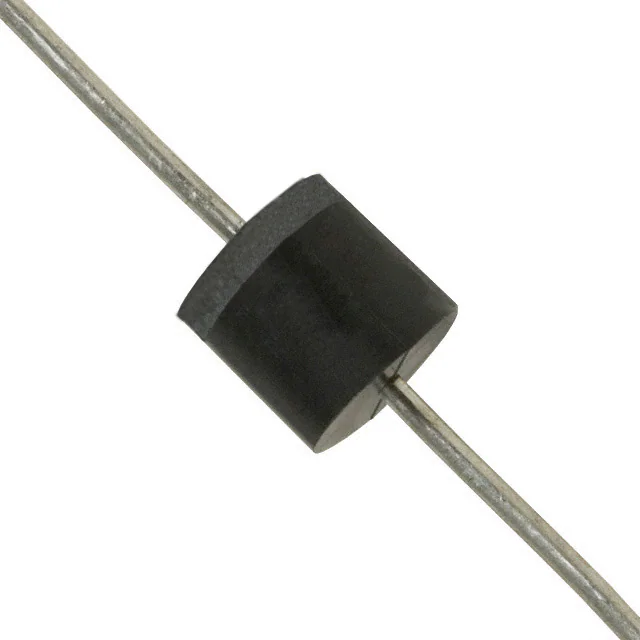

| Package/Case | DO-214AB, SMC | DO-214AB, SMC | P600, Axial | P600, Axial | P600, Axial |
| Series | TP5.0SMDJ | TP5.0SMDJ | TP5KP | TP5KP | TP5KP |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | 1 | - | 1 |
| Bidirectional Channels | 1 | 1 | - | 1 | - |
| Voltage - Reverse Standoff (Typ) | 70V | 130V | 24V | 51V | 60V |
| Voltage - Breakdown (Min) | 77.8V | 144V | 26.7V | 56.7V | 66.7V |
| Voltage - Clamping (Max) @ Ipp | 113V | 209V | 38.9V | 82.4V | 96.8V |
| Current - Peak Pulse (10/1000µs) | 44.3A | 24A | 131.1A | 61.9A | 52.7A |
| Power - Peak Pulse | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) |
| Power Line Protection | No | No | No | No | No |
| Applications | Telecom | Telecom | - | - | - |
| Capacitance @ Frequency | - | - | - | - | - |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Grade | Automotive | Automotive | Automotive | Automotive | Automotive |
| Qualification | AEC-Q101 | AEC-Q101 | AEC-Q101 | AEC-Q101 | AEC-Q101 |
| Mounting Type | Surface Mount | Surface Mount | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | DO-214AB (SMCJ) | DO-214AB (SMCJ) | P600 | P600 | P600 |
