MACOM Technology Solutions JHS-139-PIN
- Part No.:
- JHS-139-PIN
- Manufacturer:
- MACOM Technology Solutions
- Category:
- RF Directional Coupler
- Package:
- SF-1
- Datasheet:
-
JHS-139-PIN.pdf
- Description:
- HYBRID,QUADRATURE
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
JHS-139-PIN Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- MACOM Technology Solutions
- Series:
- -
- Packaging:
- Tray
- Product Status:
- Active
- Coupler Type:
- Standard
- Frequency:
- 250MHz ~ 500MHz
- Coupling Factor:
- -
- Applications:
- General Purpose
- Insertion Loss:
- 0.5dB
- Power - Max:
- 4W
- Isolation:
- 15dB
- Return Loss:
- -
- Supplier Device Package:
- SF-1
- Datasheet:
-
JHS-139-PIN.pdf

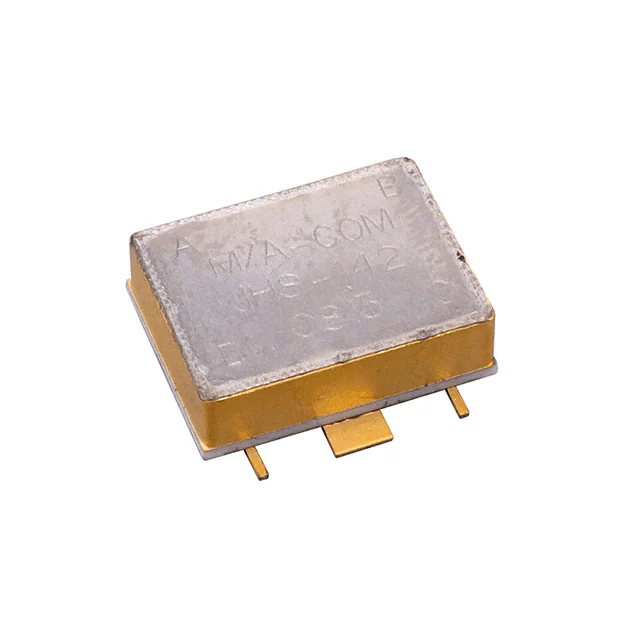

| Image |  |
 |
 |
|
 |
| Part Number | JHS-139-PIN | JHS-115-PIN | JHS-119-PIN | JHS-121-PIN | JHS-142-PIN |
| Manufacturer | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions |
| Series | - | - | - | - | - |
| Packaging | Tray | Bulk | Tray | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Coupler Type | Standard | Standard | Standard | Standard | Standard |
| Frequency | 250MHz ~ 500MHz | 40MHz ~ 80MHz | 80MHz ~ 160MHz | 100MHz ~ 200MHz | 200MHz ~ 400MHz |
| Coupling Factor | - | - | - | - | - |
| Applications | General Purpose | - | General Purpose | General Purpose | General Purpose |
| Insertion Loss | 0.5dB | 0.5dB | 0.75dB | 0.75dB | 0.5dB |
| Power - Max | 4W | 1W | 4W | 4W | 5W |
| Isolation | 15dB | 20dB | 20dB | 20dB | 18dB |
| Return Loss | - | - | - | - | - |
| Supplier Device Package | SF-1 | SF-1 | SF-1 | SF-1 | SF-1 |
