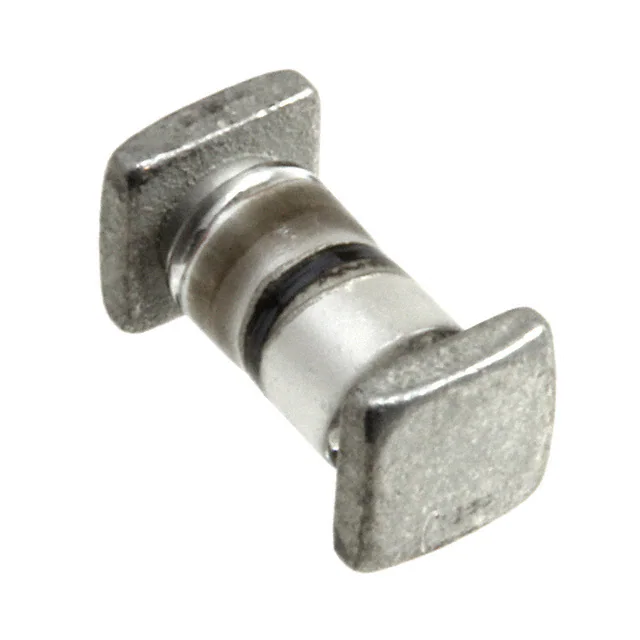

Microchip Technology 1N6113AUS
- Part No.:
- 1N6113AUS
- Manufacturer:
- Microchip Technology
- Category:
- TVS Diodes
- Package:
- SQ-MELF, B
- Datasheet:
-
1N6113AUS.pdf
- Description:
- TVS DIODE 15.2VWM 27.7VC SQ-MELF
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
1N6113AUS Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Microchip Technology
- Package/Case:
- SQ-MELF, B
- Series:
- -
- Packaging:
- Bulk
- Product Status:
- Active
- Type:
- Zener
- Unidirectional Channels:
- -
- Bidirectional Channels:
- 1
- Voltage - Reverse Standoff (Typ):
- 15.2V
- Voltage - Breakdown (Min):
- 19V
- Voltage - Clamping (Max) @ Ipp:
- 27.7V
- Current - Peak Pulse (10/1000µs):
- 18A
- Power - Peak Pulse:
- 500W
- Power Line Protection:
- No
- Applications:
- General Purpose
- Capacitance @ Frequency:
- -
- Operating Temperature:
- -55°C ~ 175°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- B, SQ-MELF
- Datasheet:
-
1N6113AUS.pdf
| Image |  |
 |
| Part Number | 1N6113AUS | 1N6113AUS/TR |
| Manufacturer | Microchip Technology | Microchip Technology |
| Package/Case | SQ-MELF, B | SQ-MELF, B |
| Series | - | - |
| Packaging | Bulk | Tape & Reel (TR) |
| Product Status | Active | Active |
| Type | Zener | Zener |
| Unidirectional Channels | - | - |
| Bidirectional Channels | 1 | 1 |
| Voltage - Reverse Standoff (Typ) | 15.2V | 15.2V |
| Voltage - Breakdown (Min) | 19V | 19V |
| Voltage - Clamping (Max) @ Ipp | 27.7V | 27.7V |
| Current - Peak Pulse (10/1000µs) | 18A | 18A |
| Power - Peak Pulse | 500W | 500W |
| Power Line Protection | No | No |
| Applications | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Grade | - | - |
| Qualification | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | B, SQ-MELF | B, SQ-MELF |
