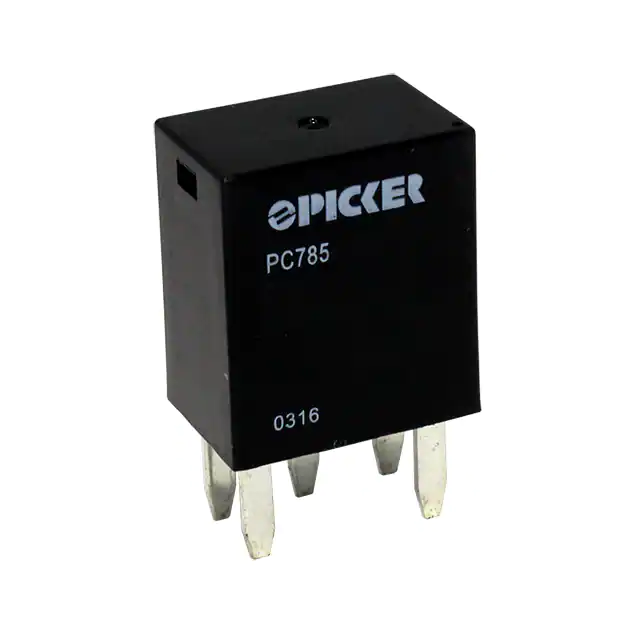

Picker Components PC785-1C-12S-R-X
- Part No.:
- PC785-1C-12S-R-X
- Manufacturer:
- Picker Components
- Category:
- Automotive Relays
- Package:
- Datasheet:
-
PC785-1C-12S-R-X.pdf
- Description:
- RELAY AUTOMOTIVE SPDT 35A 12V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PC785-1C-12S-R-X Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Picker Components
- Series:
- -
- Packaging:
- Tube
- Product Status:
- Active
- Coil Type:
- Non Latching
- Coil Current:
- 128 mA
- Coil Voltage:
- 12VDC
- Contact Form:
- SPDT (1 Form C)
- Contact Rating (Current):
- -
- Switching Voltage:
- 75VDC - Max
- Must Operate Voltage:
- 7.2 VDC
- Must Release Voltage:
- 1.2 VDC
- Operate Time:
- 5 ms
- Release Time:
- 2 ms
- Features:
- Resistor, Sealed - Fully
- Mounting Type:
- Socketable
- Termination Style:
- Plug In
- Operating Temperature:
- -40°C ~ 125°C
- Datasheet:
-
PC785-1C-12S-R-X.pdf
| Image |  |
 |
 |
 |
|
| Part Number | PC785-1C-12S-R-X | PC785-1C-12C-D-X | PC785-1C-24S-R-X | PC785-1A-12S-R-X | PC785-1C-12S-D-X |
| Manufacturer | Picker Components | Picker Components | Picker Components | Picker Components | Picker Components |
| Series | - | - | - | - | - |
| Packaging | Tube | Tray | Tube | Tube | Tube |
| Product Status | Active | Active | Active | Active | Active |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching | Non Latching |
| Coil Current | 128 mA | 110 mA | 64 mA | 127.7 mA | 110 mA |
| Coil Voltage | 12VDC | 12VDC | 24VDC | 12VDC | 12VDC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C) | SPDT (1 Form C) | SPST-NO (1 Form A) | SPDT (1 Form C) |
| Contact Rating (Current) | - | - | 17 A | 35 A | - |
| Switching Voltage | 75VDC - Max | 75VDC - Max | 75VDC - Max | 75VDC - Max | 75VDC - Max |
| Must Operate Voltage | 7.2 VDC | 7.2 VDC | 14.4 VDC | 7.2 VDC | 7.2 VDC |
| Must Release Voltage | 1.2 VDC | 1.2 VDC | 2.4 VDC | 1.2 VDC | 1.2 VDC |
| Operate Time | 5 ms | 5 ms | 5 ms | 5 ms | 5 ms |
| Release Time | 2 ms | 2 ms | 2 ms | 2 ms | 2 ms |
| Features | Resistor, Sealed - Fully | Diode | Resistor, Sealed - Fully | Resistor, Sealed - Fully | Diode, Sealed - Fully |
| Mounting Type | Socketable | Socketable | Socketable | Socketable | Socketable |
| Termination Style | Plug In | Plug In | Plug In | Plug In | Plug In |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
