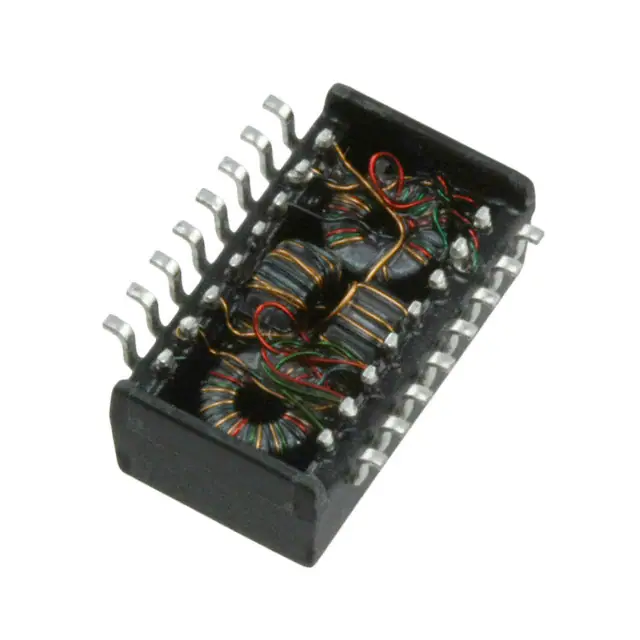

Pulse Electronics E2023
- Part No.:
- E2023
- Manufacturer:
- Pulse Electronics
- Category:
- Pulse Transformers
- Package:
- Datasheet:
-
E2023.pdf
- Description:
- PULSE XFMR 1CT:2.5CT 1CT:1CT
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
E2023 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Pulse Electronics
- Series:
- -
- Packaging:
- Tube
- Product Status:
- Obsolete
- Transformer Type:
- LAN 10G Base-T
- Inductance:
- 200µH
- ET (Volt-Time):
- -
- Turns Ratio - Primary:Secondary:
- 1CT:2.5CT Transmitter, 1CT:1CT Receiver
- Mounting Type:
- Surface Mount
- Size / Dimension:
- 0.500" L x 0.285" W (12.70mm x 7.24mm)
- Height - Seated (Max):
- 0.200" (5.08mm)
- Operating Temperature:
- 0°C ~ 70°C
- Grade:
- -
- Qualification:
- -
- Datasheet:
-
E2023.pdf
| Image |  |
|
 |
 |
|
| Part Number | E2023NLT | E2023NL | E2023FNL | E2023 | E2023FNLT |
| Manufacturer | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| Series | - | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tube | Tube | Tube | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Obsolete | Active |
| Transformer Type | Isolation and Data Interface (Encapsulated) | Isolation and Data Interface (Encapsulated) | Isolation and Data Interface (Encapsulated) | LAN 10G Base-T | Isolation and Data Interface (Encapsulated) |
| Inductance | 200µH | 200µH | 200µH | 200µH | 200µH |
| ET (Volt-Time) | - | - | - | - | - |
| Turns Ratio - Primary:Secondary | 1CT:2.5CT Transmitter, 1CT:1CT Receiver | 1CT:2.5CT Transmitter, 1CT:1CT Receiver | 1CT:2.5CT Transmitter, 1CT:1CT Receiver | 1CT:2.5CT Transmitter, 1CT:1CT Receiver | 1CT:2.5CT Transmitter, 1CT:1CT Receiver |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Size / Dimension | 0.495" L x 0.280" W (12.57mm x 7.11mm) | 0.495" L x 0.280" W (12.57mm x 7.11mm) | 0.498" L x 0.350" W (12.65mm x 8.89mm) | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.498" L x 0.350" W (12.65mm x 8.89mm) |
| Height - Seated (Max) | 0.210" (5.33mm) | 0.210" (5.33mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
