TE Connectivity Laird VQJ69595B-92FAK
- Part No.:
- VQJ69595B-92FAK
- Manufacturer:
- TE Connectivity Laird
- Category:
- RF Antennas
- Package:
- Datasheet:
-
VQJ69595B-92FAK.pdf
- Description:
- VEHL,L BRACKET MIMO
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
VQJ69595B-92FAK Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TE Connectivity Laird
- Series:
- -
- Packaging:
- Box
- Product Status:
- Active
- RF Family/Standard:
- Cellular, Navigation
- Frequency Group:
- Wide Band
- Frequency (Center/Band):
- 829MHz, 1.582GHz, 2.165GHz, 2.45GHz, 2.66GHz, 5.4GHz
- Frequency Range:
- 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.62GHz, 2.4GHz ~ 2.5GHz, 2.62GHz ~ 2.7GHz, 4.9GHz ~ 5.9GHz
- Antenna Type:
- Module
- Number of Bands:
- 6
- VSWR:
- 3.1
- Return Loss:
- -
- Gain:
- 5dBi, 32dBic, 5dBi, 5dBi, 5dBi, 5dBi
- Power - Max:
- 5 W
- Features:
- Cable - 914mm, LNA
- Termination:
- Fakra (4)
- Ingress Protection:
- IP67
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Adhesive
- Height (Max):
- 0.575" (14.60mm)
- Applications:
- Beidou, GLONASS, GNSS, GPS, LTE, Wi-Fi
- Datasheet:
-
VQJ69595B-92FAK.pdf
| Image |  |
 |

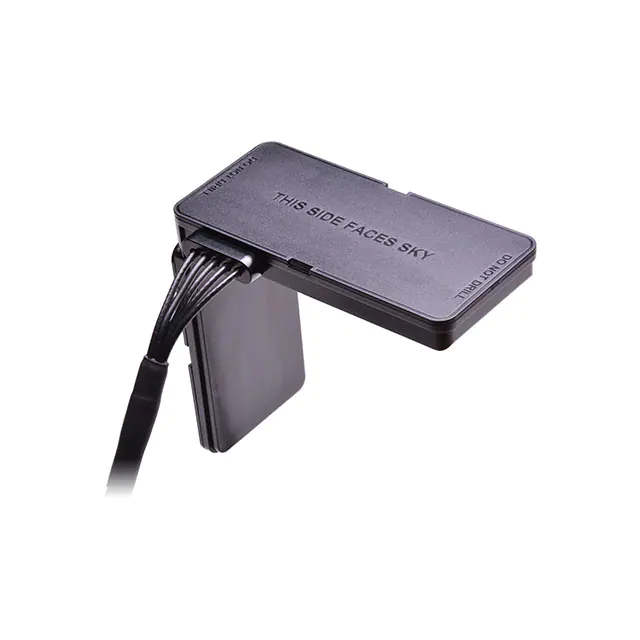

| Part Number | VQJ69595B-92VC1 | VQJ69595B-92FAK |
| Manufacturer | TE Connectivity Laird | TE Connectivity Laird |
| Series | VQJ | - |
| Packaging | Box | Box |
| Product Status | Active | Active |
| RF Family/Standard | Cellular, Navigation, WiFi | Cellular, Navigation |
| Frequency Group | Wide Band | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.165GHz, 2.45GHz, 2.66GHz, 5.4GHz | 829MHz, 1.582GHz, 2.165GHz, 2.45GHz, 2.66GHz, 5.4GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.62GHz, 2.4GHz ~ 2.5GHz, 2.62GHz ~ 2.7GHz, 4.9GHz ~ 5.9GHz | 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.62GHz, 2.4GHz ~ 2.5GHz, 2.62GHz ~ 2.7GHz, 4.9GHz ~ 5.9GHz |
| Antenna Type | Module | Module |
| Number of Bands | 8 | 6 |
| VSWR | 3.1 | 3.1 |
| Return Loss | - | - |
| Gain | 5dBi | 5dBi, 32dBic, 5dBi, 5dBi, 5dBi, 5dBi |
| Power - Max | 5 W | 5 W |
| Features | Cable - 914mm, LNA | Cable - 914mm, LNA |
| Termination | SMA Male (3), RP-SMA Male | Fakra (4) |
| Ingress Protection | IP67 | IP67 |
| Grade | - | - |
| Qualification | - | - |
| Mounting Type | Adhesive | Adhesive |
| Height (Max) | 0.575" (14.60mm) | 0.575" (14.60mm) |
| Applications | 2G, 3G, 4G, 5G, Beidou, GLONASS, GNSS, GPS, ISM, LTE, Wi-Fi | Beidou, GLONASS, GNSS, GPS, LTE, Wi-Fi |
