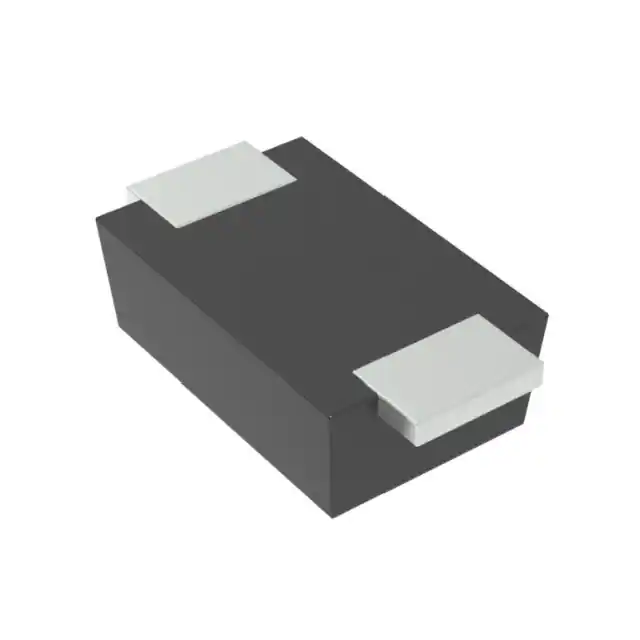

YAGEO SJD12C6.5L01
- Part No.:
- SJD12C6.5L01
- Manufacturer:
- YAGEO
- Category:
- TVS Diodes
- Package:
- DO-219AA
- Datasheet:
-
SJD12C6.5L01.pdf
- Description:
- TVS DIODE 6.5VWM 11.2VC SOD123S
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
SJD12C6.5L01 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- YAGEO
- Package/Case:
- DO-219AA
- Series:
- SJD12A(C)XXXL01
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Zener
- Unidirectional Channels:
- -
- Bidirectional Channels:
- 1
- Voltage - Reverse Standoff (Typ):
- 6.5V
- Voltage - Breakdown (Min):
- 7.22V
- Voltage - Clamping (Max) @ Ipp:
- 11.2V
- Current - Peak Pulse (10/1000µs):
- 17.9A
- Power - Peak Pulse:
- 200W
- Power Line Protection:
- No
- Applications:
- General Purpose
- Capacitance @ Frequency:
- -
- Operating Temperature:
- -55°C ~ 150°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- SOD-123S
- Datasheet:
-
SJD12C6.5L01.pdf
| Image |  |
 |
 |
| Part Number | SJD12C6.5L01 | SJD12C64L01 | SJD12C60L01 |
| Manufacturer | YAGEO | YAGEO | YAGEO |
| Package/Case | DO-219AA | DO-219AA | DO-219AA |
| Series | SJD12A(C)XXXL01 | SJD12A(C)XXXL01 | SJD12A(C)XXXL01 |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active |
| Type | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - |
| Bidirectional Channels | 1 | 1 | 1 |
| Voltage - Reverse Standoff (Typ) | 6.5V | 64V | 60V |
| Voltage - Breakdown (Min) | 7.22V | 71.1V | 66.7V |
| Voltage - Clamping (Max) @ Ipp | 11.2V | 103V | 96.8V |
| Current - Peak Pulse (10/1000µs) | 17.9A | 2A | 2.1A |
| Power - Peak Pulse | 200W | 200W | 200W |
| Power Line Protection | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Grade | - | - | - |
| Qualification | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SOD-123S | SOD-123S | SOD-123S |
