Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

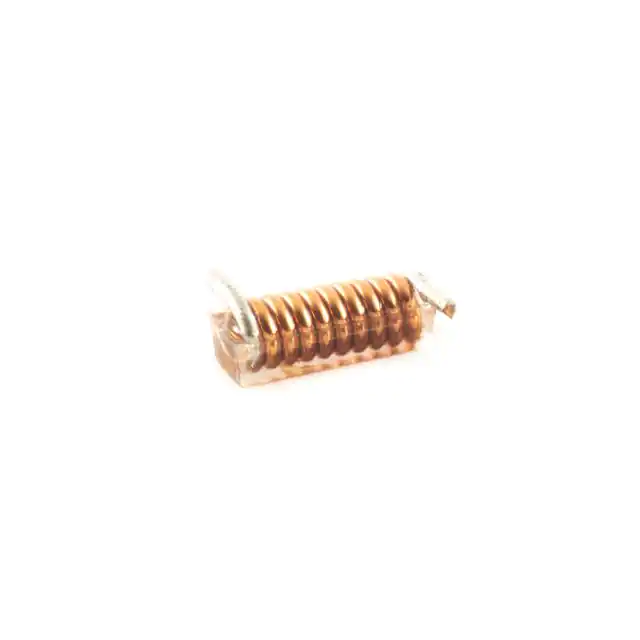

SMAC15-10G-RCFIXED IND 12.55NH 1.6A 14MOHM SM Allied Components International |
0 |
|
Datasheet
|
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 12.55 nH | ±2% | 1.6 A | - | Unshielded | 14mOhm Max | 100 @ 800MHz | 4.6GHz | - | -40°C ~ 125°C | 800 MHz | - | Surface Mount | - | 0.159" L x 0.054" W (4.04mm x 1.37mm) | 0.061" (1.55mm) |
|
SMAC25-47J-RCFIXED IND 47NH 3A 5.6 MOHM SMD Allied Components International |
0 |
|
Datasheet
|
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 47 nH | ±5% | 3 A | - | Unshielded | 5.6mOhm Max | 100 @ 150MHz | 2.1GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.190" L x 0.150" W (4.83mm x 3.81mm) | 0.165" (4.20mm) |
|

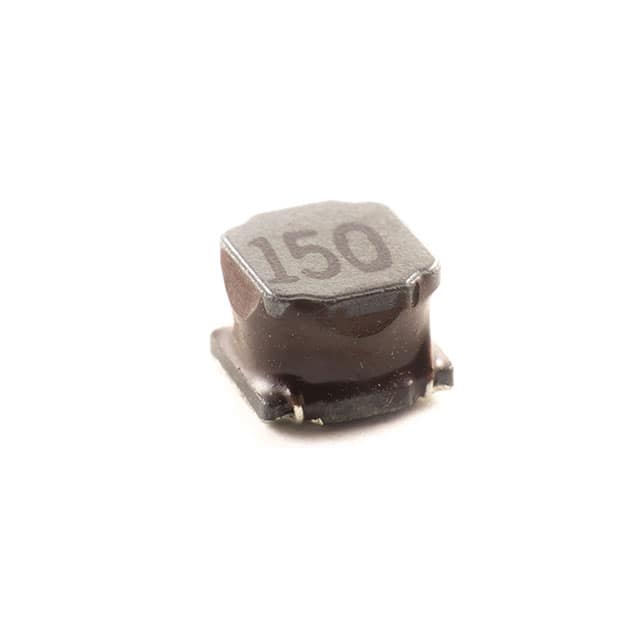

PCSV65-150M-RCFIXED IND 15UH 2.2A 6 MOHM SMD Allied Components International |
0 |
|
Datasheet
|
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 2.2 A | 3.4A | Shielded | 6mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
PCSV80-220M-RCFIXED IND 22UH 2.6A 80 MOHM SMD Allied Components International |
0 |
|
Datasheet
|
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 2.6 A | 2.8A | Shielded | 80mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|

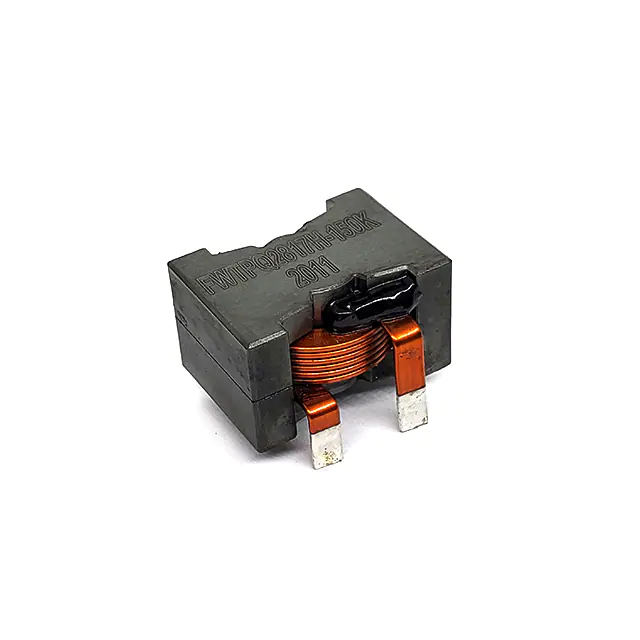

FWPQ2817H-150KFIXED IND 15UH 28A 2.82 MOHM TH Allied Components International |
0 |
|
Datasheet
|
- | Nonstandard | Tray | Active | Wirewound | - | 15 µH | ±10% | 28 A | 21.9A | Shielded | 2.82mOhm | - | 16MHz | - | -40°C ~ 85°C | 500 kHz | - | Through Hole | - | 1.102" L x 0.760" W (28.00mm x 19.30mm) | 0.906" (23.00mm) |
|
LS03-R47J-RC.47UH +/- 5% SMD INDUCTOR Allied Components International |
0 |
|
Datasheet
|
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±5% | 1.05 A | - | Unshielded | 620mOhm Max | 17 @ 7.9MHz | 720MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
|

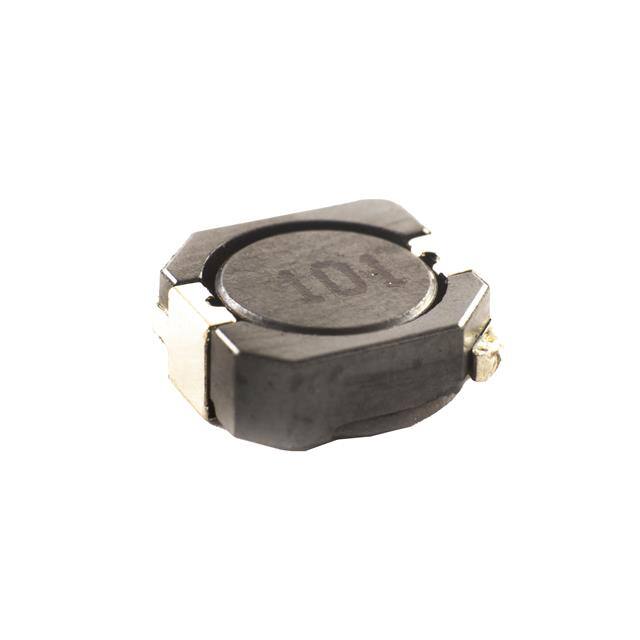

PCS104-150M-RC15UH +/-20% SMD INDUCTOR Allied Components International |
0 |
|
Datasheet
|
- | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 3.6 A | - | Shielded | 50mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|

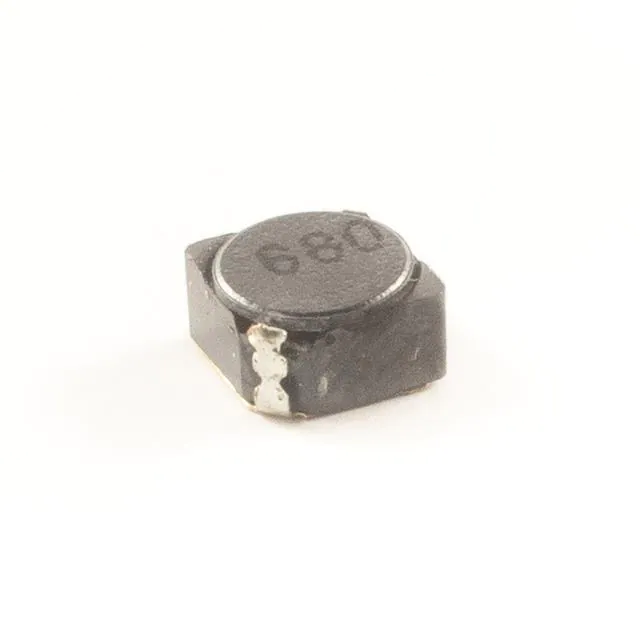

PCSN5D33-680M-RC68UH +/_20% SMD INDUCTOR Allied Components International |
0 |
|
Datasheet
|
- | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 750 mA | - | Shielded | 380mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.138" (3.50mm) |
|

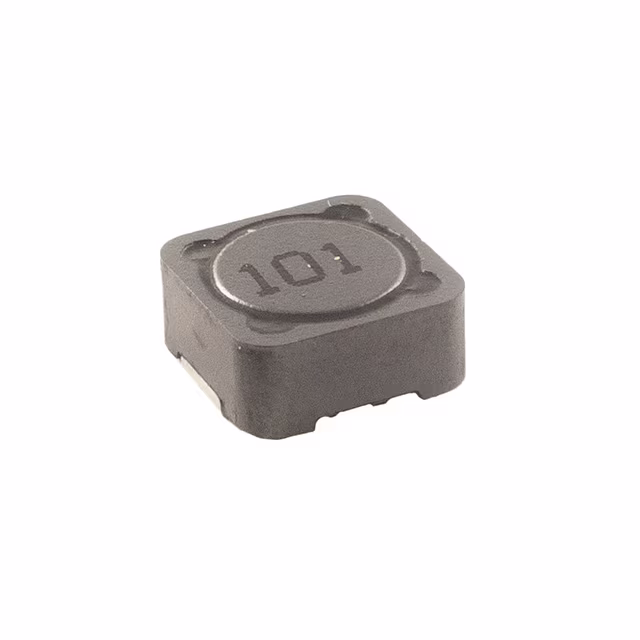

PCS125-101M-RC100UH +/-20% SMD INDUCTOR Allied Components International |
0 |
|
Datasheet
|
- | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 1.3 A | - | Shielded | 160mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|

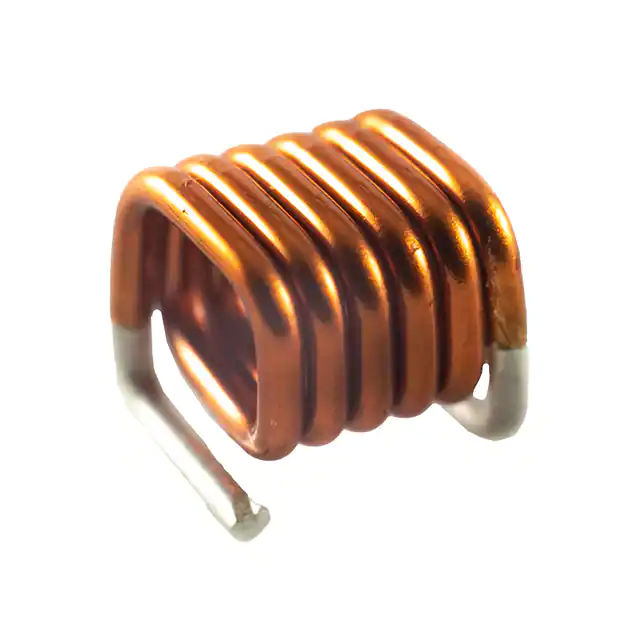

SQAC1515-82NJ-RC82NH SMD AIR CORE INDUCTOR Allied Components International |
0 |
|
Datasheet
|
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 82 nH | ±5% | 5.6 A | - | Unshielded | 9.4mOhm Max | 230 @ 400MHz | 1.79GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.230" L x 0.140" W (5.84mm x 3.56mm) | 0.154" (3.91mm) |
