Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

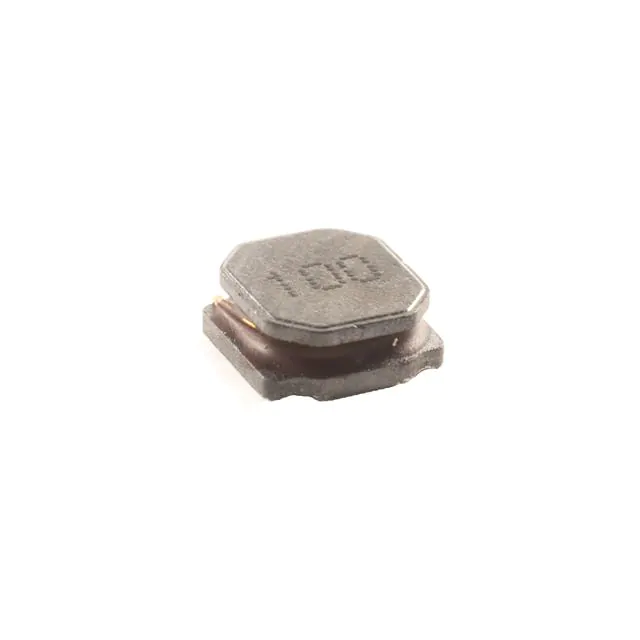

PCSV48-330M-RC33H 20% SHIELDED POWER CHIP IN Allied Components International |
0 |
|
Datasheet
|
PCSV48 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 700 mA | 800mA | Shielded | 530mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|

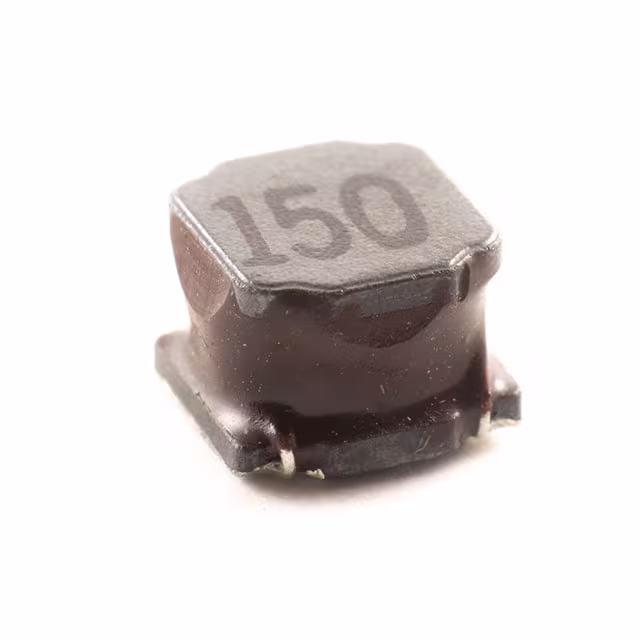

PCSV65-101M-RC100H 20% SHIELDED POWER CHIP IND Allied Components International |
0 |
|
Datasheet
|
- | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 800 mA | 1.3A | Shielded | 500mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
PCSV65-100M-RC10H 20% SMD SHIELDED POWER CHIP Allied Components International |
0 |
|
Datasheet
|
- | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 2.7 A | 4.5A | Shielded | 57mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|

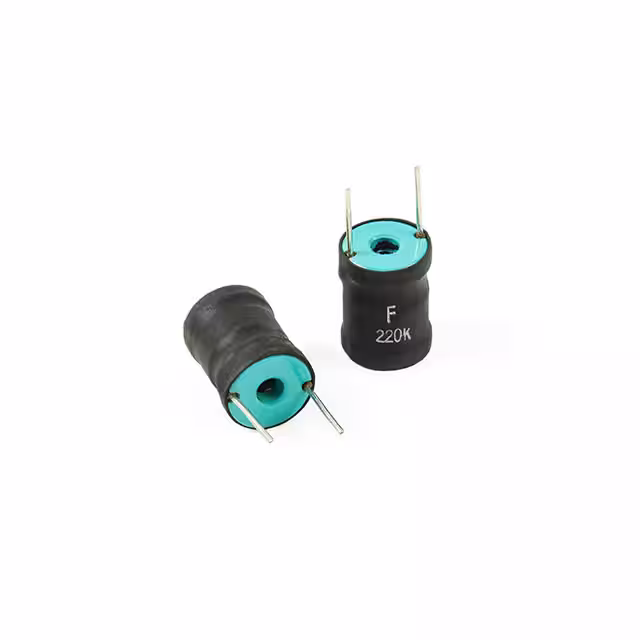

RDC10-331K-RC330H 10% RADIAL DRUM CORE IND Allied Components International |
0 |
|
Datasheet
|
RDC10 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | - | 330 µH | ±10% | 1.3 A | 3.8A | Unshielded | 336mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
|

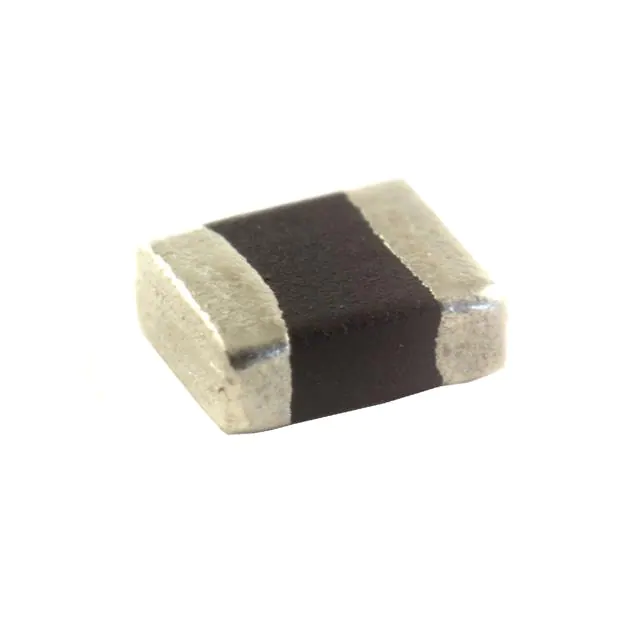

PCSE15Q8-2R2M-RC2.2UH 20% SMD POWER INDUCTOR Allied Components International |
0 |
|
Datasheet
|
- | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 2.2 A | 2.5A | Unshielded | 97mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

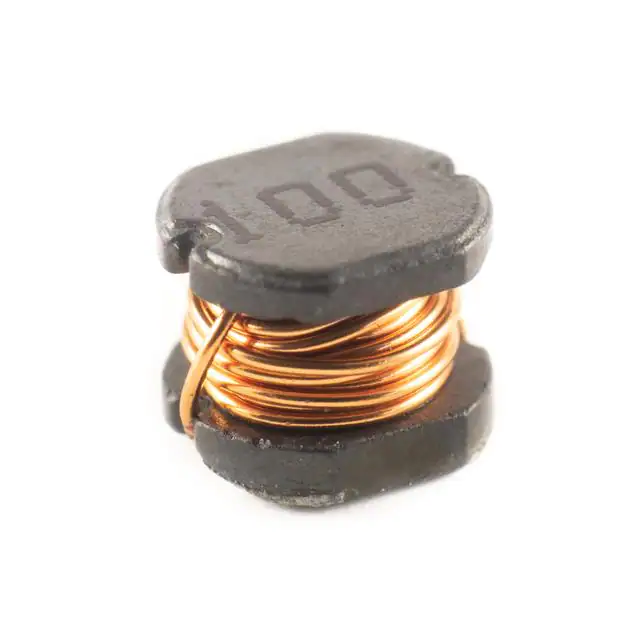

PC0504-470K-RC47UH 10% POWER CHIP INDUCTOR Allied Components International |
0 |
|
Datasheet
|
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±10% | 720 mA | - | Unshielded | 370mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.189" (4.80mm) |
|
|
PC0504-220K-RC22UH 10% POWER CHIP INDUCTOR Allied Components International |
0 |
|
Datasheet
|
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±10% | 1.11 A | - | Unshielded | 180mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.189" (4.80mm) |
|
|
PC0504-331M-RC330UH 20% POWER CHIP INDUCTOR Allied Components International |
0 |
|
Datasheet
|
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 280 mA | - | Unshielded | 1.7Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.189" (4.80mm) |
|

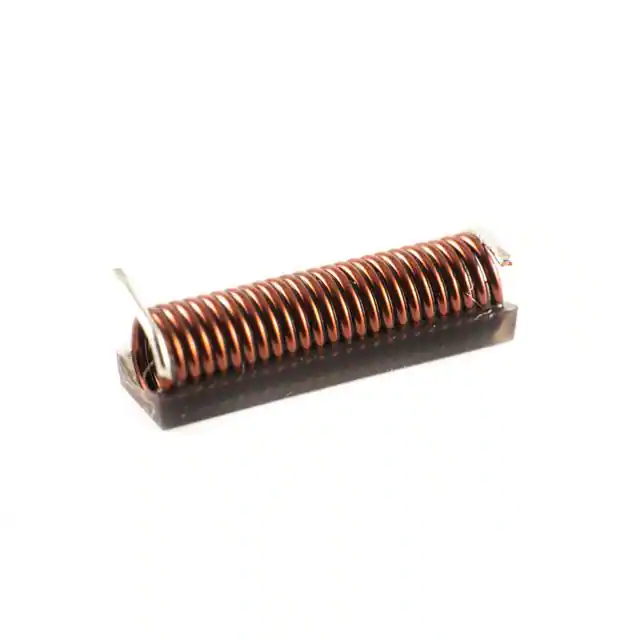

SMAC60-R30L-RC300NH 15% SMD AIR COIL INDUCTOR Allied Components International |
0 |
|
Datasheet
|
- | Nonstandard | Tray | Active | Wirewound | Air | 300 nH | ±15% | 3.5 A | - | Unshielded | 49mOhm Max | 1 @ 200MHz | - | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | - | 0.465" L x 0.190" W (11.80mm x 4.83mm) | 0.140" (3.55mm) |
|

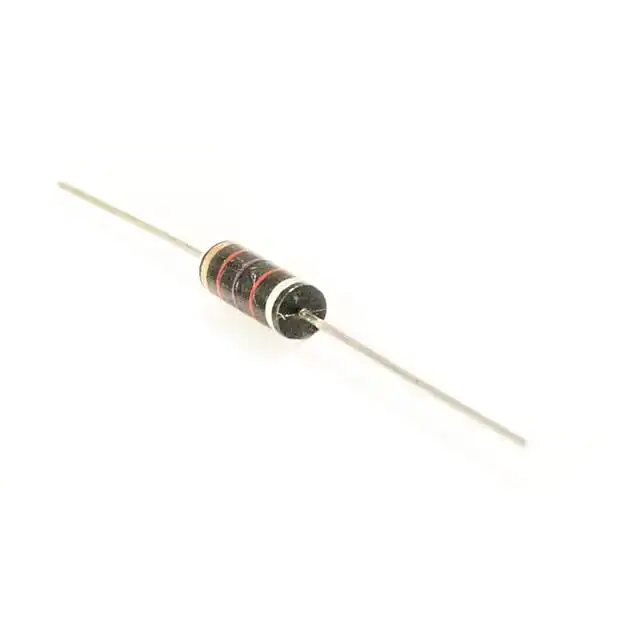

AM20-R10K-RC.10H 10% AXIAL MOLDED INDUCTOR Allied Components International |
0 |
|
Datasheet
|
- | Axial | Bag | Active | Molded | - | 100 nH | ±10% | - | 1.35A | Unshielded | 80mOhm Max | 40 @ 25MHz | 680MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
