Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

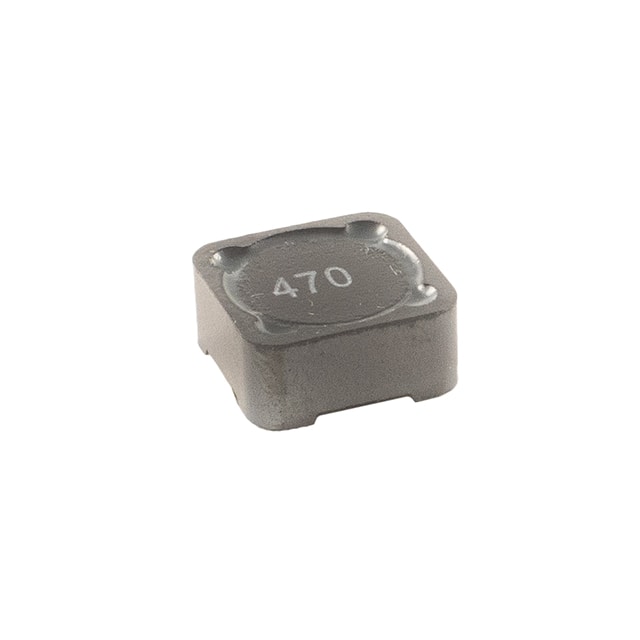

PCSDR125-470M-RC47UH +/-20% SMD INDUCTOR Allied Components International |
0 |
|
Datasheet
|
- | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 2.714 A | 3.23A | Shielded | 88.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.484" L x 0.484" W (12.30mm x 12.30mm) | 0.236" (6.00mm) |
|

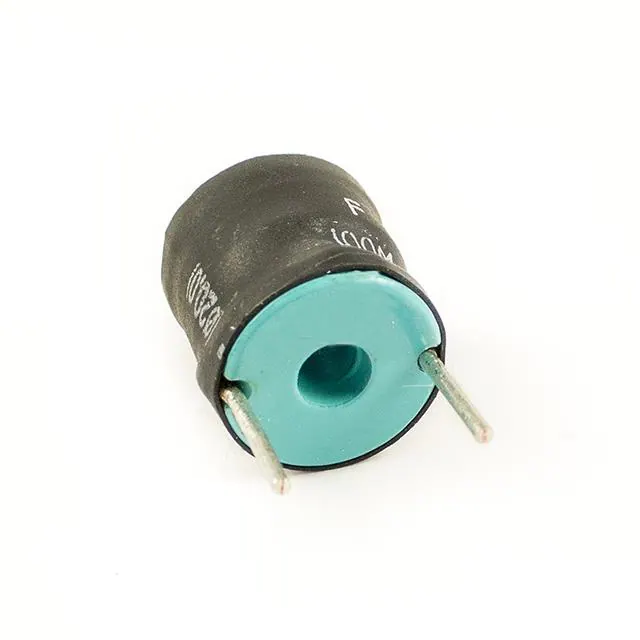

RDC20-102K-RC1000UH RADIAL DRUM CORE INDUCTOR Allied Components International |
0 |
|
Datasheet
|
RDC20 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 1 mH | ±10% | 1 A | 3.1A | Unshielded | 818mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | Radial Lead | 0.825" Dia (20.96mm) | 0.840" (21.34mm) |
|

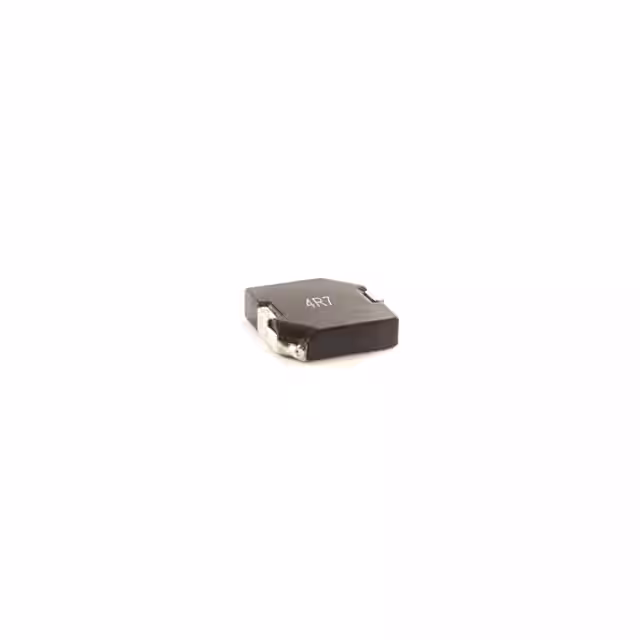

PCHC123H-4R7M-RC4.7H 20% POWER CHOKE HIGH CURREN Allied Components International |
0 |
|
Datasheet
|
- | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 10 A | 16A | Shielded | 15mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.146" (3.70mm) |
|

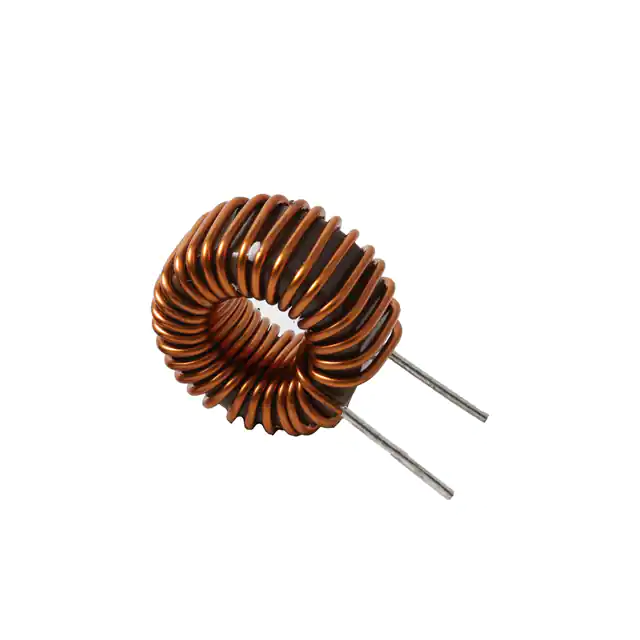

VTC210-101L-RC100H 15% VRT MOUNT TOROIDAL CHOK Allied Components International |
0 |
|
Datasheet
|
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 100 µH | ±15% | 2.4 A | - | Unshielded | 130mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" L (21.84mm x 11.43mm) | - |
|
|
VTC210-151L-RC150H 15% VRT MOUNT TOROIDAL CHOK Allied Components International |
0 |
|
Datasheet
|
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 150 µH | ±15% | 3.4 A | - | Unshielded | 62mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" L (21.84mm x 11.43mm) | - |
|

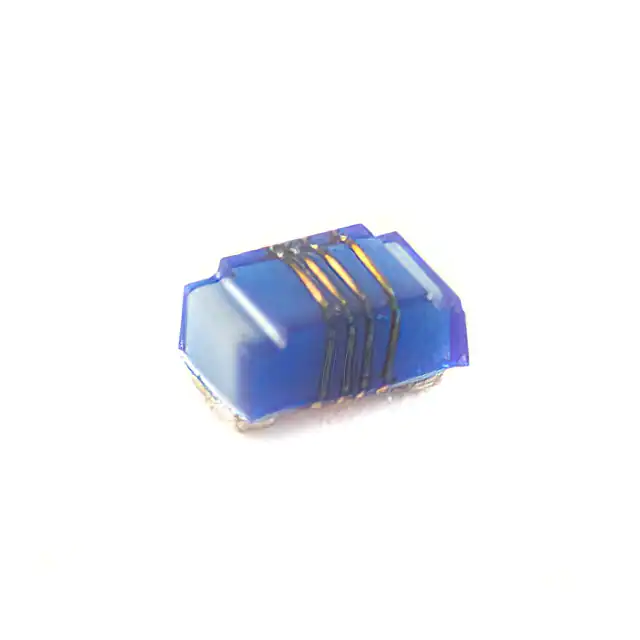

CC03-2N2K-RC2.2NH 10% CERAMIC CORE CHIP INDU Allied Components International |
0 |
|
Datasheet
|
- | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2.2 nH | ±10% | - | - | Unshielded | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0603 | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.047" (1.20mm) |
|
|
VTC210-561L-RC560H 15% VRT MOUNT TOROIDAL CHOK Allied Components International |
0 |
|
Datasheet
|
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 560 µH | ±15% | 1.5 A | - | Unshielded | 300mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" L (21.84mm x 11.43mm) | - |
|

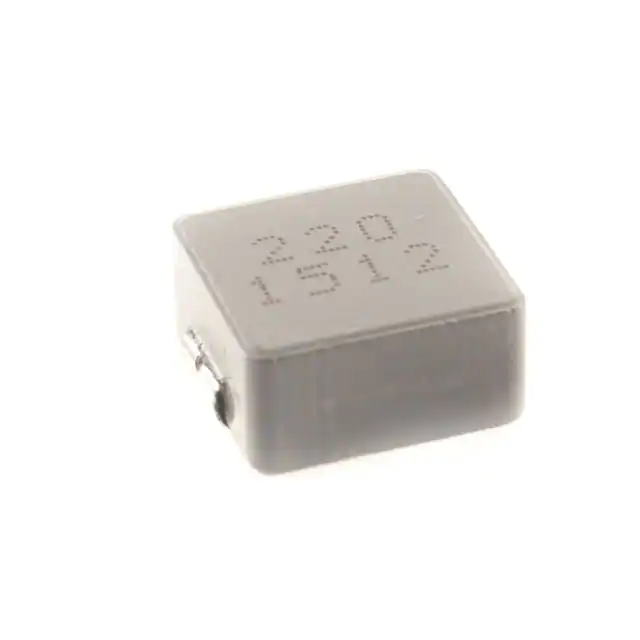

PCHC1265HP-220M22H 20% POWER CHOKE HIGH CURRENT Allied Components International |
0 |
|
Datasheet
|
- | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 9 A | 12A | Shielded | 37mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.256" (6.50mm) |
|

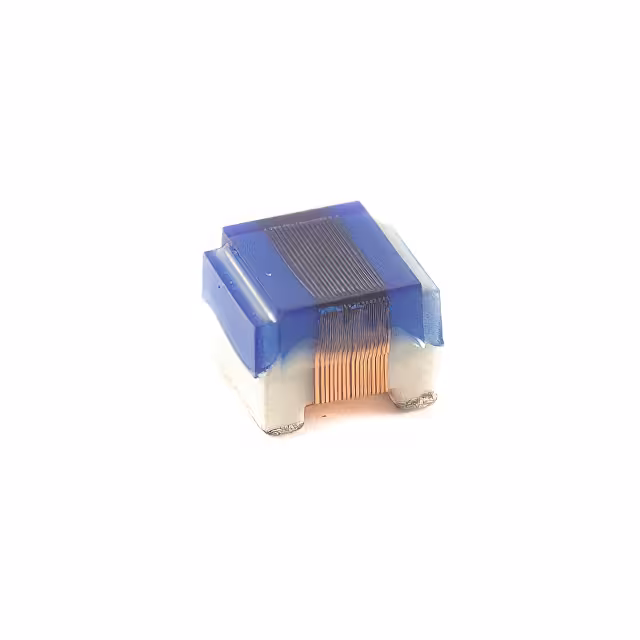

CC10-120NG-RC120NH 2% CERAMIC CORE CHIP INDUC Allied Components International |
0 |
|
Datasheet
|
- | Nonstandard | Tape & Box (TB) | Active | Drum Core, Wirewound | Ceramic | 120 nH | ±2% | 650 mA | - | Unshielded | 630mOhm Max | 60 @ 350MHz | 950MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.087" (2.20mm) |
|

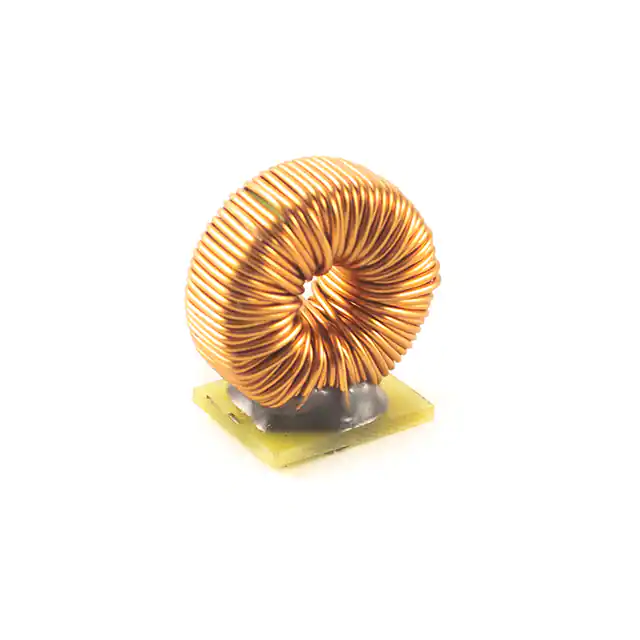

VTCB2213-361360UH, TOROIDAL CHOKE Allied Components International |
0 |
|
Datasheet
|
- | Radial, Vertical (Open) | Box | Active | Toroidal | - | 360 µH | - | 2.5 A | - | Unshielded | 130mOhm Max | - | - | - | -40°C ~ 125°C | 40 kHz | - | Through Hole | - | 0.866" L x 0.512" W (22.00mm x 13.00mm) | 0.906" (23.00mm) |
