Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

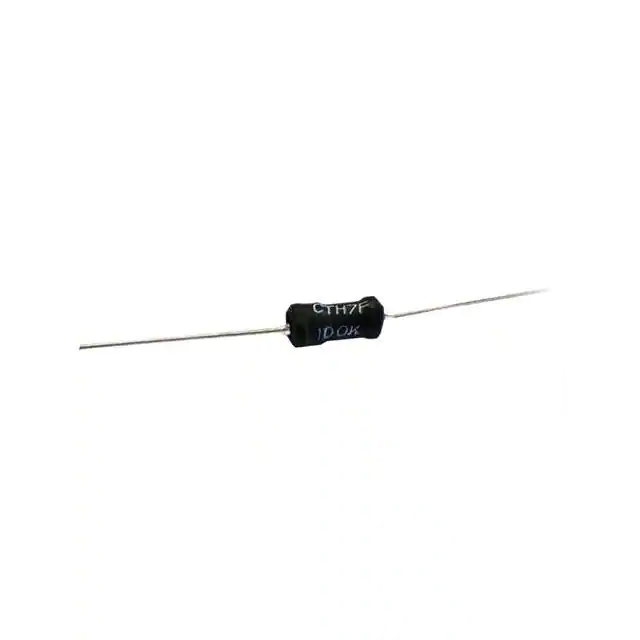

CTH7F-100K10UH AXIAL PWR LINE INDUCTOR Central Technologies |
20 |
|
Datasheet
|
CTH7F | Axial | Tape & Reel (TR) | Active | - | - | 10 µH | ±10% | 1.3 A | 4.1A | Unshielded | 30mOhm Max | - | 17MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.602" L (7.37mm x 15.30mm) | - |
|
|
CTH7F-471K470UH AXIAL PWR LINE INDUCTOR Central Technologies |
17 |
|
Datasheet
|
CTH7F | Axial | Tape & Reel (TR) | Active | - | - | 470 µH | ±10% | 320 mA | 590mA | Unshielded | 1.2Ohm Max | - | 2MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.602" L (7.37mm x 15.30mm) | - |
|
|
CTH7F-123K12000UH AXIAL PWR LINE INDUCTOR Central Technologies |
15 |
|
Datasheet
|
CTH7F | Axial | Tape & Reel (TR) | Active | - | - | 12 mH | ±10% | 50 mA | 110mA | Unshielded | 30Ohm Max | - | 250kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.602" L (7.37mm x 15.30mm) | - |
|
|
CTH7F-8R2K8.2UH AXIAL PWR LINE INDUCTOR Central Technologies |
5 |
|
Datasheet
|
CTH7F | Axial | Tape & Reel (TR) | Active | - | - | 8.2 µH | ±10% | 1.3 A | 4.5A | Unshielded | 30mOhm Max | - | 22MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.602" L (7.37mm x 15.30mm) | - |
|
|
CTH7F-332K3300UH AXIAL PWR LINE INDUCTOR Central Technologies |
5 |
|
Datasheet
|
CTH7F | Axial | Tape & Reel (TR) | Active | - | - | 3.3 mH | ±10% | 130 mA | 220mA | Unshielded | 6.6Ohm Max | - | 600kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.602" L (7.37mm x 15.30mm) | - |
|
|
CTH7F-392K3900UH AXIAL PWR LINE INDUCTOR Central Technologies |
5 |
|
Datasheet
|
CTH7F | Axial | Tape & Reel (TR) | Active | - | - | 3.9 mH | ±10% | 100 mA | 200mA | Unshielded | 8.6Ohm Max | - | 600kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.602" L (7.37mm x 15.30mm) | - |
|
|
CTH7F-271K270UH AXIAL PWR LINE INDUCTOR Central Technologies |
5 |
|
Datasheet
|
CTH7F | Axial | Tape & Reel (TR) | Active | - | - | 270 µH | ±10% | 400 mA | 770mA | Unshielded | 560mOhm Max | - | 2MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.602" L (7.37mm x 15.30mm) | - |
|
|
CTH7F-822K8200UH AXIAL PWR LINE INDUCTOR Central Technologies |
5 |
|
Datasheet
|
CTH7F | Axial | Tape & Reel (TR) | Active | - | - | 8.2 mH | ±10% | 70 mA | 130mA | Unshielded | 21Ohm Max | - | 350kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.602" L (7.37mm x 15.30mm) | - |
|
|
CTH7F-470K47UH AXIAL PWR LINE INDUCTOR Central Technologies |
5 |
|
Datasheet
|
CTH7F | Axial | Tape & Reel (TR) | Active | - | - | 47 µH | ±10% | 800 mA | 1.8A | Unshielded | 110mOhm Max | - | 6MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.602" L (7.37mm x 15.30mm) | - |
|
CTSFW7040F-4R7MSMD FLAT WIRE POWER INDUCTOR Central Technologies |
5 |
|
Datasheet
|
CTSFW7040F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 6 A | 7A | Shielded | 21.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.264" W (7.40mm x 6.70mm) | 0.173" (4.40mm) |
