Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTSFW7040F-1R0MSMD FLAT WIRE POWER INDUCTOR Central Technologies |
5 |
|
Datasheet
|
CTSFW7040F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 15 A | 19A | Shielded | 5.1mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.264" W (7.40mm x 6.70mm) | 0.173" (4.40mm) |
|
CTSFW7050F-100MSMD FLAT WIRE POWER INDUCTOR Central Technologies |
5 |
|
Datasheet
|
CTSFW7050F | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 3.5 A | 4A | Shielded | 36.3mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.264" W (7.40mm x 6.70mm) | 0.213" (5.40mm) |
|
|

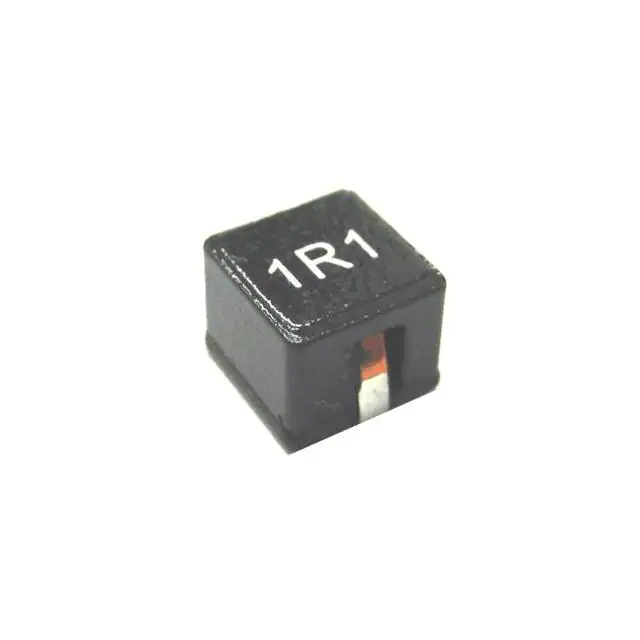

CTSFW7050F-1R1MSMD FLAT WIRE POWER INDUCTOR Central Technologies |
5 |
|
Datasheet
|
CTSFW7050F | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.1 µH | ±20% | 15 A | 13A | Shielded | 3.47mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.264" W (7.40mm x 6.70mm) | 0.213" (5.40mm) |
|

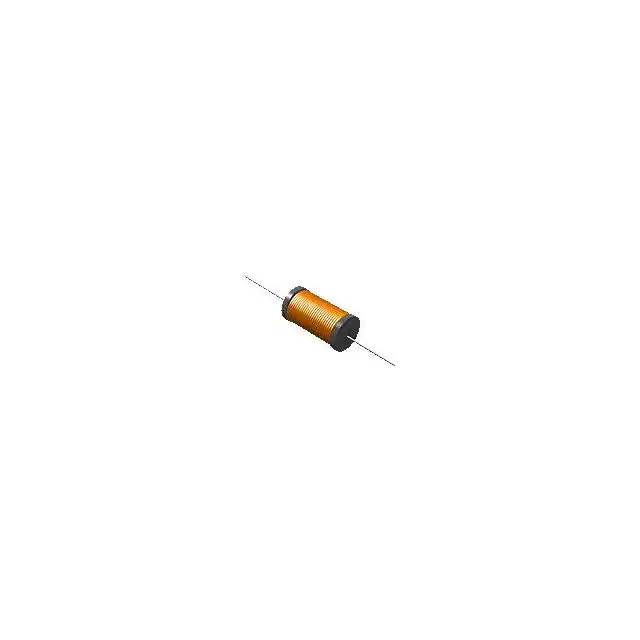

CTH8VF-332K3300UH AXIAL PWR LINE INDUCTOR Central Technologies |
20 |
|
Datasheet
|
CTH8VF | Axial | Bulk | Active | Wirewound | - | 3.3 mH | ±10% | 400 mA | 470mA | Unshielded | 2.6Ohm Max | - | 600kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.449" Dia x 0.898" L (11.40mm x 22.80mm) | - |
|

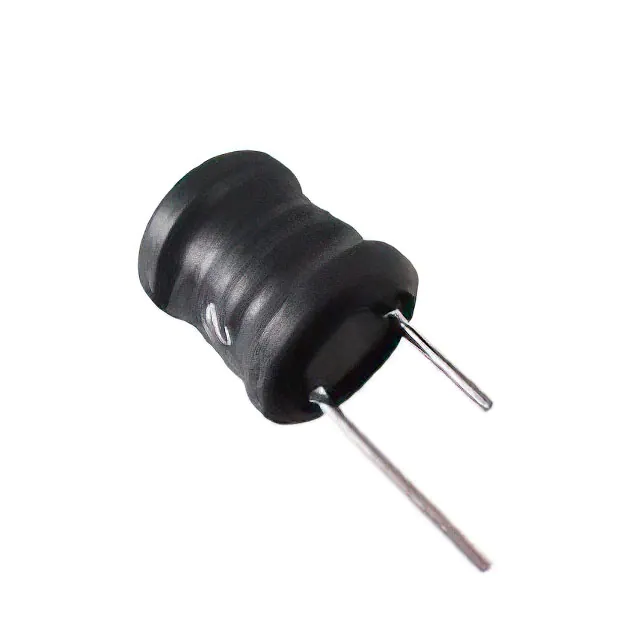

CTRL5480F-5-221K18000UH RADIAL FIXED INDUCTR Central Technologies |
3 |
|
- |
CTRL5480F-5 | Radial, Vertical Cylinder | Bulk | Active | - | - | 220 µH | ±10% | 2.6 A | 1.3A | Unshielded | 147mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.626" Dia (15.90mm) | 0.701" (17.80mm) |
|

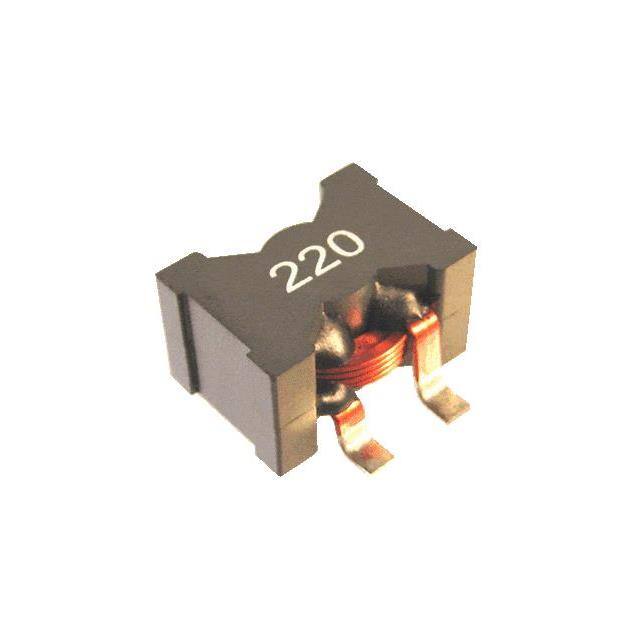

CTHFW2014F-220MSMD SHLDED POWER INDUCTOR Central Technologies |
2 |
|
Datasheet
|
CTHFW2014F | 2-SMD, Gull Wing | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 16 A | 13A | Shielded | 9.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.807" W (22.50mm x 20.50mm) | 0.571" (14.50mm) |
|
CTDR1F-270K27UH RADIAL DRUM CORE INDUCTOR Central Technologies |
4 |
|
Datasheet
|
CTDR1F | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 27 µH | ±10% | - | 4.5A | Unshielded | 30mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.669" Dia (17.00mm) | 0.866" (22.00mm) |
|

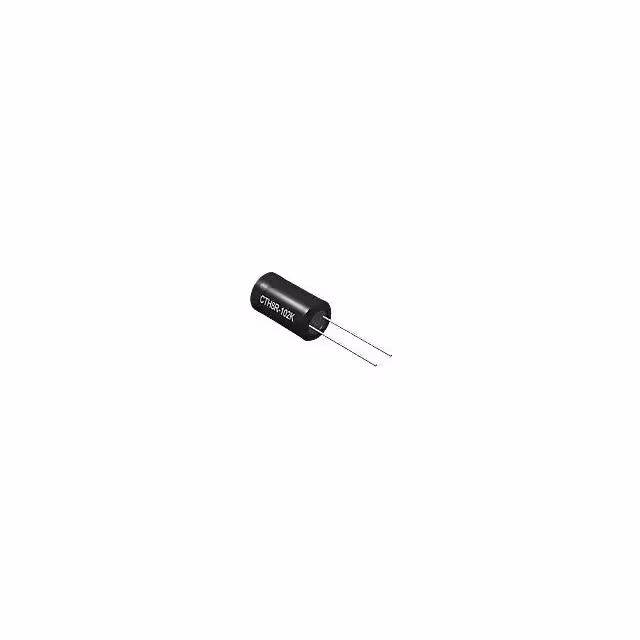

CTH8RF-102K1000UH RADIAL PWR LINE INDUCTOR Central Technologies |
2 |
|
Datasheet
|
CTH8RF | Radial, Vertical Cylinder | Bulk | Active | - | - | 1 mH | ±10% | 800 mA | 870mA | Unshielded | 840mOhm Max | - | 1MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.469" Dia (11.90mm) | 0.917" (23.30mm) |
|
|
CTH8RF-561K560UH RADIAL PWR LINE INDUCTOR Central Technologies |
2 |
|
Datasheet
|
CTH8RF | Radial, Vertical Cylinder | Bulk | Active | - | - | 560 µH | ±10% | 1 A | 1.2A | Unshielded | 420mOhm Max | - | 1MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.469" Dia (11.90mm) | 0.917" (23.30mm) |
|

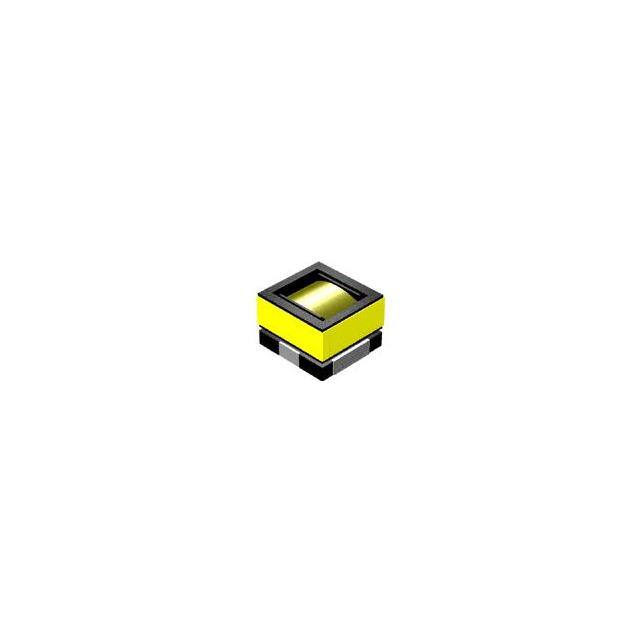

CTEPH149F-2R4M2.40UH SMD SHLDED POWER INDUCTOR Central Technologies |
12 |
|
Datasheet
|
CTEPH149F | 3-SMD, J-Lead | Tape & Reel (TR) | Active | - | - | 2.4 µH | ±20% | - | 15A | Shielded | 2.35mOhm Max | - | - | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 3-SMD | 0.591" L x 0.579" W (15.00mm x 14.70mm) | 0.386" (9.80mm) |
