Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

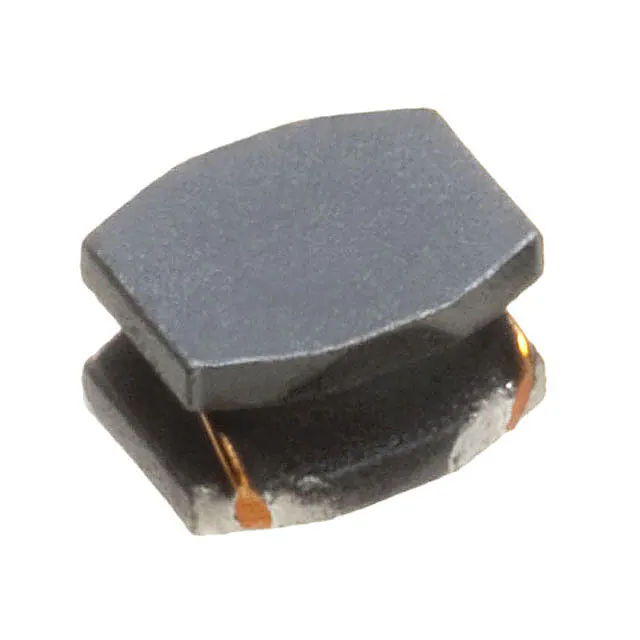

VLS252015ET-2R2M-CAFIXED IND 2.2UH 1.25A 160MOHM SM |
1,999 |
|
Datasheet
|
VLS-E-CA | 1008 (2520 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.25 A | 1.5A | Shielded | 160mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.059" (1.50mm) |
|
VLS252008ET-R47N-CAFIXED IND 470NH 1.2A 140MOHM SMD |
1,945 |
|
Datasheet
|
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 470 nH | ±30% | 1.2 A | 1.65A | Shielded | 140mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
SWPA5020S4R7MTFIXED IND 4.7UH 2.2A 74MOHM SMD |
1,908 |
|
Datasheet
|
SWPA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2.2 A | 2.7A | Shielded | 74mOhm Max | - | 37MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
1229AS-H-120M=P3FIXED IND 12UH 790MA 336MOHM SMD |
1,886 |
|
Datasheet
|
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 790 mA | 650mA | Shielded | 336mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.146" L x 0.154" W (3.70mm x 3.90mm) | 0.047" (1.20mm) |
|
VLS252012ET-1R5N-CAFIXED IND 1.5UH 1.45A 126MOHM SM |
1,820 |
|
Datasheet
|
VLS-E-CA | 1008 (2520 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 1.45 A | 1.8A | Shielded | 126mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
VLS3010ET-1R0N-CAFIXED IND 1UH 2.1A 72 MOHM SMD |
1,670 |
|
Datasheet
|
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.1 A | 1.6A | Shielded | 72mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
VLS3015ET-470M-CAFIXED IND 47UH 410MA 1.5 OHM SMD |
1,624 |
|
Datasheet
|
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 410 mA | 320mA | Shielded | 1.5Ohm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|

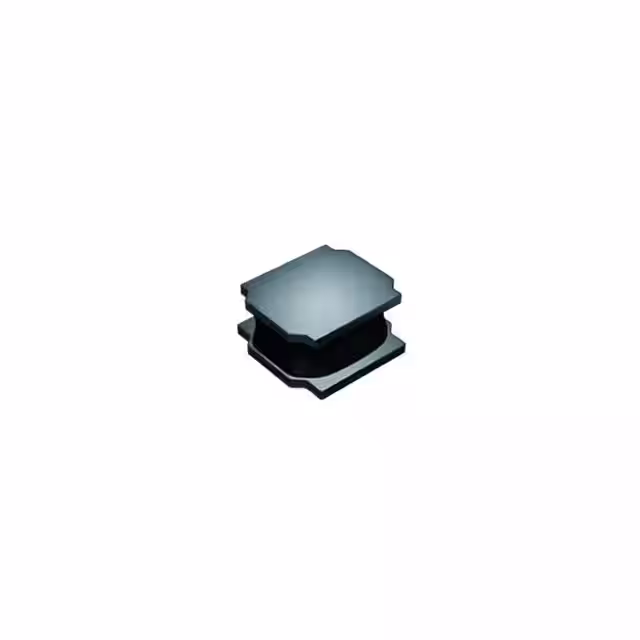

LSXBH8080YKL100MFIXED IND 10UH 3.1A 44.2MOHM SMD |
1,596 |
|
Datasheet
|
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 10 µH | ±20% | 3.1 A | 3.4A | Shielded | 34mOhm | - | 22MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
MHQ0603P33NHTD25FIXED IND 33NH 160MA 2.8 OHM SMD |
1,564 |
|
Datasheet
|
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 33 nH | ±3% | 160 mA | - | Unshielded | 2.8Ohm Max | 14 @ 300MHz | 1.8GHz | AEC-Q200 | -55°C ~ 125°C | 300 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|

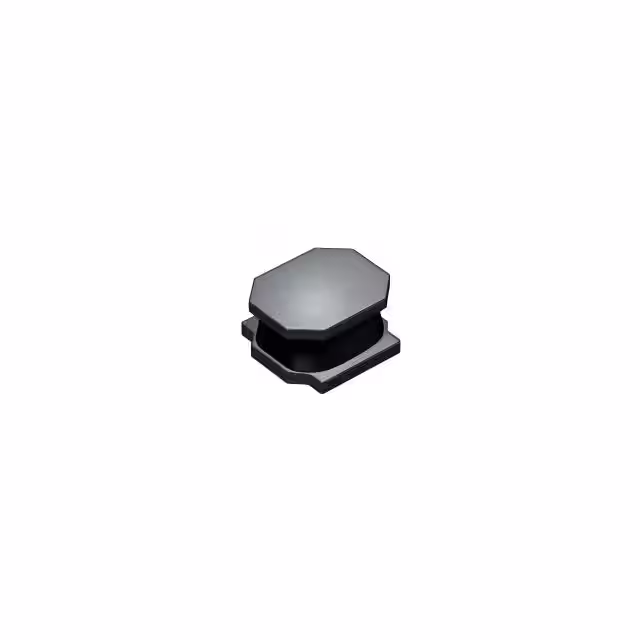

LCXND6060YEL2R3NMGFIXED IND 2.3UH 3.6A 28.6MOHM SM |
1,497 |
|
Datasheet
|
LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.3 µH | ±30% | 3.6 A | 6.4A | Unshielded | 22mOhm | - | 60MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
VLS3010ET-150M-CAFIXED IND 15UH 700MA 612MOHM SMD |
1,442 |
|
Datasheet
|
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 700 mA | 480mA | Shielded | 612mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|

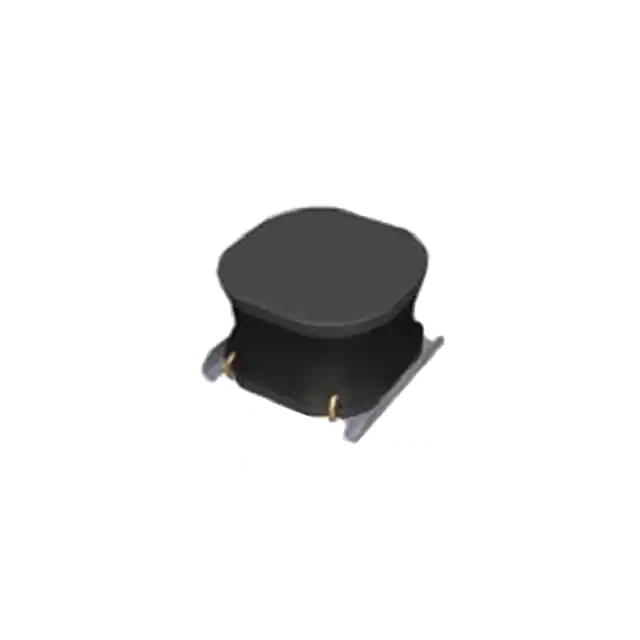

1264EY-1R2N=P3FIXED IND 1.2UH 6.3A 12MOHM SMD |
1,327 |
|
Datasheet
|
DG6050C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±30% | 6.3 A | 9.8A | Shielded | 12mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.197" (5.00mm) |
|
|
VLS3012ET-100M-CAFIXED IND 10UH 890MA 336MOHM SMD |
1,046 |
|
Datasheet
|
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 890 mA | 640mA | Shielded | 336mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
LQW15CA39NK00DFIXED IND 39NH 1.1A 0.075OHM SMD |
10,508 |
|
Datasheet
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 nH | ±10% | 1.1 A | - | Unshielded | 75mOhm Max | - | 2.7GHz | - | -40°C ~ 125°C | 10 MHz | - | Surface Mount | - | 0.040" L x 0.022" W (1.02mm x 0.55mm) | 0.026" (0.66mm) |
|
|
LQW15CAR50K00DFIXED IND 500NH 270MA 0.97OHM SM |
9,925 |
|
Datasheet
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 500 nH | ±10% | 270 mA | - | Unshielded | 970mOhm Max | - | 900MHz | - | -40°C ~ 125°C | 10 MHz | - | Surface Mount | - | 0.040" L x 0.022" W (1.02mm x 0.55mm) | 0.026" (0.66mm) |
|
VLS252010HBU-3R3MFIXED IND 3.3UH 1.24A 270MOHM SM |
7,574 |
|
Datasheet
|
VLS-HBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 1.24 A | 2A | Shielded | 270mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
.jpg)
|
B82422A1682K108FIXED IND 6.8UH 135MA 2.8OHM SMD |
7,417 |
|
Datasheet
|
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 135 mA | - | Unshielded | 2.8Ohm Max | 27 @ 7.96MHz | 90MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
B82498F3331G000FIXED IND 330NH 220MA 1.5OHM SMD |
5,878 |
|
Datasheet
|
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 330 nH | ±2% | 220 mA | - | Unshielded | 1.5Ohm Max | 45 @ 250MHz | 800MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
|
LQW15CAR39K00DFIXED IND 390NH 320MA 0.72OHM SM |
5,578 |
|
Datasheet
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 nH | ±10% | 320 mA | - | Unshielded | 720mOhm Max | - | 950MHz | - | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 0402 | 0.040" L x 0.024" W (1.02mm x 0.61mm) | 0.026" (0.66mm) |
|
NRS6020T6R8NMGJVFIXED IND 6.8UH 1.8A 102MOHM SMD |
4,232 |
|
Datasheet
|
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 1.8 A | 2A | Shielded | 102mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
