Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
LQW2UAS1R0F0CLFIXED IND 1UH 370MA 1.75 OHM SMD |
1,679 |
|
Datasheet
|
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 1 µH | ±1% | 370 mA | - | Unshielded | 1.75Ohm Max | 35 @ 50MHz | 290MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 1008 | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
VLS6045EX-4R7M-CAFIXED IND 4.7UH 4.2A 35.1MOHM SM |
1,568 |
|
Datasheet
|
VLS-EX | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 4.2 A | 5.8A | Shielded | 35.1mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|

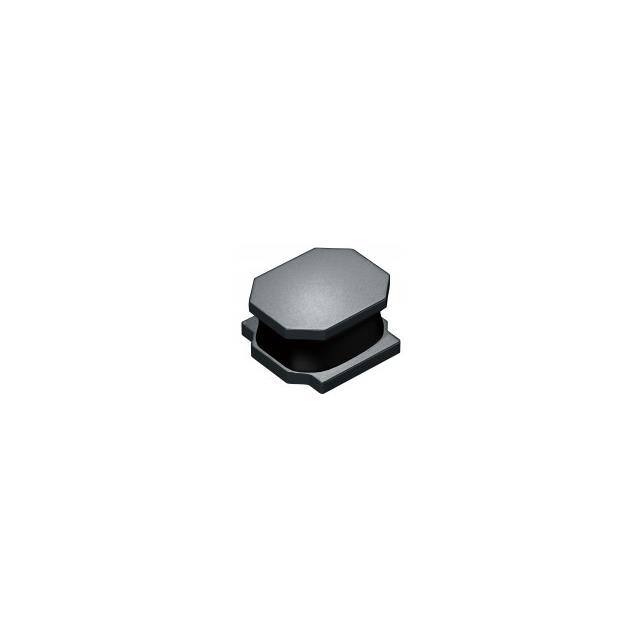

LCXND6060YEL6R3MMGFIXED IND 6.3UH 3A 46.8 MOHM SMD |
1,490 |
|
Datasheet
|
LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.3 µH | ±20% | 3 A | 3.6A | Unshielded | 36mOhm | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
SRN5040TA-R60MFIXED IND 600NH 8A 8 MOHM SMD |
1,405 |
|
Datasheet
|
SRN5040TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 600 nH | ±20% | 8 A | 11A | Shielded | 8mOhm | 15 @ 100kHz | 250MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.195" W (4.95mm x 4.95mm) | 0.161" (4.10mm) |
|
AIAP-02-681KFIXED IND 680UH 490MA 1.61OHM TH |
1,010 |
|
Datasheet
|
AIAP-02 | Axial | Bulk | Active | Wirewound | - | 680 µH | ±10% | 490 mA | - | Unshielded | 1.61Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.252" Dia x 0.551" L (6.40mm x 14.00mm) | - |
|
B82144A2684J000FIXED IND 680UH 240MA 2.8 OHM TH |
4,363 |
|
Datasheet
|
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±5% | 240 mA | - | Unshielded | 2.8Ohm Max | 30 @ 796kHz | 1.3MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - |
|

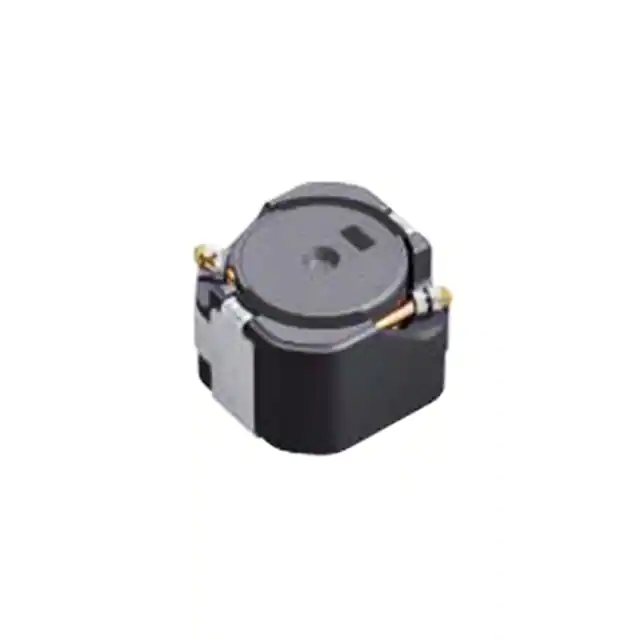

CLF5030NIT-680M-DFIXED IND 68UH 590MA 636MOHM SMD |
3,447 |
|
Datasheet
|
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 590 mA | 680mA | Shielded | 636mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|

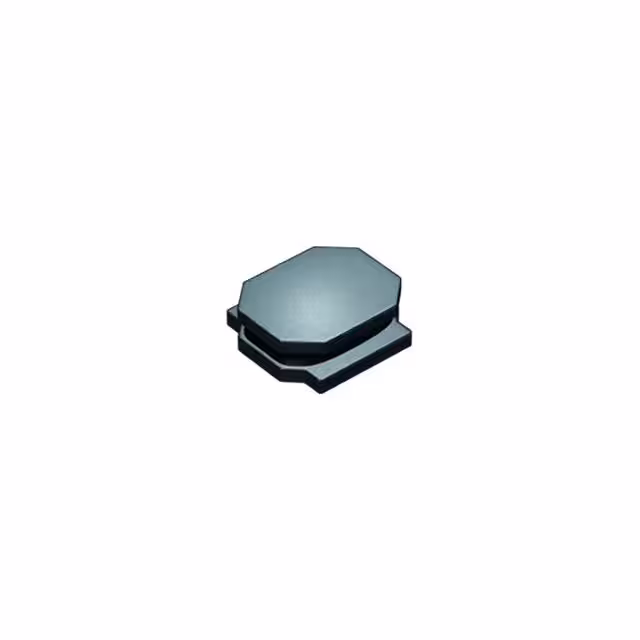

LCXND6060MKT5R3MMGFIXED IND 5.3UH 1.55A 150MOHM SM |
2,000 |
|
Datasheet
|
LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 5.3 µH | ±20% | 1.55 A | 1.5A | Unshielded | 125mOhm | - | 34MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|

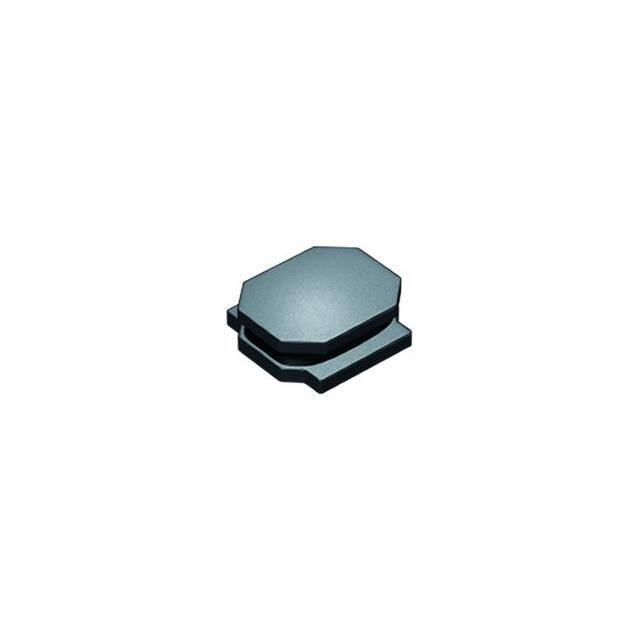

LCXND6060MKT6R8MMGFIXED IND 6.8UH 1.35A 198MOHM SM |
2,000 |
|
Datasheet
|
LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 1.35 A | 1.3A | Unshielded | 165mOhm | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
LCXND6060MKT330MMGFIXED IND 33UH 550MA 696MOHM SMD |
2,000 |
|
Datasheet
|
LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±20% | 550 mA | 590mA | Unshielded | 580mOhm | - | 8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
|
B82144A2563J000FIXED IND 56UH TH |
1,430 |
|
Datasheet
|
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±5% | - | - | Unshielded | - | - | - | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - |
|
|
B82144A2153K000FIXED IND 15UH 1.25A 280 MOHM TH |
1,342 |
|
Datasheet
|
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 1.25 A | - | Unshielded | 280mOhm Max | 60 @ 2.52MHz | 20MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - |
|
PA2982.221HLFIXED IND 220NH 62A 0.35MOHM SMD |
3,725 |
|
Datasheet
|
PA2982.XXXHL | Nonstandard | Tray | Active | - | - | 220 nH | ±10% | 62 A | 42A | Shielded | 0.35mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.315" W (11.00mm x 8.00mm) | 0.201" (5.10mm) |
.jpg)
|
B82422A3331J100FIXED IND 330NH 200MA 1.3OHM SMD |
11,240 |
|
Datasheet
|
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 330 nH | ±5% | 200 mA | - | Unshielded | 1.3Ohm Max | 22 @ 30MHz | 580MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
B82422H1152K000FIXED IND 1.5UH 900MA 140MOHM SM |
4,839 |
|
Datasheet
|
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±10% | 900 mA | - | Unshielded | 140mOhm Max | 10 @ 2.52MHz | 110MHz | AEC-Q200 | -55°C ~ 150°C | 7.96 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|

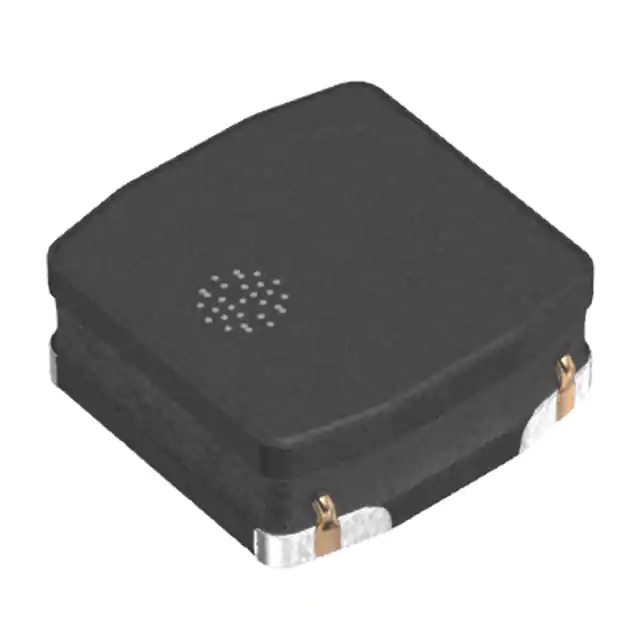

VLS3012HBX-R68M-NINDUCTORS FOR POWER CIRCUITS, WO |
3,904 |
|
Datasheet
|
VLS-HBX | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 680 nH | ±20% | 5.09 A | 5.6A | Shielded | 38mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
VLS3012HBX-R68MFIXED IND 680NH 5.66A 38MOHM SMD |
2,639 |
|
Datasheet
|
VLS-HBX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 680 nH | ±20% | 5.66 A | 5.95A | Shielded | 38mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
SBC1-1R0-312FIXED IND 1UH 3.1A 30 MOHM TH |
2,587 |
|
Datasheet
|
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 3.1 A | 5.2A | Unshielded | 30mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.217" Dia (5.50mm) | 0.335" (8.50mm) |
|

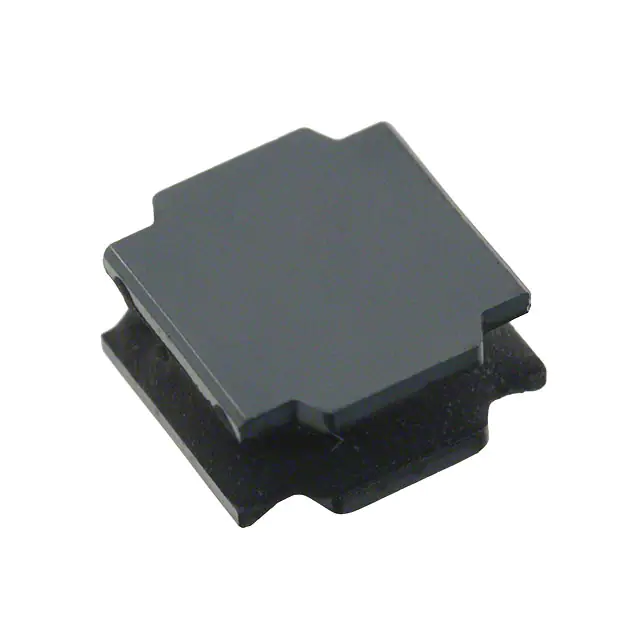

NRS6012T101MMGJVFIXED IND 100UH 320MA 2.004 OHM |
2,443 |
|
Datasheet
|
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 320 mA | 350mA | Shielded | 2.004Ohm Max | - | 1MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
84153CFIXED IND 15UH 750MA 450MOHM SMD |
1,990 |
|
Datasheet
|
8400 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±10% | 750 mA | - | Unshielded | 450mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.177" L x 0.130" W (4.50mm x 3.30mm) | 0.114" (2.90mm) |
