Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

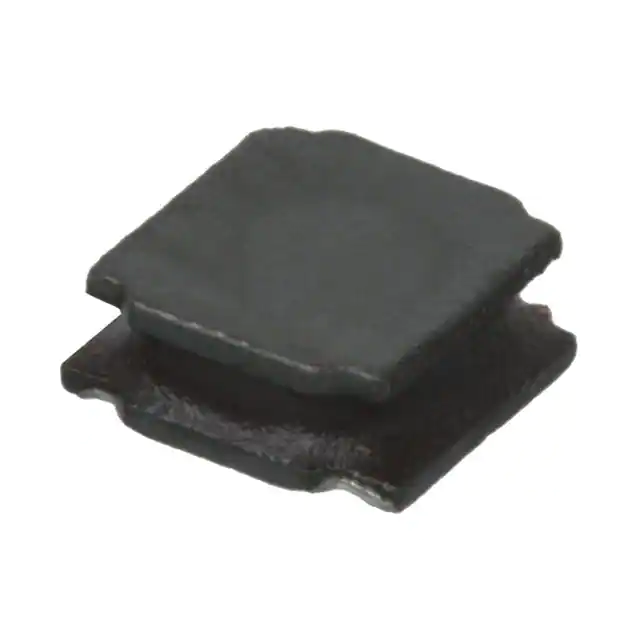

NRV3012T1R5NVFIXED IND 1.5UH 1.61A 75MOHM SMD |
3,950 |
|
Datasheet
|
NR, V Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 1.61 A | 2.1A | Shielded | 75mOhm | - | 92MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
LQW15CA22NJ00DFIXED IND 22NH 1.3A 0.06OHM SMD |
3,843 |
|
Datasheet
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 nH | ±5% | 1.3 A | - | Unshielded | 60mOhm Max | - | 3GHz | - | -40°C ~ 125°C | 10 MHz | - | Surface Mount | - | 0.040" L x 0.022" W (1.02mm x 0.55mm) | 0.026" (0.66mm) |
|
|
NRV3012T6R8MVFIXED IND 6.8UH 800MA 300MOHM SM |
3,517 |
|
Datasheet
|
NR, V Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 800 mA | 950mA | Shielded | 300mOhm | - | 40MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
NRV3012T1R0NVFIXED IND 1UH 1.97A 65 MOHM SMD |
3,200 |
|
Datasheet
|
NR, V Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 1.97 A | 2.5A | Shielded | 65mOhm | - | 110MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|

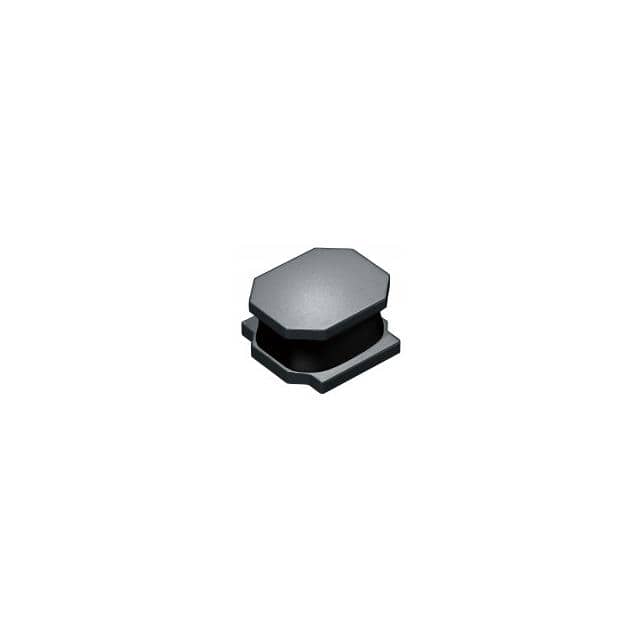

LCXND6060YEL3R0NMGFIXED IND 3UH 3.3A 31.2 MOHM SMD |
3,000 |
|
Datasheet
|
LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3 µH | ±30% | 3.3 A | 5.6A | Unshielded | 24mOhm | - | 45MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
SDCH1V8040-101M-RIND 100 UH 1.22A SMT |
2,880 |
|
Datasheet
|
SDCH1V80 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 1.1 A | 1.22A | Shielded | 345mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
SWPA5020S100MTFIXED IND 10UH 1.55A 143MOHM SMD |
2,088 |
|
Datasheet
|
SWPA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.55 A | 1.8A | Shielded | 143mOhm Max | - | 24MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
NRS6020T4R7NMGJVFIXED IND 4.7UH 2.15A 69.6 MOHM |
2,051 |
|
Datasheet
|
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 2.15 A | 2.4A | Shielded | 69.6mOhm Max | - | 43MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
LCXND6060PKT3R3NMGFIXED IND 3.3UH 2A 90 MOHM SMD |
2,000 |
|
Datasheet
|
LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±30% | 2 A | 2.5A | Unshielded | 75mOhm | - | 41MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.055" (1.40mm) |
|

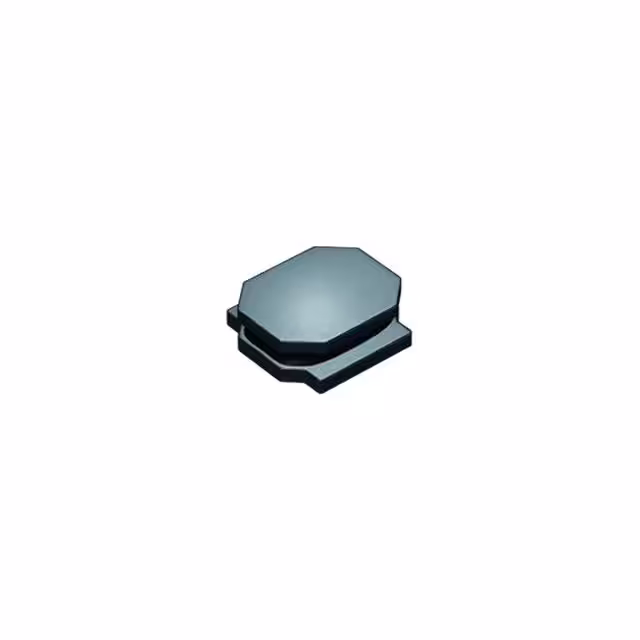

LCXND6060PKT6R8MMGFIXED IND 6.8UH 1.65A 138MOHM SM |
2,000 |
|
Datasheet
|
LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 1.65 A | 1.7A | Unshielded | 115mOhm | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.055" (1.40mm) |
|
B82141A1472K009FIXED IND 4.7UH 530MA 360MOHM TH |
1,975 |
|
Datasheet
|
SBC | Axial | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 530 mA | - | Unshielded | 360mOhm Max | 50 @ 7.96MHz | 60MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.118" Dia x 0.268" L (3.00mm x 6.80mm) | - |
|
|
NRV3012T3R3MVFIXED IND 3.3UH 1.26A 150MOHM SM |
1,778 |
|
Datasheet
|
NR, V Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.26 A | 1.6A | Shielded | 150mOhm | - | 55MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|

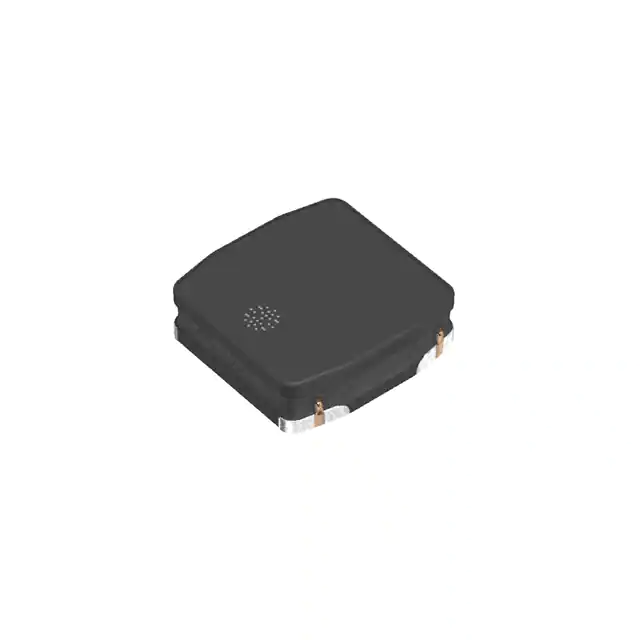

VLS4012HBX-150MFIXED IND 15UH 1.52A 503MOHM SMD |
1,256 |
|
Datasheet
|
VLS-HBX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 15 µH | ±20% | 1.52 A | 1.95A | Shielded | 503mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
.jpg)
|
B82422A1473J100FIXED IND 47UH 85MA 7 OHM SMD |
7,988 |
|
Datasheet
|
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±5% | 85 mA | - | Unshielded | 7Ohm Max | 27 @ 2.52MHz | 11MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
B82141A1222K000FIXED IND 2.2UH 630MA 250MOHM TH |
5,889 |
|
Datasheet
|
SBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 630 mA | - | Unshielded | 250mOhm Max | 45 @ 7.96MHz | 130MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.118" Dia x 0.268" L (3.00mm x 6.80mm) | - |
.jpg)
|

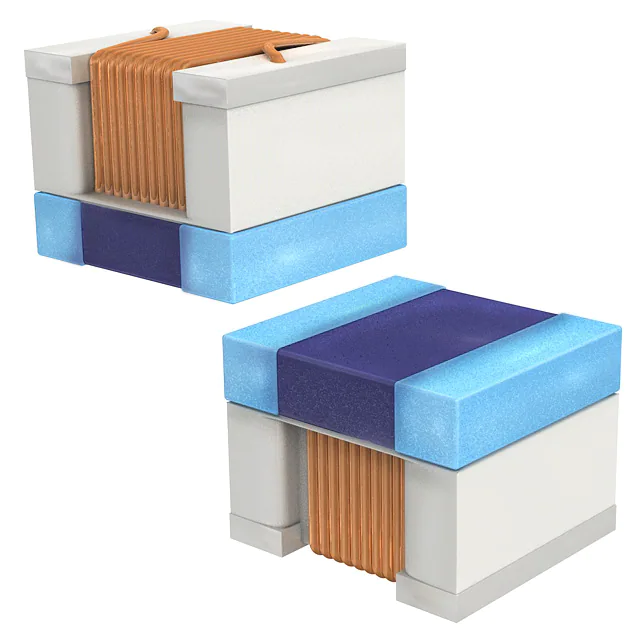

LQW2UASR18F0CLFIXED IND 180NH 620MA 770MOHM SM |
3,900 |
|
Datasheet
|
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 180 nH | ±1% | 620 mA | - | Unshielded | 770mOhm Max | 45 @ 100MHz | 750MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 1008 | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|

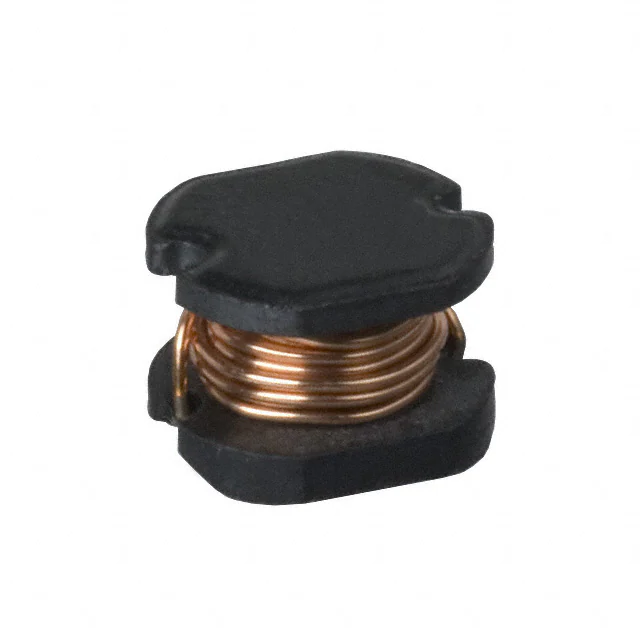

ASPI-0705-101K-TFIXED IND 100UH 720MA 430MOHM SM |
2,373 |
|
Datasheet
|
ASPI-0705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 720 mA | - | Unshielded | 430mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
ASPI-0705-390K-TFIXED IND 39UH 1.1A 160 MOHM SMD |
1,981 |
|
Datasheet
|
ASPI-0705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±10% | 1.1 A | - | Unshielded | 160mOhm Max | - | - | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
MPL-SE4030-R68SEMI-SHIELDED INDUCTOR 0.68H |
1,975 |
|
Datasheet
|
MPL-SE | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | - | 680 nH | ±20% | 6 A | 7.5A | Shielded | 12mOhm Max | - | 180MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
|
LQW2UASR10F0CLFIXED IND 100NH 650MA 560MOHM SM |
1,816 |
|
Datasheet
|
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 100 nH | ±1% | 650 mA | - | Unshielded | 560mOhm Max | 60 @ 350MHz | 1GHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 1008 | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
