Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

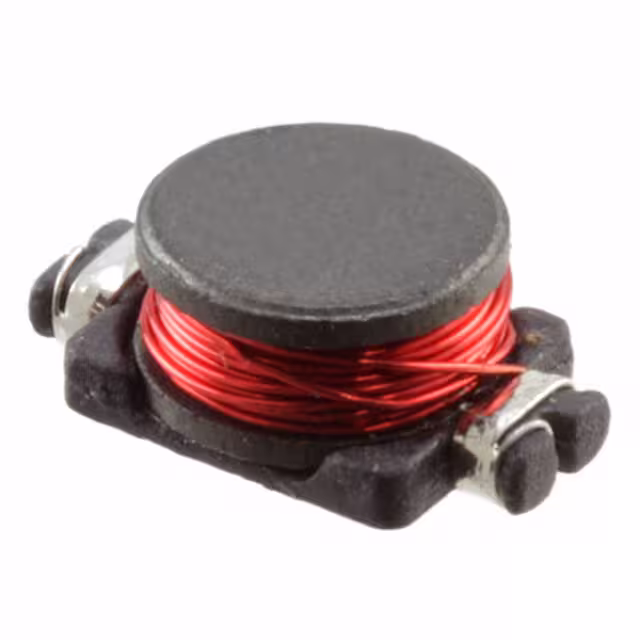

P0770.333NLFIXED IND 33UH 580MA 510MOHM SMD |
4,919 |
|
Datasheet
|
P0770NL | Nonstandard | Tray | Active | Wirewound | - | 33 µH | ±20% | 580 mA | 580mA | Unshielded | 510mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|

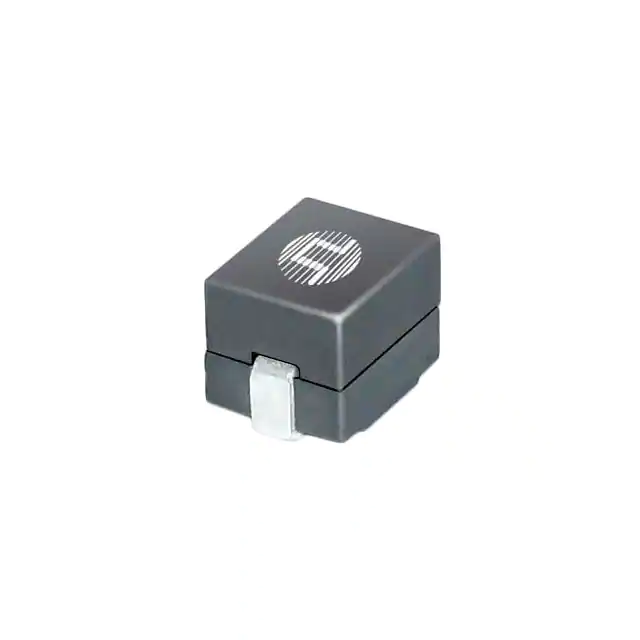

PA3288.151HLFIXED IND 150NH 64A 0.29MOHM SMD |
3,290 |
|
Datasheet
|
PA3288.XXXHL | Nonstandard | Tray | Active | - | - | 150 nH | ±15% | 64 A | 70A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.362" L x 0.244" W (9.20mm x 6.20mm) | 0.315" (8.00mm) |
|
BMRB000606184R7MA1FIXED IND 4.7UH 3.5A 70 MOHM SMD |
10,704 |
|
Datasheet
|
BMRB | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 3.5 A | 5A | Shielded | 70mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.071" (1.80mm) |
|
|
BMRA00060630R22MA1FIXED IND 220NH 23A 2.8 MOHM SMD |
9,512 |
|
Datasheet
|
BMRA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 23 A | 40A | Shielded | 2.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|

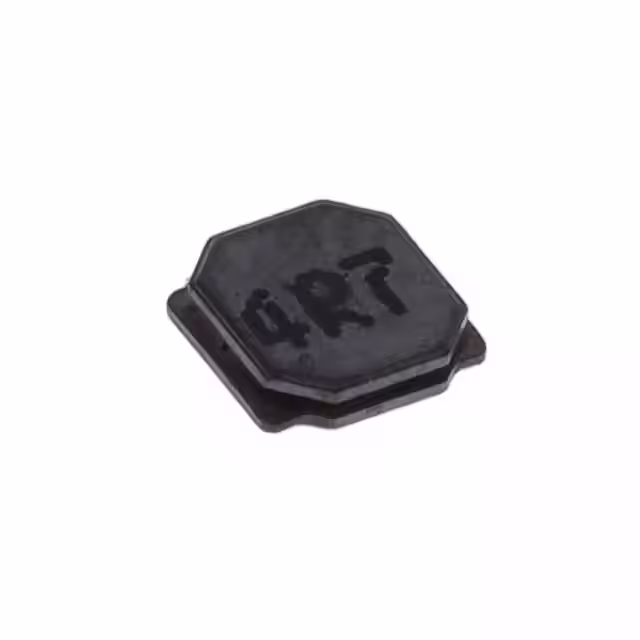

ASPI-0410FS-4R7M-TFIXED IND 4.7UH 900MA 210MOHM SM |
0 |
|
Datasheet
|
ASPI-0410FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 900 mA | - | Shielded | 210mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
IFLR2727EZERR10M01FIXED IND 105NH 45A 0.35MOHM SMD |
8,812 |
|
Datasheet
|
IFLR-2727EZ-01 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | - | 105 nH | ±20% | 45 A | 46A | Shielded | 0.35mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.197" (5.00mm) |
|

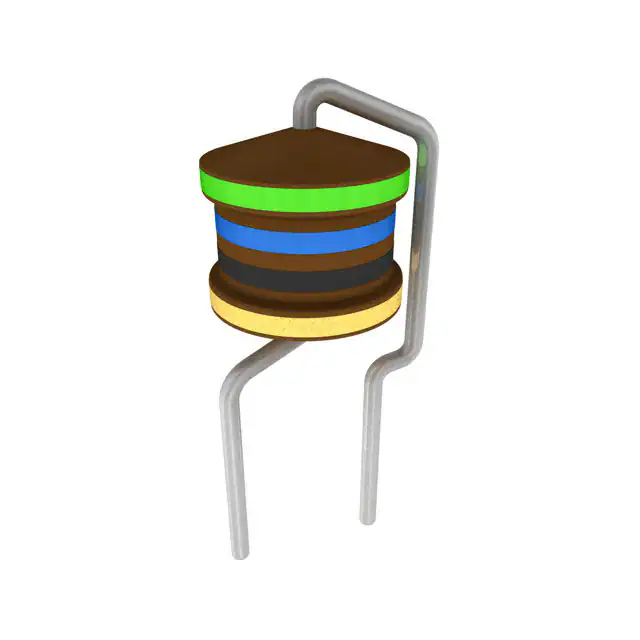

B82144B2563J000FIXED IND 56UH 1.6A 310 MOHM TH |
5,124 |
|
Datasheet
|
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±5% | 1.6 A | 1.3A | Unshielded | 310mOhm Max | 40 @ 79.6kHz | 6.8MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|

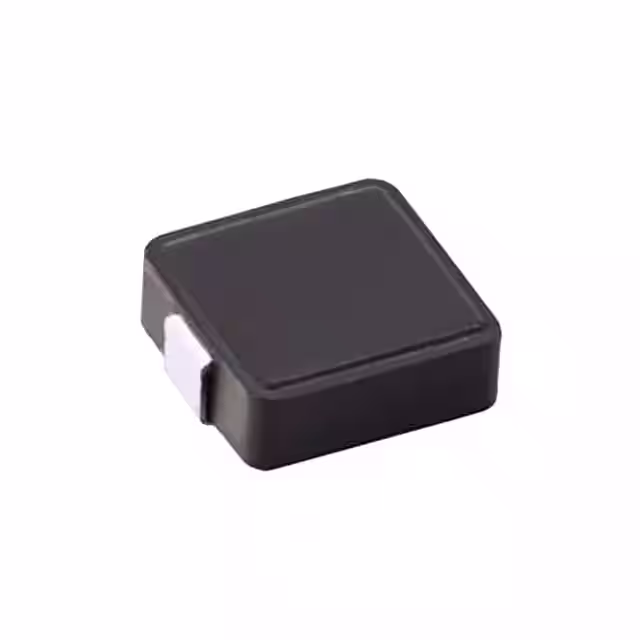

ASPI-4020HI-4R7M-TFIXED IND 4.7UH 2.8A 105MOHM SMD |
3,885 |
|
Datasheet
|
ASPI-4020HI | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Alloy | 4.7 µH | ±20% | 2.8 A | 3A | Shielded | 105mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|

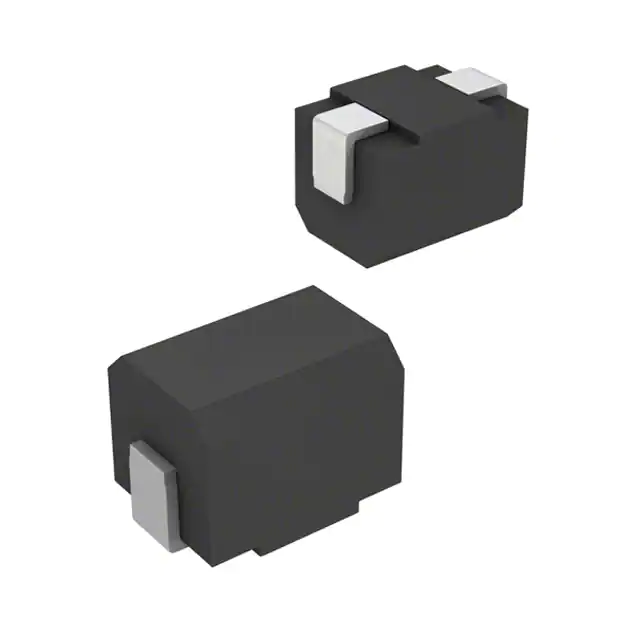

3613CR22MFIXED IND 220NH 665MA 250MOHM SM |
2,007 |
|
Datasheet
|
3613C, Sigma Inductors | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 220 nH | ±20% | 665 mA | - | Unshielded | 250mOhm Max | 40 @ 25.2MHz | 200MHz | - | -30°C ~ 100°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
ECS-MPIL0630-1R5MCFIXED IND 1.5UH 14A 12.1MOHM SMD |
1,890 |
|
Datasheet
|
ECS-MPIL0630 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 14 A | - | Shielded | 12.1mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.291" L x 0.260" W (7.40mm x 6.60mm) | 0.118" (3.00mm) |
|
|
BMRA000505202R2MA1FIXED IND 2.2UH 4A 45 MOHM SMD |
10,798 |
|
Datasheet
|
BMRA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 4 A | 6A | Shielded | 45mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.224" W (5.40mm x 5.70mm) | 0.079" (2.00mm) |
|

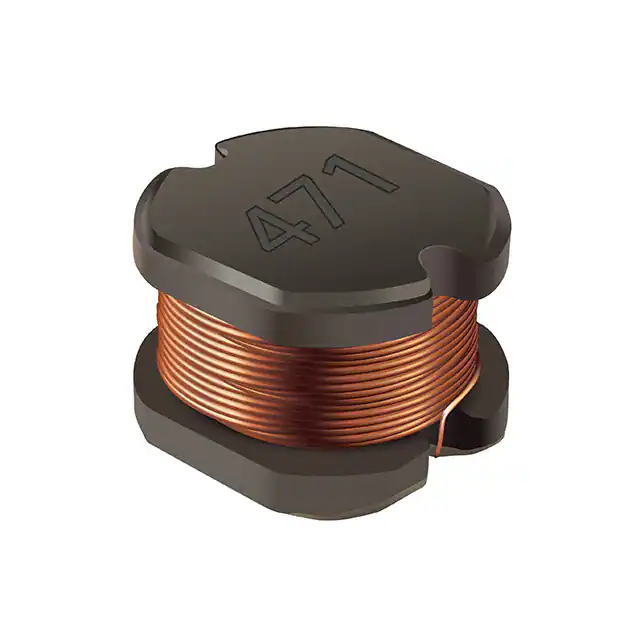

SDE0805A-4R7MFIXED IND 4.7UH 4.3A 38 MOHM SMD |
6,137 |
|
Datasheet
|
SDE0805A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 4.3 A | 4A | Unshielded | 38mOhm Max | - | 44.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
SDE0805A-8R2MFIXED IND 8.2UH 3.6A 52 MOHM SMD |
5,123 |
|
Datasheet
|
SDE0805A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 3.6 A | 3A | Unshielded | 52mOhm Max | - | 28.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
SDE0805A-3R3MFIXED IND 3.3UH 4.6A 32 MOHM SMD |
4,738 |
|
Datasheet
|
SDE0805A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 4.6 A | 4.5A | Unshielded | 32mOhm Max | - | 53.3MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
.jpg)
|
74479787215AFIXED IND 1.5UH 1.9A 87.5MOHM SM |
4,585 |
|
Datasheet
|
WE-PMI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1.5 µH | ±20% | 1.9 A | 1.1A | Shielded | 87.5mOhm Max | 25 @ 1MHz | 65MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
SDE0805A-220MFIXED IND 22UH 2.35A 110MOHM SMD |
3,413 |
|
Datasheet
|
SDE0805A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.35 A | 1.8A | Unshielded | 110mOhm Max | - | 16.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
SDE0805A-121KFIXED IND 120UH 1A 470 MOHM SMD |
2,945 |
|
Datasheet
|
SDE0805A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 1 A | 800mA | Unshielded | 470mOhm Max | - | 7.7MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
SDE0805A-180MFIXED IND 18UH 2.45A 100MOHM SMD |
2,639 |
|
Datasheet
|
SDE0805A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 2.45 A | 2A | Unshielded | 100mOhm Max | - | 17.6MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
SBC2-3R3-352FIXED IND 3.3UH 3.5A 30 MOHM TH |
2,432 |
|
Datasheet
|
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 3.5 A | 4A | Unshielded | 30mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.315" (8.00mm) |
|
|
SDE0805A-2R5MFIXED IND 2.5UH 5A 27 MOHM SMD |
2,281 |
|
Datasheet
|
SDE0805A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.5 µH | ±20% | 5 A | 5A | Unshielded | 27mOhm Max | - | 71.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
