Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLS5030EX-2R4N-DINDUCTORS FOR POWER CIRCUITS, AU |
1,729 |
|
Datasheet
|
VLS-EX-D | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.4 µH | ±30% | 5.1 A | 4.4A | Shielded | 25.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
|
0412CDMCCDS-2R2MCFIXED IND 2.2UH 2.7A 84MOHM SMD |
8,881 |
|
Datasheet
|
0412CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 2.7 A | 4A | Shielded | 84mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.047" (1.20mm) |
|
0412CDMCCDS-R47MCFIXED IND 470NH 6A 21 MOHM SMD |
8,836 |
|
Datasheet
|
0412CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 6 A | 9.7A | Shielded | 21mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.047" (1.20mm) |
|
HMLQ32251B-4R7MSFIXED IND 4.7UH 1.7A 195 OHM SMD |
5,655 |
|
Datasheet
|
HMLQ32251B | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Metal | 4.7 µH | ±20% | 1.7 A | 2.05A | Shielded | 195mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
0412CDMCCDS-1R0MCFIXED IND 1UH 4.1A 47 MOHM SMD |
2,895 |
|
Datasheet
|
0412CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 4.1 A | 7.1A | Shielded | 47mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.047" (1.20mm) |
|
0412CDMCCDS-R10MCFIXED IND 100NH 11.5A 7.2MOHM SM |
2,809 |
|
Datasheet
|
0412CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 100 nH | ±20% | 11.5 A | 16.5A | Shielded | 7.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.047" (1.20mm) |
|
B82144F2152K000FIXED IND 1.5UH 4.1A 0.045OHM TH |
1,833 |
|
Datasheet
|
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±10% | 4.1 A | 7.2A | Unshielded | 45mOhm Max | 60 @ 2.52MHz | 170MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|
RLB9012-561KLFIXED IND 560UH 640MA 1.4 OHM TH |
1,812 |
|
Datasheet
|
RLB9012 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 640 mA | - | Unshielded | 1.4Ohm Max | 20 @ 796kHz | 1.8MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
1229AS-H-150M=P3FIXED IND 15UH 720MA 408MOHM SMD |
1,702 |
|
Datasheet
|
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 720 mA | 590mA | Shielded | 408mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.146" L x 0.154" W (3.70mm x 3.90mm) | 0.047" (1.20mm) |
|
7447902FIXED IND 100NH 250MA 300MOHM SM |
1,563 |
|
Datasheet
|
WE-MI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Nickel Zinc Ferrite (NiZn) | 100 nH | ±10% | 250 mA | - | Unshielded | 300mOhm Max | 20 @ 25MHz | 225MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.043" (1.10mm) |
|
|
VLS5030EX-680M-DINDUCTORS FOR POWER CIRCUITS, AU |
1,451 |
|
Datasheet
|
VLS-EX-D | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±20% | 910 mA | 820mA | Shielded | 660mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
|
VLS5030EX-100M-DINDUCTORS FOR POWER CIRCUITS, AU |
1,235 |
|
Datasheet
|
VLS-EX-D | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 2.4 A | 2.1A | Shielded | 96mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
|
RLB9012-123KLFIXED IND 12MH 150MA 34.7 OHM TH |
1,205 |
|
Datasheet
|
RLB9012 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 12 mH | ±10% | 150 mA | - | Unshielded | 34.7Ohm Max | 15 @ 79kHz | 280kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
P0751.333NLFIXED IND 33UH 2A 120 MOHM SMD |
3,140 |
|
Datasheet
|
P0751NL | Nonstandard | Tray | Active | Wirewound | - | 33 µH | ±20% | 2 A | 2A | Unshielded | 120mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.45mm) |
|
|
P0751.473NLFIXED IND 47UH 1.6A 168 MOHM SMD |
3,035 |
|
Datasheet
|
P0751NL | Nonstandard | Tray | Active | Wirewound | - | 47 µH | ±20% | 1.6 A | 1.6A | Unshielded | 168mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
0420CDMCCDS-R10MCFIXED IND 100NH 17A 4 MOHM SMD |
17,300 |
|
Datasheet
|
0420CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 100 nH | ±20% | 17 A | 22A | Shielded | 4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|

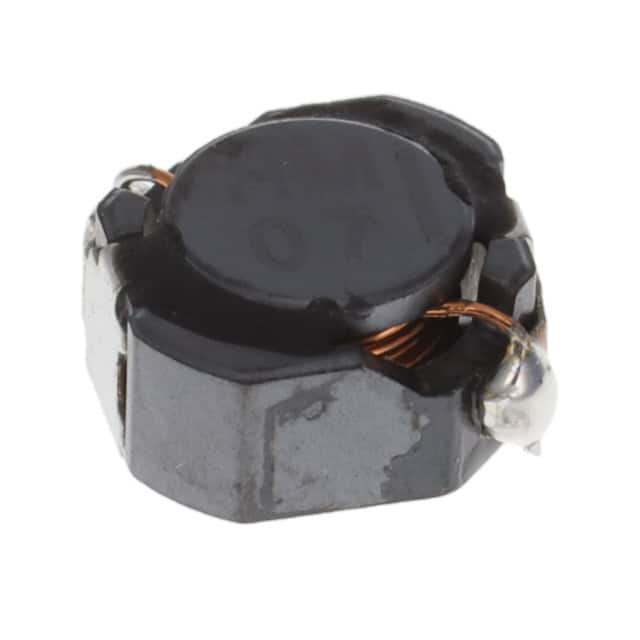

CDRH50D28BT150NP-150MCFIXED IND 15UH 1.38A 130MOHM SMD |
1,954 |
|
Datasheet
|
CDRH50D28B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 1.38 A | 1.4A | Shielded | 130mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|

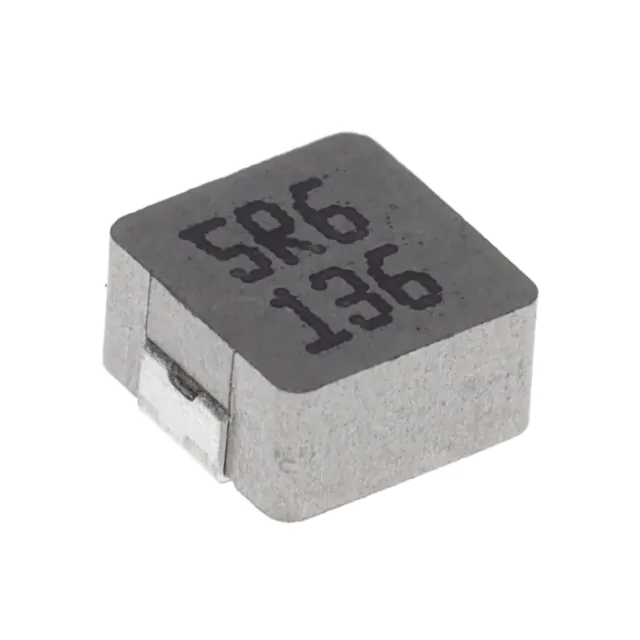

0530CDMCCDS-5R6MCFIXED IND 5.6UH 4A 54 MOHM SMD |
1,720 |
|
Datasheet
|
0530CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 5.6 µH | ±20% | 4 A | 3.6A | Shielded | 54mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
RLB9012-150KLFIXED IND 15UH 2.9A 56 MOHM TH |
1,149 |
|
Datasheet
|
RLB9012 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 2.9 A | - | Unshielded | 56mOhm Max | 50 @ 2.52MHz | 12MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
DR1050-180-RFIXED IND 18UH 3.39A 41 MOHM SMD |
392 |
|
Datasheet
|
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±30% | 3.39 A | 3.3A | Shielded | 41mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
