Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0518CDMCCDS-R33MCFIXED IND 330NH 14.5A 6.5MOHM SM |
3,812 |
|
Datasheet
|
0518CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 330 nH | ±20% | 14.5 A | 19A | Shielded | 6.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.071" (1.80mm) |
|

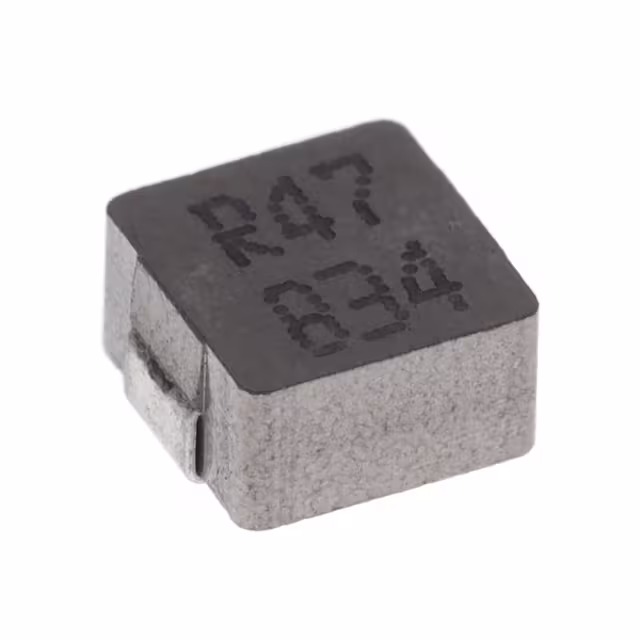

0530CDMCCDS-R47MCFIXED IND 470NH 10.5A 8.5MOHM SM |
3,342 |
|
Datasheet
|
0530CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 10.5 A | 18A | Shielded | 8.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|

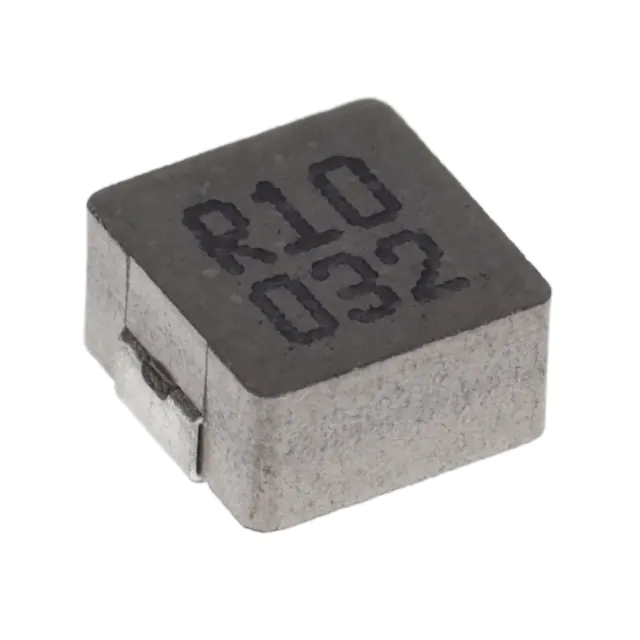

0530CDMCCDS-R10MCFIXED IND 100NH 21A 2.8MOHM SMD |
1,971 |
|
Datasheet
|
0530CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 100 nH | ±20% | 21 A | 24.5A | Shielded | 2.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|

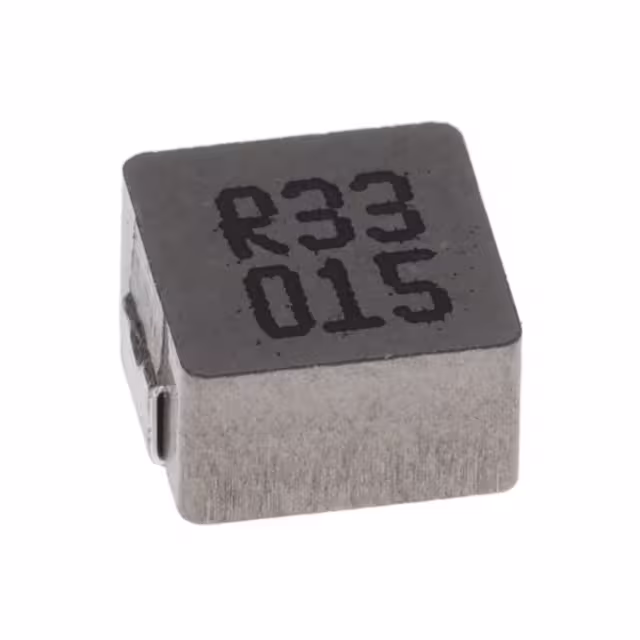

0530CDMCCDS-R33MCFIXED IND 330NH 13.5A 5MOHM SMD |
1,934 |
|
Datasheet
|
0530CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 330 nH | ±20% | 13.5 A | 16A | Shielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
P0752.104NLFIXED IND 100UH 1.2A 380MOHM SMD |
3,140 |
|
Datasheet
|
P0752NL | Nonstandard | Tray | Active | Wirewound | - | 100 µH | ±20% | 1.2 A | 1.2A | Unshielded | 380mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
|
P0752.334NLFIXED IND 330UH 600MA 1.02OHM SM |
3,140 |
|
Datasheet
|
P0752NL | Nonstandard | Tray | Active | Wirewound | - | 330 µH | ±20% | 600 mA | 600mA | Unshielded | 1.02Ohm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
PA4390.331AHLTFIXED IND 330NH 42A 0.4 MOHM SMD |
7,214 |
|
Datasheet
|
PA4390.XXXAHLT | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | - | 330 nH | ±15% | 42 A | 30A | Shielded | 0.4mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.256" W (10.00mm x 6.50mm) | 0.354" (9.00mm) |
|
ASPI-0403-100K-TFIXED IND 10UH 1.04A 182MOHM SMD |
3,755 |
|
Datasheet
|
ASPI-0403 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 1.04 A | - | Unshielded | 182mOhm Max | - | - | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
ASPI-0403-3R3M-TFIXED IND 3.3UH 1.44A 86.2 MOHM |
2,570 |
|
Datasheet
|
ASPI-0403 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.44 A | - | Unshielded | 86.2mOhm Max | - | - | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
DRC-V-2R2MFIXED IND 2.2UH 5.6A 0.021OHM TH |
2,449 |
|
Datasheet
|
DRC-V | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 5.6 A | 6.5A | Unshielded | 21mOhm Max | 20 @ 7.96MHz | 100MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Through Hole | Radial | 0.343" Dia (8.70mm) | 0.492" (12.50mm) |
|
CDRH6D28NP-680NCFIXED IND 68UH 650MA 304MOHM SMD |
2,225 |
|
Datasheet
|
CDRH6D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±30% | 650 mA | - | Shielded | 304mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.118" (3.00mm) |
|
1235AS-H-2R4M=P3FIXED IND 2.4UH 2.3A 65 MOHM SMD |
2,000 |
|
Datasheet
|
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.4 µH | ±20% | 2.3 A | 2.6A | Shielded | 65mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.071" (1.80mm) |
|
|
1235AS-H-3R3M=P3FIXED IND 3.3UH 2.1A 74 MOHM SMD |
1,977 |
|
Datasheet
|
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2.1 A | 2.3A | Shielded | 74mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.071" (1.80mm) |
|
SRR5018-5R0YFIXED IND 5UH 1.65A 60 MOHM SMD |
1,772 |
|
Datasheet
|
SRR5018 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5 µH | ±30% | 1.65 A | 1.8A | Shielded | 60mOhm Max | 7.9 @ 7.96MHz | 55MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.079" (2.00mm) |
|
|
1235AS-H-1R8N=P3FIXED IND 1.8UH 2.7A 56 MOHM SMD |
1,473 |
|
Datasheet
|
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±30% | 2.7 A | 3A | Shielded | 56mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.071" (1.80mm) |
|
SRR7032-330MFIXED IND 33UH 760MA 200MOHM SMD |
1,418 |
|
Datasheet
|
SRR7032 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 760 mA | 860mA | Shielded | 200mOhm Max | 23 @ 2.52MHz | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
|
SRR5028-151YFIXED IND 150UH 330MA 900MOHM SM |
1,310 |
|
Datasheet
|
SRR5028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±30% | 330 mA | 350mA | Shielded | 900mOhm Max | 7 @ 796kHz | 7.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.118" (3.00mm) |
|
|
SRR7032-2R2MFIXED IND 2.2UH 2.65A 22MOHM SMD |
1,097 |
|
Datasheet
|
SRR7032 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.65 A | 2.6A | Shielded | 22mOhm Max | 12 @ 7.96MHz | 70MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
|
SCRH104R-220FIXED IND 22UH 2.7A 73 MOHM SMD |
12,682 |
|
Datasheet
|
SCRH104R | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±30% | 2.7 A | 2.9A | Shielded | 73mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
LQW03AW2N8C00DFIXED IND 2.8NH 600MA 80MOHM SMD |
10,000 |
|
Datasheet
|
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 2.8 nH | ±0.2nH | 600 mA | - | Unshielded | 80mOhm Max | 44 @ 900MHz | 14GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.018" (0.45mm) |
