Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P0751.332NLFIXED IND 3.3UH 5.4A 18 MOHM SMD |
3,140 |
|
Datasheet
|
P0751NL | Nonstandard | Tray | Active | Wirewound | - | 3.3 µH | ±20% | 5.4 A | 6.4A | Unshielded | 18mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
|
P0751.103NLFIXED IND 10UH 3.8A 50 MOHM SMD |
3,110 |
|
Datasheet
|
P0751NL | Nonstandard | Tray | Active | Wirewound | - | 10 µH | ±20% | 3.8 A | 3.8A | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
|
P0751.683NLFIXED IND 68UH 1.4A 240 MOHM SMD |
1,225 |
|
Datasheet
|
P0751NL | Nonstandard | Tray | Active | Wirewound | - | 68 µH | ±20% | 1.4 A | 1.4A | Unshielded | 240mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|

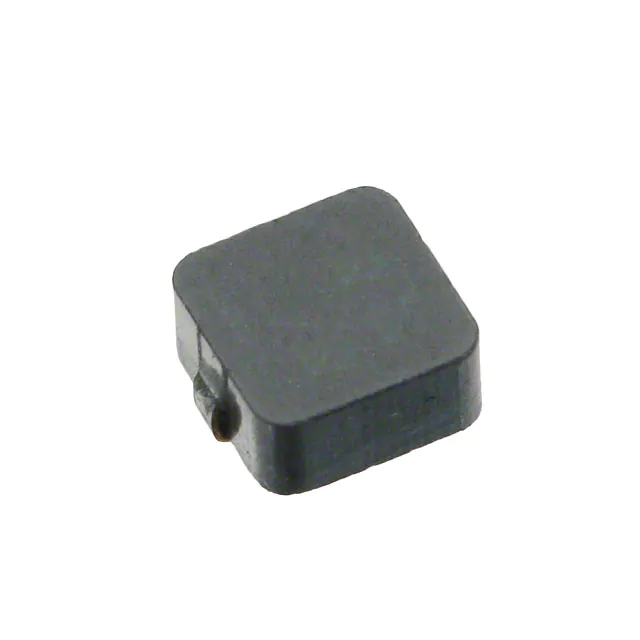

IHLP1212AEERR68M11FIXED IND 680NH 5.4A 22 MOHM SMD |
11,970 |
|
Datasheet
|
IHLP-1212AE-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 5.4 A | 5.5A | Shielded | 22mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.144" L x 0.118" W (3.65mm x 3.00mm) | 0.059" (1.50mm) |
|
L06035R6CGWTRFIXED IND 5.6NH 300MA 250MOHM SM |
7,211 |
|
Datasheet
|
Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 5.6 nH | ±0.2nH | 300 mA | - | Unshielded | 250mOhm Max | 26 @ 450MHz | 5GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
|

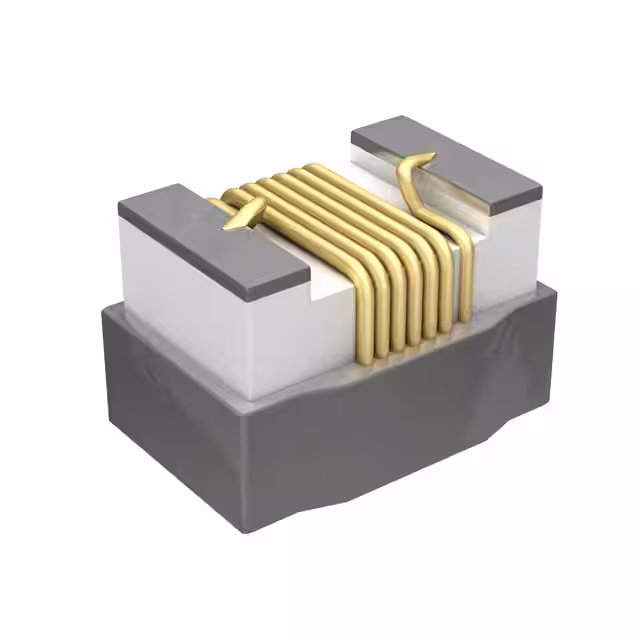

B82498F3331G001FIXED IND 330NH 220MA 1.5OHM SMD |
6,629 |
|
Datasheet
|
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 330 nH | ±2% | 220 mA | - | Unshielded | 1.5Ohm Max | 45 @ 250MHz | 800MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|

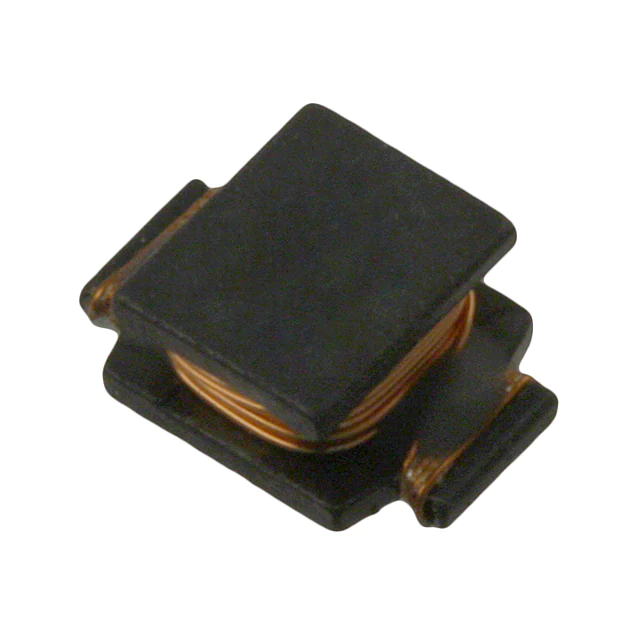

SDR0703-4R7MLFIXED IND 4.7UH 1.5A 100MOHM SMD |
6,188 |
|
Datasheet
|
SDR0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.5 A | 2.1A | Unshielded | 100mOhm Max | 20 @ 7.96MHz | 60MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.177" W (6.50mm x 4.50mm) | 0.106" (2.70mm) |
|
DFE2HCAHR33MJ0LFIXED IND 330NH 4.9A 21 MOHM SMD |
5,844 |
|
Datasheet
|
DFE2H | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 330 nH | ±20% | 4.9 A | 5.8A | Shielded | 21mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|

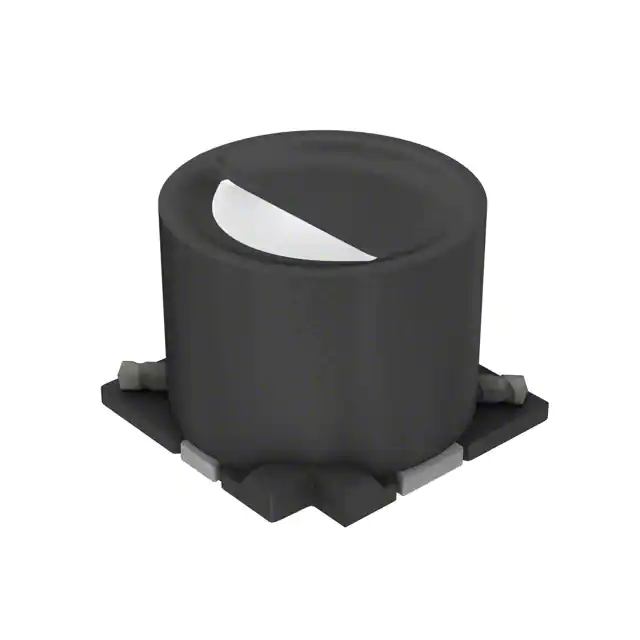

SLF6045T-3R3N2R8-3PFFIXED IND 3.3UH 3.4A 27.95 MOHM |
3,553 |
|
Datasheet
|
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 3.4 A | 2.8A | Shielded | 27.95mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.189" (4.80mm) |
|
|
SDR0703-391KLFIXED IND 390UH 140MA 6.2OHM SMD |
1,835 |
|
Datasheet
|
SDR0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 140 mA | 180mA | Unshielded | 6.2Ohm Max | 36 @ 796kHz | 5.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.177" W (6.50mm x 4.50mm) | 0.106" (2.70mm) |
|
744764015FIXED IND 1.5UH 370MA 850MOHM SM |
1,640 |
|
Datasheet
|
WE-GF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±10% | 370 mA | - | Unshielded | 850mOhm Max | 30 @ 7.96MHz | 250MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|

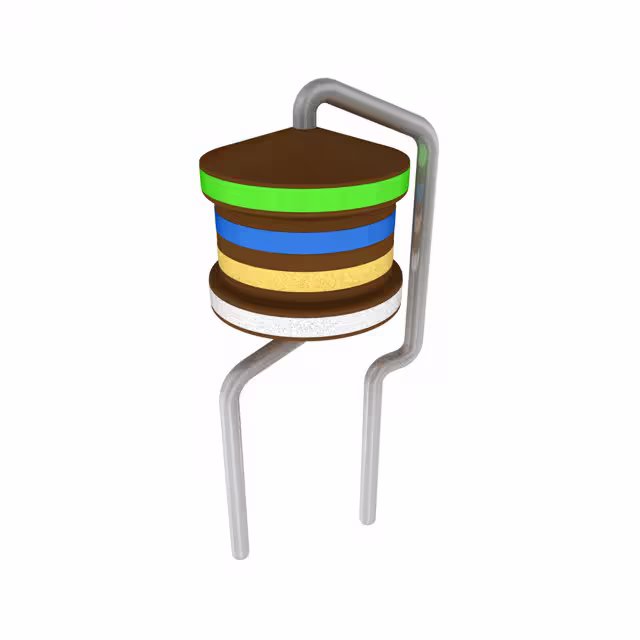

B82144B2562K000FIXED IND 5.6UH 2.95A 90 MOHM TH |
1,584 |
|
Datasheet
|
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±10% | 2.95 A | 3.75A | Unshielded | 90mOhm Max | 50 @ 2.52MHz | 45MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|
|
DFE2HCAHR68MJ0LFIXED IND 680NH 3.6A 31 MOHM SMD |
1,541 |
|
Datasheet
|
DFE2H | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 680 nH | ±20% | 3.6 A | 4.4A | Shielded | 31mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
SBCP-47HY820BFIXED IND 82UH 530MA 519 MOHM TH |
5,536 |
|
Datasheet
|
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 530 mA | 550mA | Unshielded | 519mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.335" (8.50mm) |
|

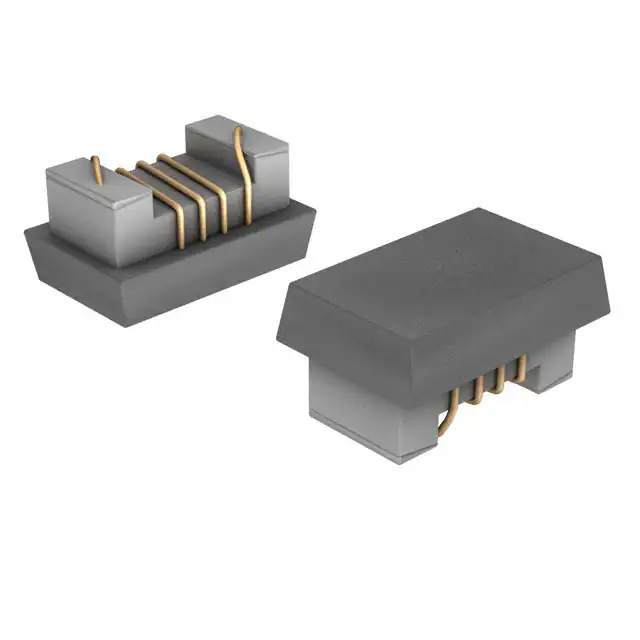

744917182FIXED IND 82NH 510MA 460MOHM SMD |
5,284 |
|
Datasheet
|
WE-KI HC | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 82 nH | ±2% | 510 mA | - | Unshielded | 460mOhm Max | 35 @ 250MHz | 1.8GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.039" (1.00mm) |
|
|
744917220FIXED IND 200NH 280MA 2 OHM SMD |
2,885 |
|
Datasheet
|
WE-KI HC | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 200 nH | ±2% | 280 mA | - | Unshielded | 2Ohm Max | 38 @ 250MHz | 1.25GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.039" (1.00mm) |
|
|
VLS5030EX-150M-DINDUCTORS FOR POWER CIRCUITS, AU |
1,945 |
|
Datasheet
|
VLS-EX-D | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 1.9 A | 1.6A | Shielded | 144mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
|
VLS5030EX-470M-DINDUCTORS FOR POWER CIRCUITS, AU |
1,844 |
|
Datasheet
|
VLS-EX-D | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 1.1 A | 990mA | Shielded | 420mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
MWSA0518S-2R2MTFIXED IND 2.2UH 5A 35 MOHM SMD |
1,841 |
|
Datasheet
|
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 2.2 µH | ±20% | 5 A | 6A | Shielded | 35mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.071" (1.80mm) |
|
|
VLS5030EX-151M-DINDUCTORS FOR POWER CIRCUITS, AU |
1,816 |
|
Datasheet
|
VLS-EX-D | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 µH | ±20% | 630 mA | 540mA | Shielded | 1.392Ohm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
