Trimmers, Variable Capacitors(1700)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance Range | Adjustment Type | Voltage - Rated | Dielectric Material | Q @ Freq | Size / Dimension | Height - Seated (Max) | Operating Temperature | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

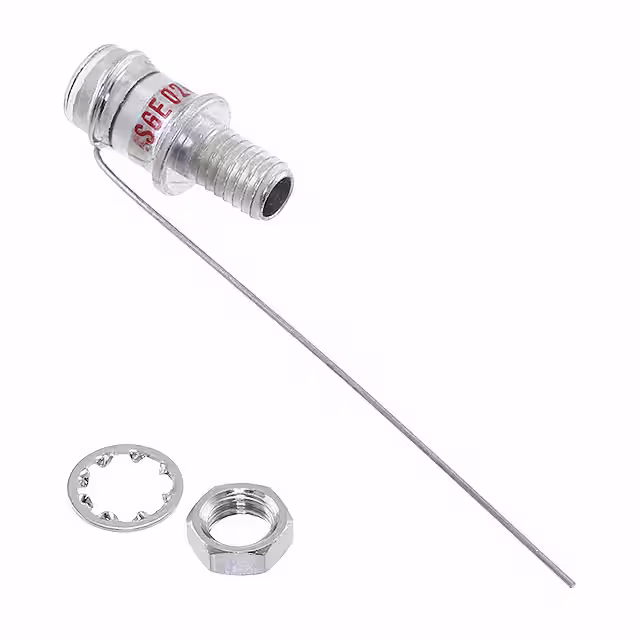

GHR5R500CAP TRIMMER 0.8-5.5PF 750V |
27 |
|
Datasheet
|
PISTONCAP® | Bulk | Obsolete | 0.8 ~ 5.5pF | Top | 750 V | Glass | 1000 @ 20MHz | 0.312" Dia (7.92mm) | 0.359" (9.12mm) | -55°C ~ 125°C | User Defined | Sealed |
|

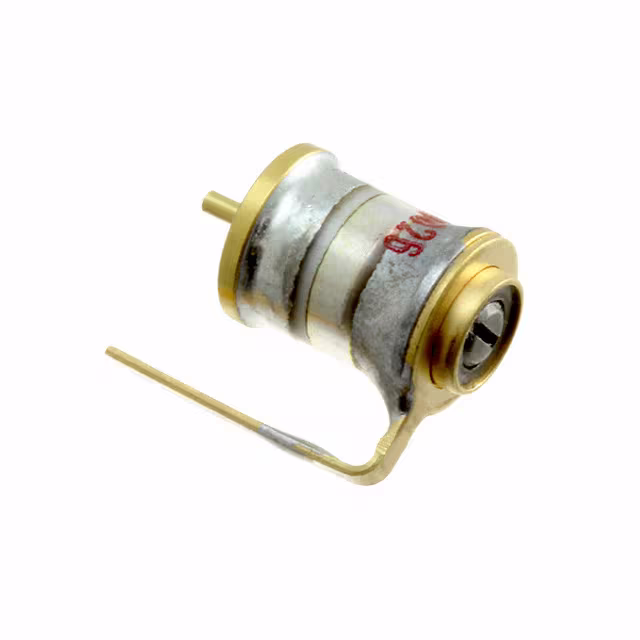

GDT20026CAP TRIMMER 1.5-20PF 250V TH |
87 |
|
Datasheet
|
PISTONCAP® | Bulk | Obsolete | 1.5 ~ 20pF | Top | 250 V | Glass | 800 @ 20MHz | 0.311" Dia (7.90mm) | 0.433" (11.00mm) | -55°C ~ 125°C | Through Hole | Sealed |
|

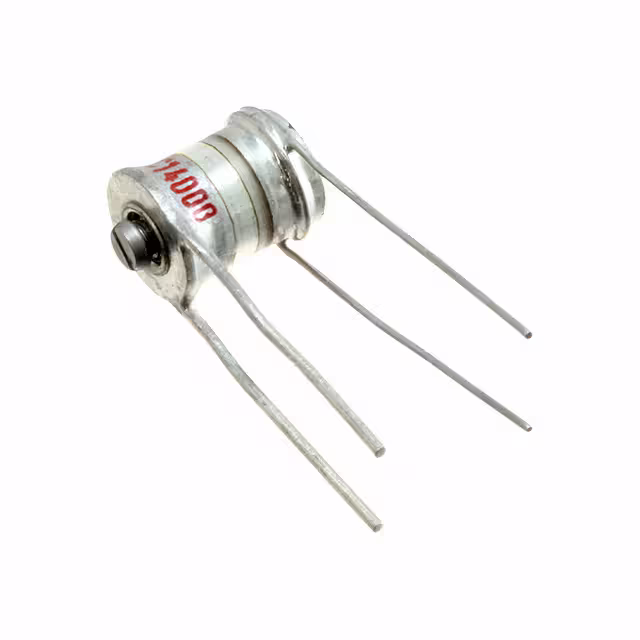

GEC14000CAP TRIMMER 1-14PF 750V TH |
52 |
|
Datasheet
|
PISTONCAP® | Bulk | Obsolete | 1 ~ 14pF | Side | 750 V | Glass | 500 @ 20MHz | 0.312" Dia (7.92mm) | 0.391" (9.93mm) | -55°C ~ 125°C | Through Hole | General Purpose |
|

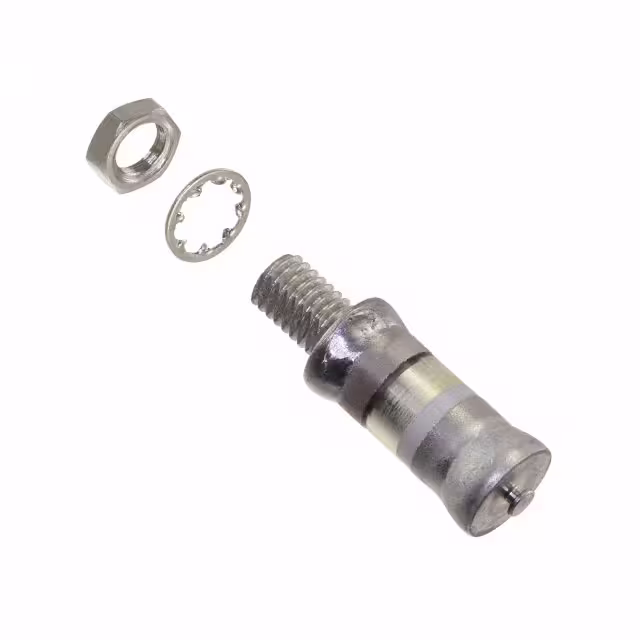

GER28000CAP TRIMMER 1-28PF 1000V |
95 |
|
Datasheet
|
PISTONCAP® | Bulk | Obsolete | 1 ~ 28pF | Top | 1000 V | Glass | 350 @ 20MHz | 0.312" Dia (7.92mm) | 0.703" (17.86mm) | -55°C ~ 125°C | User Defined | General Purpose |
|

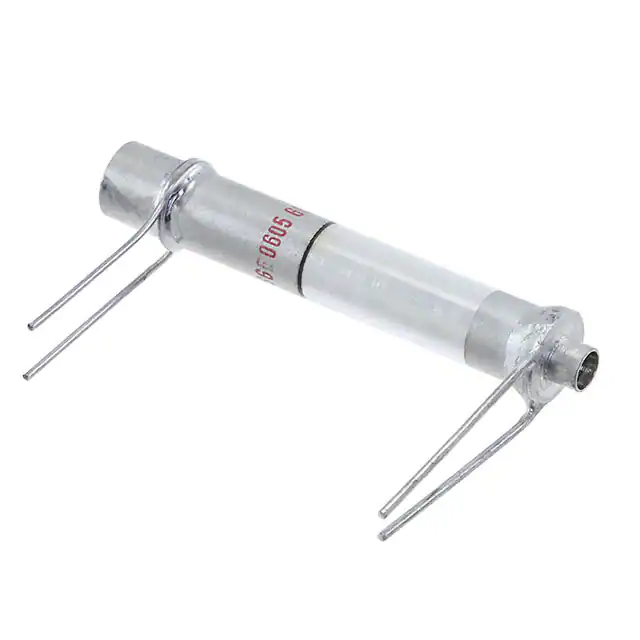

GGN30000CAP TRIMMER 0.8-30PF 750V TH |
55 |
|
Datasheet
|
PISTONCAP® | Bulk | Obsolete | 0.8 ~ 30pF | Side | 750 V | Glass | 350 @ 20MHz | 0.312" Dia (7.92mm) | 1.640" (41.66mm) | -55°C ~ 125°C | Through Hole | General Purpose |
|

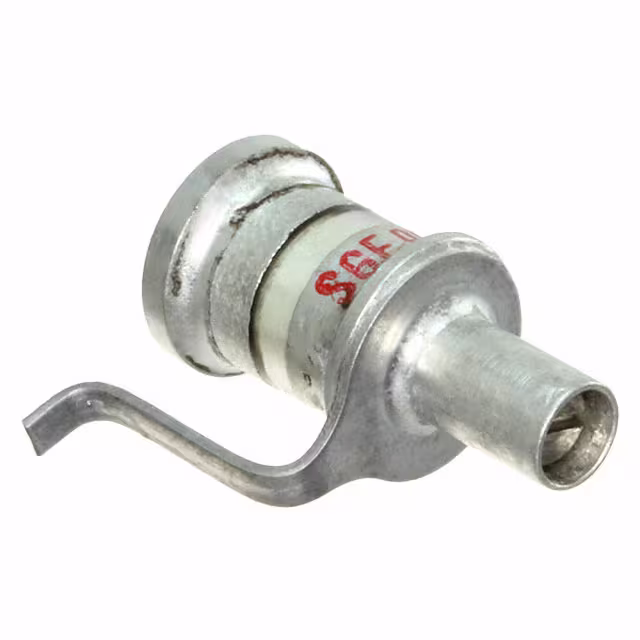

GGV4R531CAP TRIMMER 0.8-4.5PF 750V SMD |
100 |
|
Datasheet
|
PISTONCAP® | Bulk | Obsolete | 0.8 ~ 4.5pF | Top | 750 V | Glass | 500 @ 20MHz | 0.312" Dia (7.92mm) | 0.383" (9.73mm) | -55°C ~ 125°C | Surface Mount | Sealed |
|
|
GHN38000CAP TRIMMER 0.8-38PF 750V TH |
37 |
|
Datasheet
|
PISTONCAP® | Bulk | Obsolete | 0.8 ~ 38pF | Side | 750 V | Glass | 500 @ 20MHz | 0.312" Dia (7.92mm) | 1.640" (41.66mm) | -55°C ~ 125°C | Through Hole | General Purpose |
|

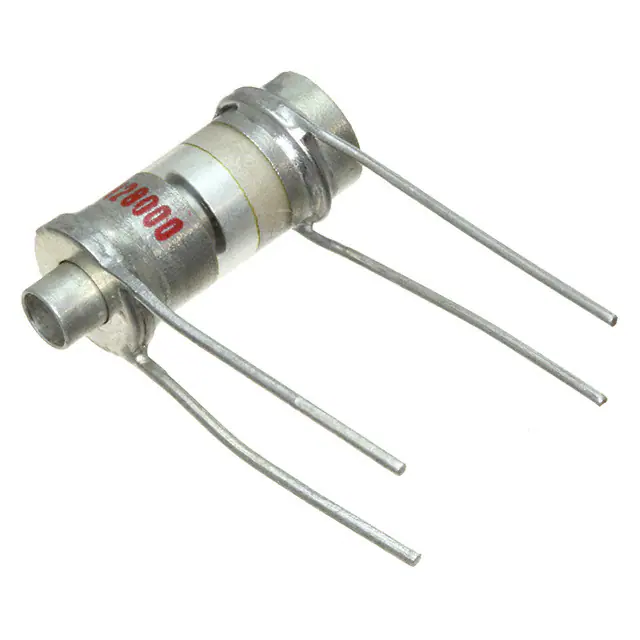

GEN28000CAP TRIMMER 1-28PF 750V TH |
43 |
|
Datasheet
|
PISTONCAP® | Bulk | Obsolete | 1 ~ 28pF | Side | 750 V | Glass | 350 @ 20MHz | 0.312" Dia (7.92mm) | 0.656" (16.66mm) | -55°C ~ 125°C | Through Hole | General Purpose |
|

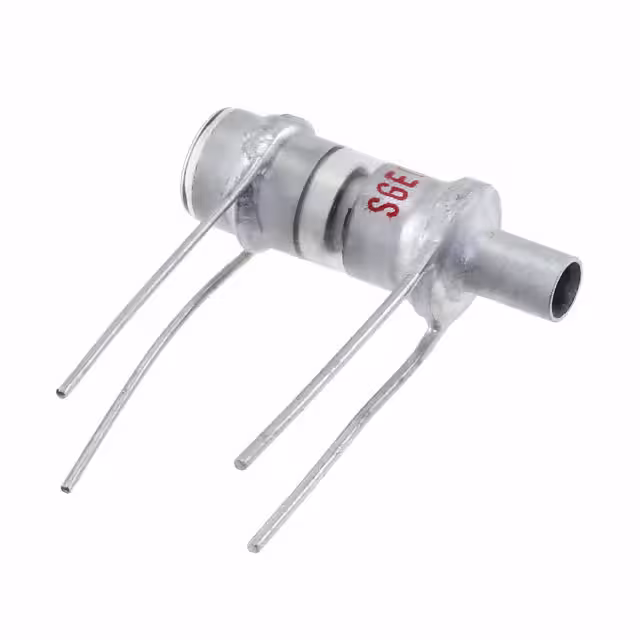

GGV8R500CAP TRIMMER 0.8-8.5PF 1250V TH |
20 |
|
Datasheet
|
PISTONCAP® | Bulk | Obsolete | 0.8 ~ 8.5pF | Side | 1250 V | Glass | 500 @ 20MHz | 0.312" Dia (7.92mm) | 0.641" (16.28mm) | -55°C ~ 125°C | Through Hole | Sealed |
|
GSG904CAP TRIMMER 0.7-9PF 750V |
37 |
|
Datasheet
|
PISTONCAP® | Bulk | Obsolete | 0.7 ~ 9pF | - | 750 V | Glass | 500 @ 20MHz | 0.375" Dia (9.52mm) | 0.656" (16.66mm) | -55°C ~ 125°C | User Defined | General Purpose |
|

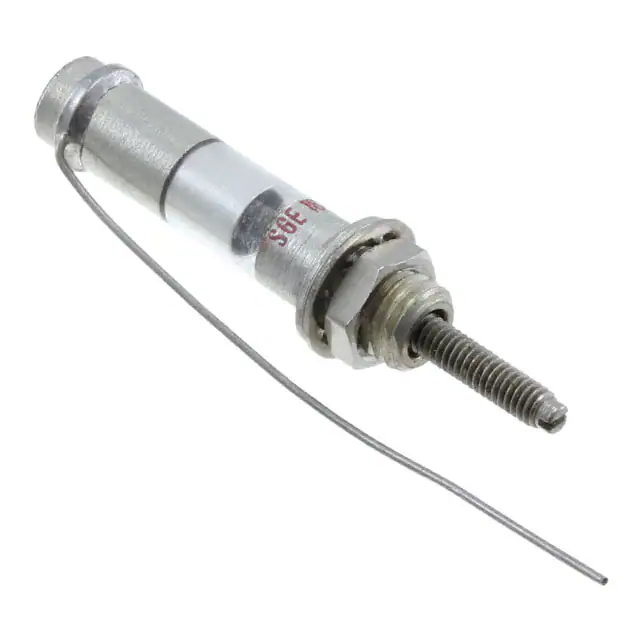

GSG901CAP TRIMMER 0.6-14PF 750V |
8 |
|
Datasheet
|
PISTONCAP® | Bulk | Obsolete | 0.6 ~ 14pF | - | 750 V | Glass | 500 @ 20MHz | 0.375" Dia (9.52mm) | 1.000" (25.40mm) | -55°C ~ 125°C | User Defined | General Purpose |
|
GGV8R533CAP TRIMMER 0.8-8.5PF 1250V SMD |
8 |
|
Datasheet
|
PISTONCAP® | Bulk | Obsolete | 0.8 ~ 8.5pF | Side | 1250 V | Glass | 500 @ 20MHz | 0.312" Dia (7.92mm) | 0.673" (17.10mm) | -55°C ~ 125°C | Surface Mount | Sealed |
|

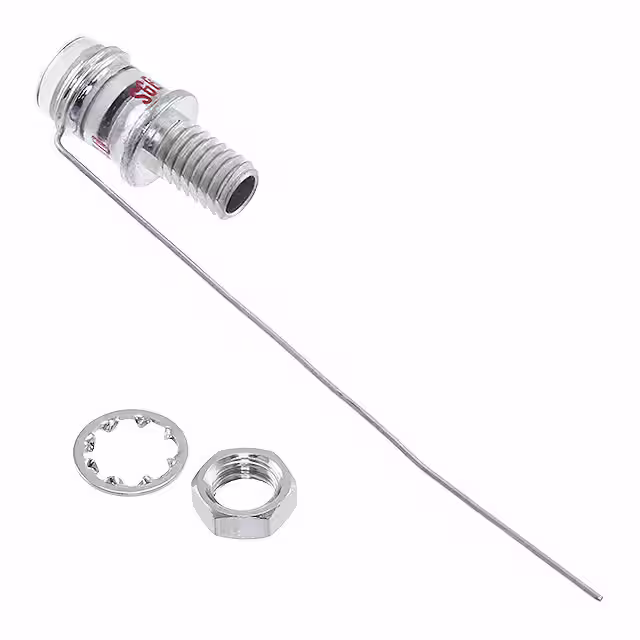

GGR4R500CAP TRIMMER 0.8-4.5PF 750V |
99 |
|
Datasheet
|
PISTONCAP® | Bulk | Obsolete | 0.8 ~ 4.5pF | Side | 750 V | Glass | 500 @ 20MHz | 0.312" Dia (7.92mm) | 0.359" (9.12mm) | -55°C ~ 125°C | User Defined | General Purpose |
|
|
GHL16000CAP TRIMMER 0.8-16PF 1250V TH |
7 |
|
Datasheet
|
PISTONCAP® | Bulk | Obsolete | 0.8 ~ 16pF | Side | 1250 V | Glass | 800 @ 20MHz | 0.312" Dia (7.92mm) | 1.109" (28.17mm) | -55°C ~ 125°C | Through Hole | Sealed |
|

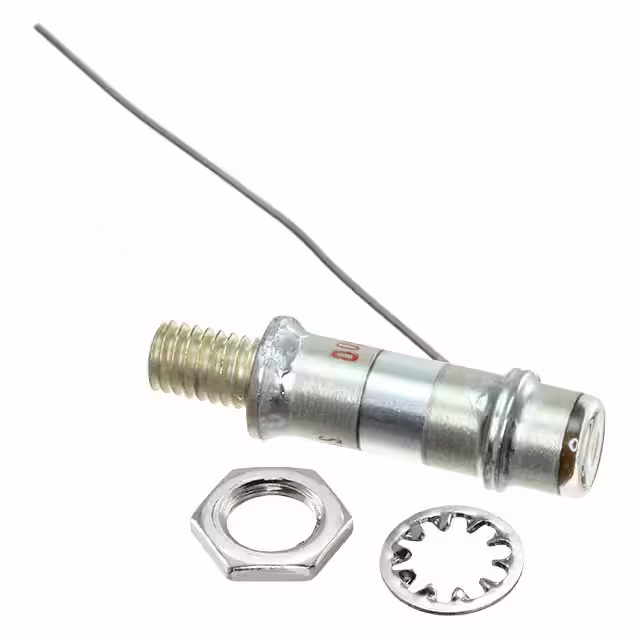

GGR12000CAP TRIMMER 0.8-12PF 1250V |
8 |
|
Datasheet
|
PISTONCAP® | Bulk | Obsolete | 0.8 ~ 12pF | Side | 1250 V | Glass | 500 @ 20MHz | 0.312" Dia (7.92mm) | 0.812" (20.62mm) | -55°C ~ 125°C | User Defined | General Purpose |
|

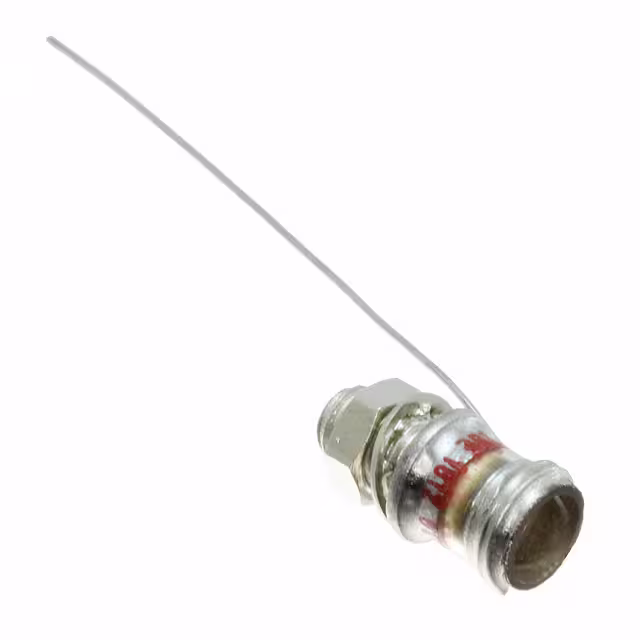

GQP1R800CAP TRIM 0.6-1.8PF 750V PNL MNT |
26 |
|
Datasheet
|
PISTONCAP® | Bulk | Obsolete | 0.6 ~ 1.8pF | Top | 750 V | Quartz | 1500 @ 20MHz | 0.312" Dia (7.92mm) | 0.297" (7.54mm) | -55°C ~ 150°C | Panel Mount | General Purpose |
|

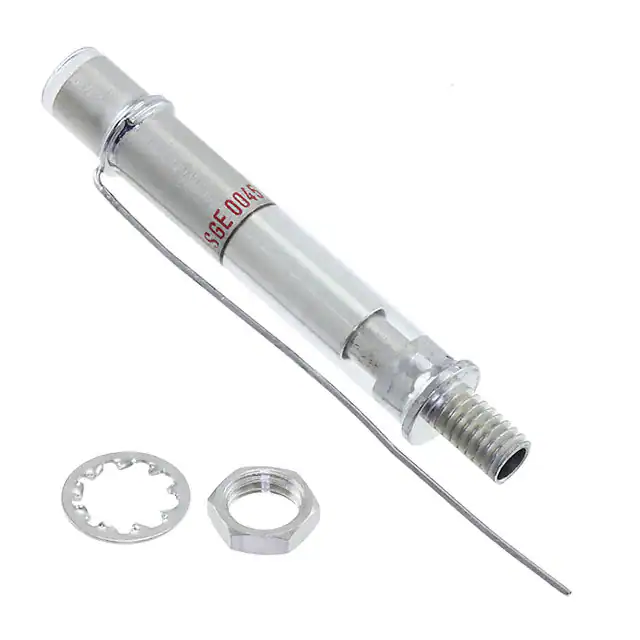

GGR30000CAP TRIMMER 0.8-30PF 1250V |
19 |
|
Datasheet
|
PISTONCAP® | Bulk | Obsolete | 0.8 ~ 30pF | Side | 1250 V | Glass | 350 @ 20MHz | 0.312" Dia (7.92mm) | 1.656" (42.06mm) | -55°C ~ 125°C | User Defined | General Purpose |
|
|
37270-001GIGA-TRIM 37270-001 |
8 |
|
- |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - |
|
GQL1R800CAP TRIMMER 0.6-1.8PF 750V TH |
24 |
|
Datasheet
|
PISTONCAP® | Bulk | Obsolete | 0.6 ~ 1.8pF | Side | 750 V | Quartz | 1500 @ 20MHz | 0.312" Dia (7.92mm) | 0.656" (16.66mm) | -55°C ~ 150°C | Through Hole | Sealed |
|
PC52H230CAP TRIMMER QPL PISTONCAP |
25 |
|
Datasheet
|
PISTONCAP® | Bulk | Obsolete | - | - | - | Glass | 700 @ 20MHz | - | - | -55°C ~ 125°C | - | - |
