Trimmers, Variable Capacitors(1700)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance Range | Adjustment Type | Voltage - Rated | Dielectric Material | Q @ Freq | Size / Dimension | Height - Seated (Max) | Operating Temperature | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JFD-VCJ1616MCAP TRIM 0.5-5PF 2500V PNL MNT |
7 |
|
Datasheet
|
PISTONCAP® | Bulk | Obsolete | 0.5 ~ 5pF | - | 2500 V | - | 2000 @ 1MHz | 0.375" Dia (9.52mm) | 0.656" (16.66mm) | -55°C ~ 200°C | Panel Mount | General Purpose |
|
GQL16000CAP TRIMMER 0.8-16PF 1250V TH |
22 |
|
Datasheet
|
PISTONCAP® | Bulk | Obsolete | 0.8 ~ 16pF | Side | 1250 V | Quartz | 1500 @ 20MHz | 0.312" Dia (7.92mm) | 1.953" (49.61mm) | -55°C ~ 150°C | Through Hole | Sealed |
|

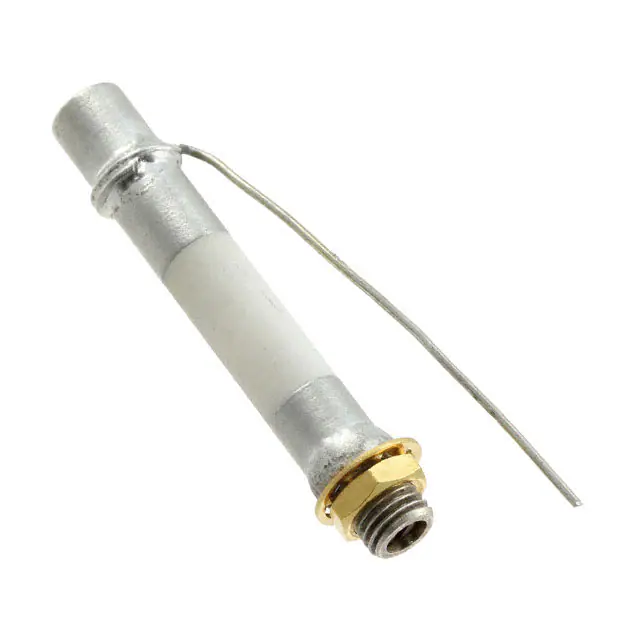

SGNMNC1103CAP TRIM 1-10PF 3000V CHAS MNT |
7 |
|
Datasheet
|
SGNM-Series 1 | Bulk | Obsolete | 1 ~ 10pF | - | 3000 V | Ceramic | 1700 @ 25MHz | 0.270" Dia (6.86mm) | - | -55°C ~ 125°C | Chassis Mount | Non-Magnetic, Sealed |
|
|
SGNMNC1054CAP TRIM 0.5-5PF 4000V CHAS MNT |
12 |
|
Datasheet
|
SGNM-Series 1 | Bulk | Obsolete | 0.5 ~ 5pF | - | 4000 V | Ceramic | 2000 @ 25MHz | 0.270" Dia (6.86mm) | - | -55°C ~ 125°C | Chassis Mount | Non-Magnetic, Sealed |
|
|
SGNMNC1156CAP TRIM 1.5-15PF 6000V CHAS MNT |
2 |
|
Datasheet
|
SGNM-Series 1 | Bulk | Obsolete | 1.5 ~ 15pF | - | 6000 V | Ceramic | 1500 @ 25MHz | 0.270" Dia (6.86mm) | - | -55°C ~ 125°C | Chassis Mount | Non-Magnetic, Sealed |
|
|
SGNMNC1056CAP TRIM 0.5-5PF 6000V CHAS MNT |
21 |
|
Datasheet
|
SGNM-Series 1 | Bulk | Obsolete | 0.5 ~ 5pF | - | 6000 V | Ceramic | 2000 @ 25MHz | 0.270" Dia (6.86mm) | - | -55°C ~ 125°C | Chassis Mount | Non-Magnetic, Sealed |
|
|
SGNMNC1059CAP TRIM 0.5-5PF 8750V CHAS MNT |
16 |
|
Datasheet
|
SGNM-Series 1 | Bulk | Obsolete | 0.5 ~ 5pF | - | 8750 V | Ceramic | 2000 @ 25MHz | 0.270" Dia (6.86mm) | - | -55°C ~ 125°C | Chassis Mount | Non-Magnetic, Sealed |
|
SGNMNC2106KCAP TRIM 1-10PF 6000V CHAS MNT |
23 |
|
Datasheet
|
SGNM-Series 2 | Bulk | Obsolete | 1 ~ 10pF | - | 6000 V | Ceramic | 3000 @ 25MHz | 0.550" Dia (13.97mm) | - | -55°C ~ 125°C | Chassis Mount | Non-Magnetic, Sealed |
|
SGNMNC31006KCAP TRIM 10-100PF 6000V CHAS MNT |
4 |
|
Datasheet
|
SGNM-Series 3 | Bulk | Obsolete | 10 ~ 100pF | - | 6000 V | Ceramic | 500 @ 25MHz | 0.710" Dia (18.03mm) | - | -55°C ~ 125°C | Chassis Mount | Non-Magnetic, Sealed |
|
AT 27268CAP TRIMMER 0.3-1.2PF 500V SMD |
85 |
|
Datasheet
|
Sapphire Trimmers | Bulk | Active | 0.3 ~ 1.2pF | Top | 500 V | Sapphire | 5000 @ 250MHz | 0.075" Dia (1.90mm) | 0.230" (5.80mm) | -55°C ~ 125°C | Surface Mount | General Purpose |
|
AT 27260CAP TRIMMER 0.3-1.2PF 500V TH |
12 |
|
Datasheet
|
Sapphire Trimmers | Bulk | Active | 0.3 ~ 1.2pF | Top | 500 V | Sapphire | 5000 @ 250MHz | 0.075" Dia (1.90mm) | 0.230" (5.80mm) | -55°C ~ 125°C | Through Hole | General Purpose |
|
AT 27274CAP TRIMMER 0.6-4.5PF 500V TH |
35 |
|
Datasheet
|
Sapphire Trimmers | Tray | Active | 0.6 ~ 4.5pF | Top | 500 V | Sapphire | 3000 @ 250MHz | 0.118" Dia (3.00mm) | 0.315" (8.00mm) | -55°C ~ 125°C | Through Hole | General Purpose |
|
BFC280800006CAP TRIMMER 2.5-22PF 250V TH |
0 |
|
Datasheet
|
BFC2 808 | Bulk | Active | 2.5 ~ 22pF | Top | 250 V | Polypropylene (PP) | - | 0.299" Dia (7.60mm) | 0.394" (10.00mm) | -40°C ~ 70°C | Through Hole | General Purpose |
|
BFC280831659CAP TRIMMER 5.5-65PF 150V TH |
0 |
|
Datasheet
|
BFC2 808 | Bulk | Active | 5.5 ~ 65pF | Top and Bottom | 150 V | Polypropylene (PP) | - | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | -40°C ~ 70°C | Through Hole | General Purpose |
|
BFC280832659CAP TRIMMER 5.5-65PF 150V TH |
0 |
|
Datasheet
|
BFC2 808 | Bulk | Active | 5.5 ~ 65pF | Top and Bottom | 150 V | Polypropylene (PP) | - | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | -40°C ~ 70°C | Through Hole | General Purpose |
|
5202CAP TRIMMER 0.8-10PF 250V PNL MT |
0 |
|
Datasheet
|
- | Bulk | Active | 0.8 ~ 10pF | Top | 250 V | Air | 5000 @ 100MHz | 0.280" Dia (7.11mm) | - | -65°C ~ 125°C | Panel Mount | Sealed |
|
|
KM4HVCAP TRIMMER 0.5-4PF 1000V SMD |
0 |
|
Datasheet
|
K_HV | Bulk | Active | 0.5 ~ 4pF | Top | 1000 V | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.230" Dia (5.84mm) | 0.470" (11.94mm) | -65°C ~ 125°C | Surface Mount | Sealed |
|
AM25HVCAP TRIMMER 1-23PF 750V SMD |
0 |
|
Datasheet
|
A_HV | Bulk | Active | 1 ~ 23pF | Top | 750 V | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.300" Dia (7.62mm) | 0.480" (12.19mm) | -65°C ~ 125°C | Surface Mount | General Purpose |
|
|
NMTM120CEKCAP GLASS TRIMMER 1-120PF 1KV PM |
0 |
|
Datasheet
|
TM | Bulk | Active | 2 ~ 120pF | Side | 1000 V | - | 600 @ 25MHz | 0.310" Dia (7.87mm) | 1.760" (44.70mm) | -55°C ~ 125°C | Panel Mount | General Purpose |
|
NMNT23-12ECAP TRIMMER 3-23PF 6000V PNL MNT |
0 |
|
Datasheet
|
NT | Bulk | Active | 3 ~ 23pF | Top | 6000 V | Polytetrafluoroethylene (PTFE) | - | 0.580" Dia (14.73mm) | 1.845" (46.86mm) | -65°C ~ 125°C | Panel Mount | Non-Magnetic |
